SC-B MKII Splice Trays in Black with 12 3A Moulded Splice Holder Fins

Art.-No. 857-40685

| TRAY-SC-B-MKII-BK-2X3A-12

|

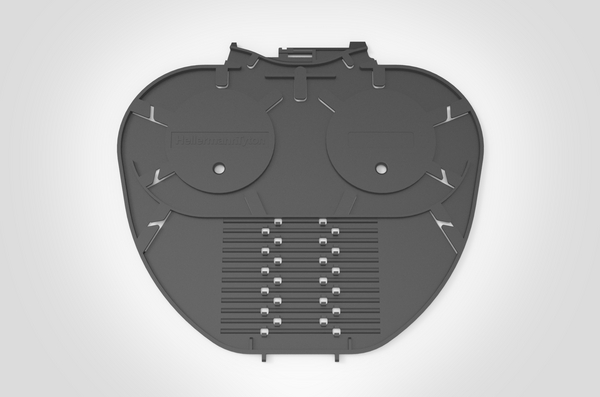

IR Single Circuit SC-B MKII Tray (front view)

IR Single Circuit SC-B MKII Tray (top view)

Positive fibre management minimum bend radius 15mm
2 fibre entry ports
Moulded splice holder fins for heatshrink (3A)
Splice holders positioned at the front of the tray for ease of fibre measurement during installation
Maximum splice capacity of 12 fibres

Add to watchlist

Distributors near you

Downloads

More products in this product group:

Integrated Routing Fibre Optic Splice Tray

Base Data

Colour	Black (BK)
Content	12 x IR Single Circuit MKII Black SC-B Heatshrink (3A) Trays
Material	Acrylonitrile Butadiene Styrene (ABS)
PART DESCRIPTION	TRAY-SC-B-MKII-BK-2X3A-12
Package Content	12pcs.
Package Content packed in	bag
Product Family	IR Single Circuit SC-B MKII
Product Group	Integrated Routing Fibre Optic Splice Tray
Qty Trays	12
Short Description	SC-B MKII Splice Trays in Black with 12 3A Moulded Splice Holder Fins
Technical Description	The Integrated Routing (IR) single circuit SC-B MKII tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 150 x 124 x 3.5mm. The IR single circuit tray moulded splice protector holders are positioned at the front of the tray for ease of fibre measurement and installation. The maximum splice capacity of the tray is based on 12 heatshrink (3A) splice protectors up to 60mm long. The IR single circuit tray is suitable for use in the UFC-IR, FDN-IR or FML-IR closures.
Type	TRAY-SC-B-MKII-BK-2X3A-12
Type of Tray	Integrated Routing SC-B MKII

Product Dimensions

Depth (D)	3.5mm
Height (H)	124mm
Width (W)	150mm

Specifications

ROHS compliant	Yes
Specifications

Logistics and Packaging

Packaging 1 - Height (m)	0.381m
Packaging 1 - Length (m)	0.254m
Packaging 1 - Qty	1
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0m³
Packaging 1 - Weight (kg)	0.2kg

More Information

ETIM 7.0 Key	EC000762
ETIM 8.0 Key	EC000762
ETIM 9.0 Key	EC000762
