SC-IR Splice Trays with Moulded Splice Holder Fins
Art.-No. 857-40244 | TRAY-SC-IR-12 |

Copied

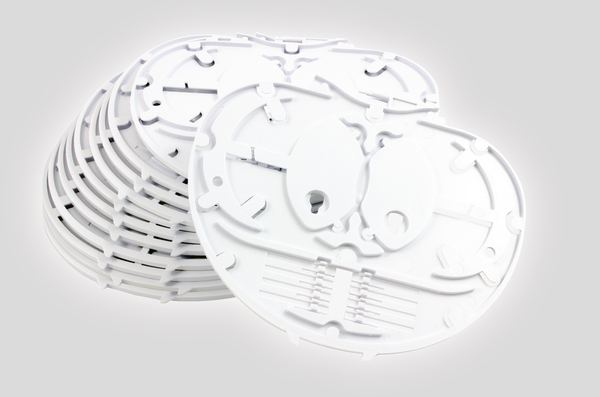

Single Circuit Integrated Routing Splice Trays (12 pk)
Single Circuit IR Tray

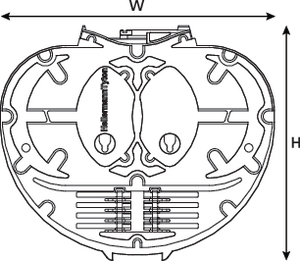

Integrated Routing Single Circuit Tray (front view)

    • Positive fibre management - minimum bend radius 30mm
    • 2 fibre entry ports
    • Moulded splice holder fins for heatshrink (3A) or Crimp (ANT) splice protectors
    • Maximum splice capacity of 4 fibres
    Add to watchlist
    Downloads
    Colour White (WH)
    Content 12 x IR Single Circuit Trays
    PART DESCRIPTION TRAY-SC-IR-12
    Package Content packed in bag
    Product Family IR Single Circuit SC
    Product Group Integrated Routing Fibre Optic Splice Tray
    Qty Trays 12
    Short Description SC-IR Splice Trays with Moulded Splice Holder Fins
    Technical Description The IR single circuit tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 148 x 126 x 3.5mm.
    The IR single circuit tray is suitable for use in the UFC-IR, FDN-IR and FML-IR closures and enclosures.
    Type TRAY-SC-IR-12
    Type of Tray IR SC

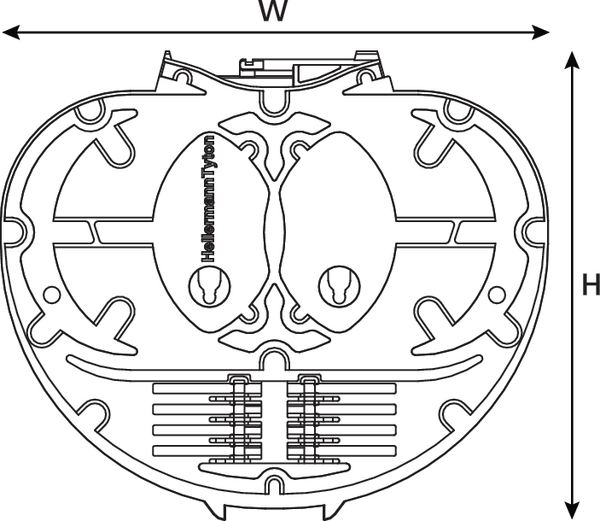

    Depth (D) 3.5mm
    Height (H) 126mm
    Width (W) 148mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660100581
    Packaging 1 - Height (m) 0.381m
    Packaging 1 - Length (m) 0.254m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0m³
    Packaging 1 - Weight (kg) 0.2kg
    ETIM 7.0 Key EC000762
    ETIM 8.0 Key EC000762
    ETIM 9.0 Key EC000762
