SE-IR Splice Trays with 4 Way Ribbon Splice Bridges
Art.-No. 857-40255 | TRAY-SE-IR-2X4 WAY RIBBON-06 |

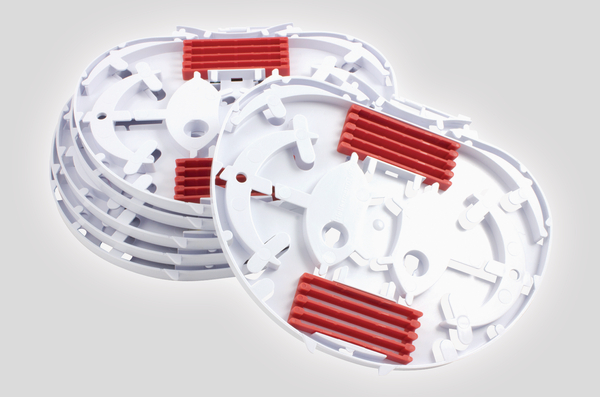

Single Element IR Trays with 4 way ribbon splice bridges (6 pk)

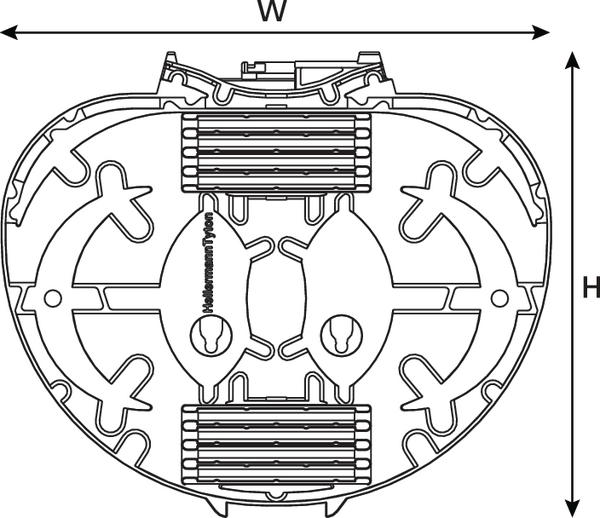

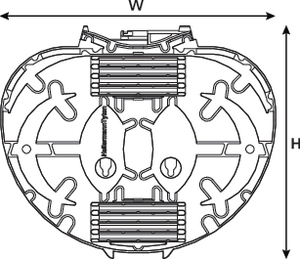

IR Single Element Splice Tray with 2 x 4 Way Ribbon (front view)

Positive fibre management - minimum bend radius 30mm
2 fibre entry ports
2 mounting positions for splice inserts
Option for optical splitter/3A or ANT splice bridge
Optical splitter accommodation up to a maximum of 60 x 7 x 4mm
Maximum splice capacity of 24 fibres (double stacked)
Different splice bridge options allow for a splice type of up to 60mm

Add to watchlist

Distributors near you

More products in this product group:

Integrated Routing Fibre Optic Splice Tray >

Base Data

Colour	White (WH)
Content	6 x IR Single Element Trays, 12 x Mechanical/Ribbon splice protector holders
Material	Acrylonitrile Butadiene Styrene (ABS)
PART DESCRIPTION	TRAY-SE-IR-2X4 WAY RIBBON-06
Package Content	6pcs.
Package Content packed in	bag
Product Family	IR Single Element SE
Product Group	Integrated Routing Fibre Optic Splice Tray
Qty Trays	6
Short Description	SE-IR Splice Trays with 4 Way Ribbon Splice Bridges
Technical Description	The Integrated Routing (IR) single element splitter tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 148 x 125 x 7mm. The IR single element splitter tray is supplied with 2 x Ribbon splice bridges. The maximum splice capacity of the tray is 8 ribon fibres per tray. The IR single element splitter trays is suitable for use in the UFC-IR, FDN-IR and FML-IR closures.
Type	TRAY-SE-IR-2X4 WAY RIBBON-06
Type of Tray	IR SE

Product Dimensions

Depth (D)	7mm
Height (H)	125mm
Width (W)	148mm

Downloads

Specifications

ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660100635
Packaging 1 - Qty	1
Packaging 1 - Type	bag
Packaging 1 - Weight (kg)	0.3kg

More Information

ETIM 7.0 Key	EC000762
ETIM 8.0 Key	EC000762
ETIM 9.0 Key	EC000762
UNSPSC Key	43223337
