SE-B-IR Splice Trays with Splitter Splice Bridges
Art.-No. 857-40416 | TRAY-SE-IR-SP/3A-06 |

Copied
IR SE Tray with Splitter and 3A splice holders

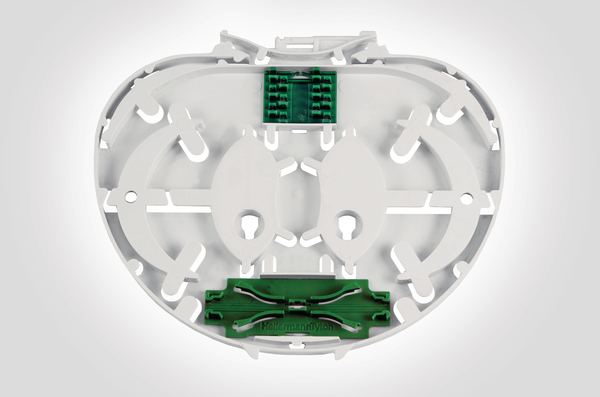

IR Single Element Splitter Tray with Splitter and 3A splice bridge (front view)

    • Positive fibre management minimum bend radius 30mm
    • 2 fibre entry ports
    • Supplied with heatshrink (3A) and splitter/3A bridge inserts
    • Optical splitter accommodation up to a maximum of 60 x 7 x 4mm
    • Maximum splice capacity of 14 fibres (heatshrink/3A)
    Add to watchlist
    Downloads
    Colour White (WH)
    Content 6 x IR Single Element trays, 6 x Heatshrink (3A) and 6 x Splitter splice protector holders
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION TRAY-SE-IR-SP/3A-06
    Package Content 6pcs.
    Package Content packed in bag
    Product Family IR Single Element Splitter SE-B
    Product Group Integrated Routing Fibre Optic Splice Tray
    Qty Trays 6
    Short Description SE-B-IR Splice Trays with Splitter Splice Bridges
    Technical Description The Integrated Routing (IR) single element splitter tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 148 x 125 x 7mm. The IR single element splitter tray is supplied with an optical splitter/3A splice bridge at the front, which will accommodate 2 x 60 x 7 x 4mm optical splitters, and a 3A heatshrink (3A) bridge at the rear. The maximum splice capacity of the tray is 14 fibres based on 14 double stacked heatshrink (3A) splice protectors up to 60mm long. The IR single element splitter trays is suitable for use in the UFC-IR, FDN-IR and FML-IR closures.
    Type TRAY-SE-IR-SP/3A-06
    Type of Tray IR SE
    Depth (D) 7mm
    Height (H) 125mm
    Width (W) 148mm
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660148903
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.3kg
    ETIM 7.0 Key EC000762
    ETIM 8.0 Key EC000762
    ETIM 9.0 Key EC000762
    UNSPSC Key 43223337
