Hellipse SMF SE-B
Art.-No. 857-40281 | TRAY-SMF-SE-B-06 Details

  • Bend radius 30mm
  • 10 fibre entry ports
  • Moulded splice protector holder which accepts 3A (heatshrink) splice inserts
  • Splice retaining strap
  • Maximum splice capacity of 24 fibres
Show more
Content 6 x Hellipse NZDF SMF-SE-B Heathsrink (3A) moulded splice protector holders
Package Content packed in bag
Product Family Hellipse SMF SE-B
Product Group Tubed Fibre Optic Splice Tray
Qty Trays 6

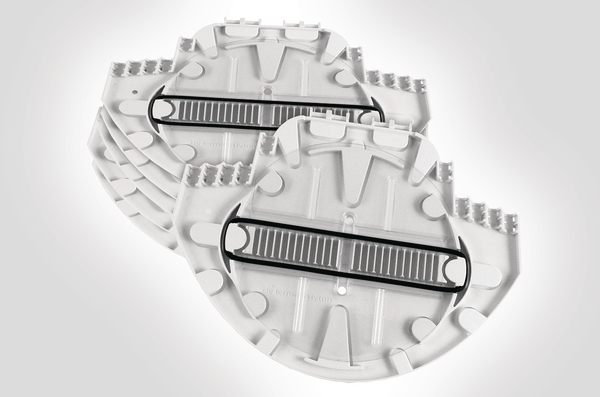

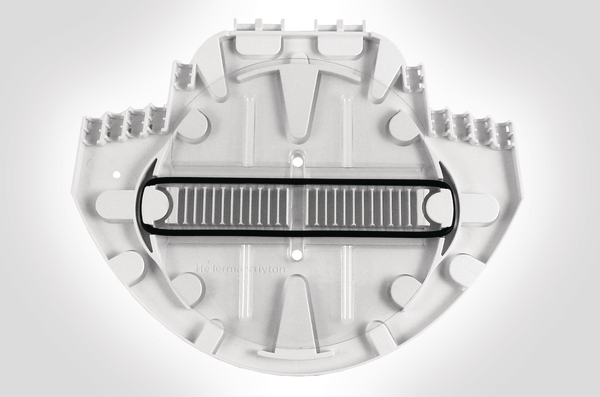

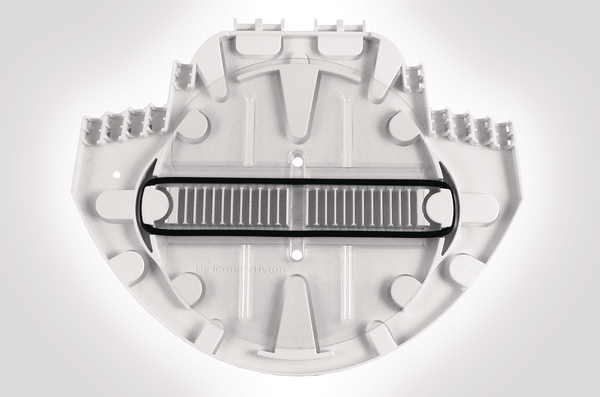

Technical Description The Hellipse NZDF SMF SE-B is an elliptical tray designed for single element applications which is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 182 x 148 x 7mm and the maximum splice capacity of 24 fibres is based on 24 heatshrink 3A splice protectors up to 45mm long. The Hellipse NZDF SMF SE-B tray has moulded splice protector holders which accept a 3A (heatshrink) splice insert and is suitable for use in the FML tubed closure.
Type of Tray Hellipse SMF SE-B

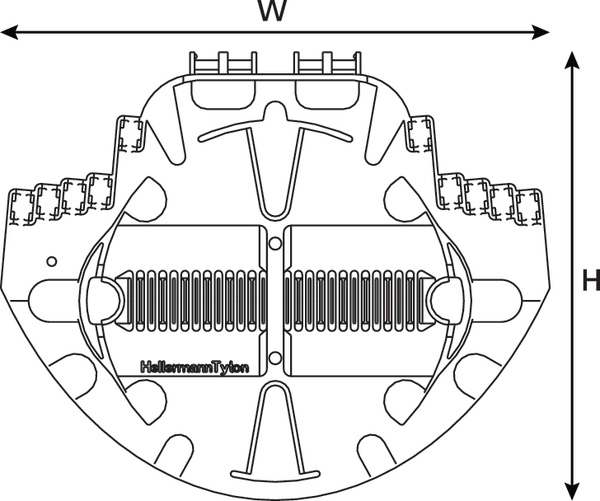

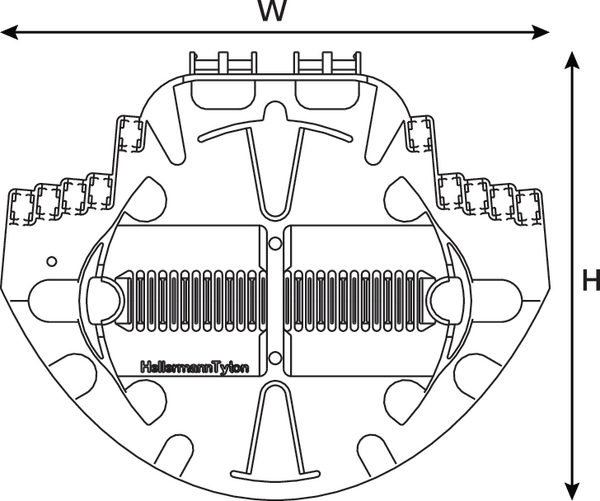

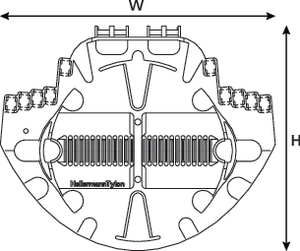

Depth (D) 7mm
Height (H) 148mm
Recov. ∅ d max. 2.4mm
Width (W) 182mm
Country of Origin GB
Customs Number 85389099
GTIN-13 / EAN 5022660113444
Order Unit pcs.
Packaging 1 - Height (m) 0.381m
Packaging 1 - Length (m) 0.254m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0
Packaging 1 - Weight (kg) 0.4kg
ETIM 7.0 Key EC001123
