Modular Zone Termination Box : ZTB12J6BKXXXX/GY

Consolidation Points and EnclosuresArticle number: 854-20030

Features

  • Supports Category 6A, Category 6 and Fibre
  • Uses Hellermantytons Modular Connectivity
  • Supports PoE when using Cat6a / Cat6 Keystone Jacks
  • Accepts Shielded and Unshielded Jacks
  • Accepts up to 12 cable lines
  • 1.5mm Mild Steel for added strength
  • Internal Steel cross-member supports for increased impact resistance
  • Compact size allows for installation in restricted spaces
  • Removeable lid for ease of termination / installation
  • Lockable for security
  • Fixings points to allow for installation on walls/risers, in ceilings, floor or under desk
  • Grey powder coated finish for humidity and temperature protection
  • Brush strips for easy cable entry/exit and debris free operation
  • Integral cable anchor points
  • Modular design allows user to mix and match desired connectivity i.e. 6x CAT6A STP & 6x LC Duplex OM4
  • Port identification

Certifications & Approvals

Colour Grey RAL 7035 (RAL7035)
Connector Type RJ45 UTP
Pack Cont. 1
Package Quantity per box
PART DESCRIPTION ZTB12J6BKXXXX/GY
Performance Category Category 6 (Class E)
Port count 12
Product Family Consolidation Points and Enclosures
Product Group Modular Zone Termination Box

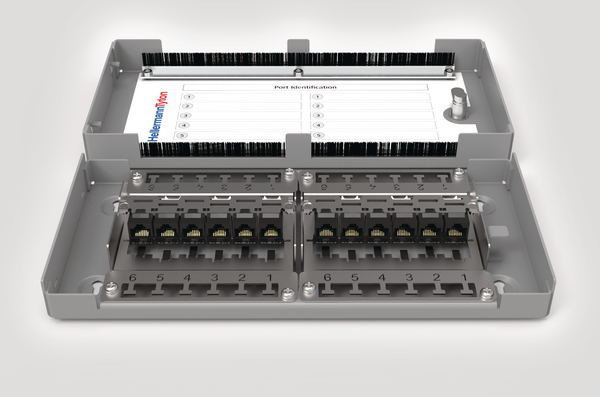

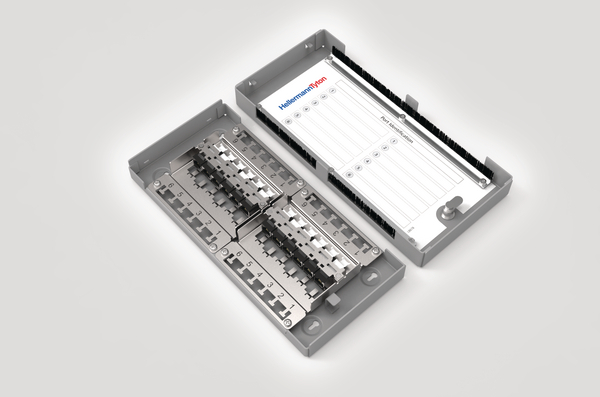

Short Description 12 Way Modular Zone Termination Box Loaded with 12 x CAT6 UTP Jacks
Technical Description The Zone Termination Box (ZTB) from HellermannTyton Connectivity is a compact and robust internal consolidation point. The ZTB has been designed to work as part of a Zone Cabling topology which allows for more flexibility in regards to MAC’s within a structured cabling network. This modular version of the ZTB allows for the use of keystone jacks and fibre adaptors, making it easier to configure each box to your bespoke requirements giving even greater flexibility. Users can choose to have the box loaded with CAT6 UTP keystone jacks in variety of colours. CAT6A shielded jacks or LC duplex / SC simplex fibre adaptors.
Depth (D) 138.6mm
Height (H) 36mm
Width (W) 294mm
Dimensions W x H x D 294 mm x 36 mm x 138.6 mm
GTIN-13 / EAN 5022660172557
