3A Splitter/Splice Protector Holders
Art.-No. 857-40426 | BRIDGE-SP/3A |

Copied

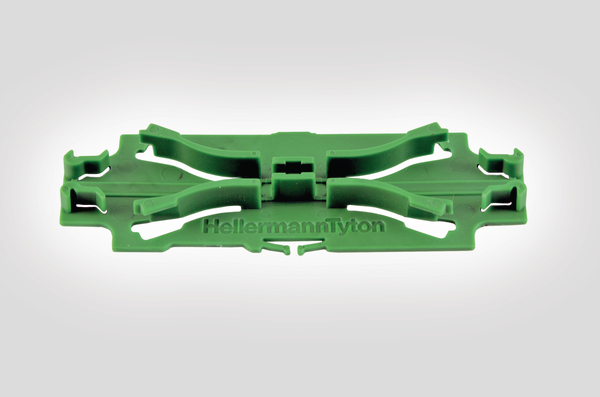

3A Splitter Holder
3A Splitter/Splice Protector Holder
3A Splitter/Splice Protector Holder
3A Splitter/Splice Protector Holder

    • Holds a maximum of 2 PLC Splitters (60 x 7 x 4mm)
    • Manages 2 x 3A Splice Protectors (double stacked)
    • Maximum splice protector length 60mm
    • Compatible with HellermannTyton Single Element and Hellamass Large Splice Trays
    Add to watchlist
    Downloads
    Colour Green (GN)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION BRIDGE-SP/3A
    Package Content 10pcs.
    Package Content packed in bag
    Product Family Fibre Splice Tray Accessories
    Product Group 3A Splitter/Splice Protector Holders
    Short Description 3A Splitter/Splice Protector Holders
    Splice Capacity 2
    Technical Description The HellermannTyton 3A splice/PLC holder is suitable for use in the HellermannTyton single element and Hellamass Large splice trays. The PLC holder manages a maximum of 2 PLCs (60 x 7 x 4mm) and 2 x 3A splices (double stacked). All HellermannTyton single element splice trays accept 2 x holders excluding the Hellamass Large which holds a maximum of 24.
    Type BRIDGE-SP/3A

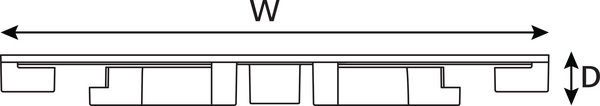

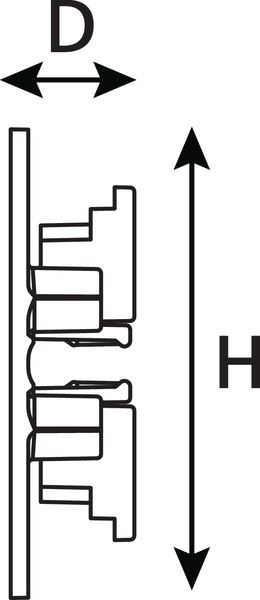

    Depth (D) 6mm
    Height (H) 22.5mm
    Recov. ⌀ d max. 2.4mm
    Width (W) 65mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660149023
    Packaging 1 - Height (m) 0.01m
    Packaging 1 - Qty 10
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.01kg
    Packaging 1 - Width (m) 0.02m
    ETIM 7.0 Key EC000759
    ETIM 8.0 Key EC000759
    ETIM 9.0 Key EC000759
    UNSPSC Key 43223338
