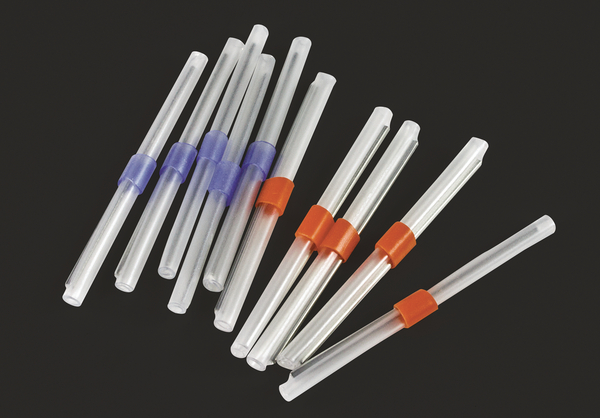

3A Splice Protectors
Art.-No. 857-40127 | FSP738 Details

  • Clear sleeve allows visual location of splice
  • Stainless steel rod or ceramic member to provide additional support to the joint
  • 3A and 6A versions available
  • Suitable for fibre sizes 250/900µm
  • Ribbon fibre splice protector for up to 12 fibre ribbon
  • Low shrink temperature
  • Coloured anti-vibration band available
Show more
Colour Natural (NA)
Content 40 x Natural Splice Protector with Blue Antivibration Band
40 x Natural Splice Protector with Orange Antivibration Band
PART DESCRIPTION FSP738
Package Content packed in bag
Product Description Splice Protectors
Product Family Fibre Splice Tray Accessories
Product Group 3A Splice Protectors
Technical Description HellermannTyton’s range of fibre splice protectors are specifically designed for the mechanical and environmental protection of fused fibre splices. The splice protectors consist of clear heat shrinkable tubing to allow for visual location of the splice prior to heat shrinking with a pre-installed stainless steel (3A/6A) reinforcing rod. The tubing has a wide operating range -45°C to +100°C and a full recovery temperature of 120°C.
Type FSP738
Length (L) 45.0mm
Recov. ∅ d max. 2.4mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Country of Origin GB
Customs Number 85177900
GTIN-13 / EAN 4031026263977
Packaging 1 - Qty 1
Packaging 1 - Weight (kg) 0.1kg
Packaging 2 - Qty 0
Packaging 3 - Qty 0
Packaging 4 - Qty 0
ETIM 7.0 Key EC001123
ETIM 8.0 Key EC001123
ETIM 9.0 Key EC001123
