05/10/2024

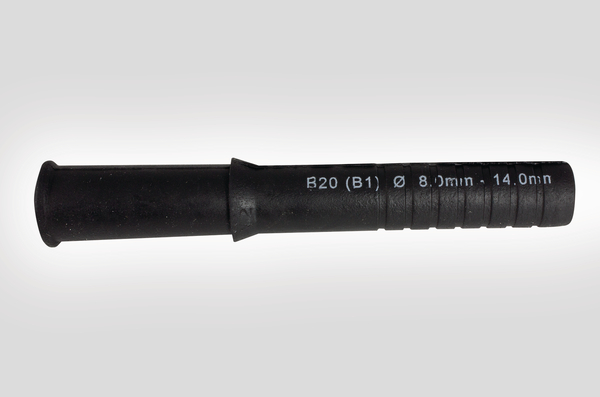

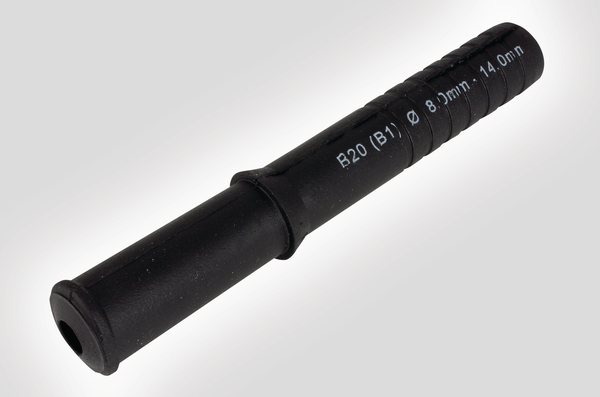

Cablelok B20 8.0-14.0mm x1
Art.-No. 857-50143 | CABLELOK-B20-01 Details

  • Cable range coverage from 4.8mm to 16.5mm
  • Port closure plug available
  • Supplied in multiples of 1
  • Supplied with installation lubricant sachets
Cable ∅ max 14.0mm
Cable ∅ min 8.0mm
Colour Black (BK)
Content 1 x CABLELOK-B20(B1), 1 x Lubricating Wipes
Material Chloroprene Rubber (CR)
PART DESCRIPTION CABLELOK-B20-01
Pack Cont. 1pc.
Package Content packed in bag
Port B
Port count 1
Product Description HellermannTyton’s patented Cablelok mechanical seal enables fast safe cable installation, providing a highly repeatable and consistent seal between the cable and the closure port with excellent non-leak performance. Tested to in excess of 6m head of water, the Cablelok does not rely on the skill and experience of the engineer to achieve the required seal, whilst installation times are typically reduced by up to 90%.
Product Family B Port Series
Product Group B Port Cablelok
Short Description Cablelok B20 8.0-14.0mm x1
Technical Description The B Port Cablelok is a mechanical seal manufactured from external grade flexible polychloroprene. There are 4 Cablelok's which cover a cable range of 4.8mm – 16.5mm including a port plug for blocking unused B sized drop ports.
Type CABLELOK-B20-01
Variant Round - B
CE Certification No
CSA Certified No
Hazardous Goods No
ROHS compliant No
UV-Stabilised No
Country of Origin GB
Customs Number 40169300
GTIN-13 / EAN 5022660101953
Packaging 1 - Height (m) 0.038m
Packaging 1 - Length (m) 0.25m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0
Packaging 1 - Weight (kg) 0.02kg
ETIM 7.0 Key EC000879
ETIM 8.0 Key EC000879
ETIM 9.0 Key EC000879
UNSPSC Key 43202218
