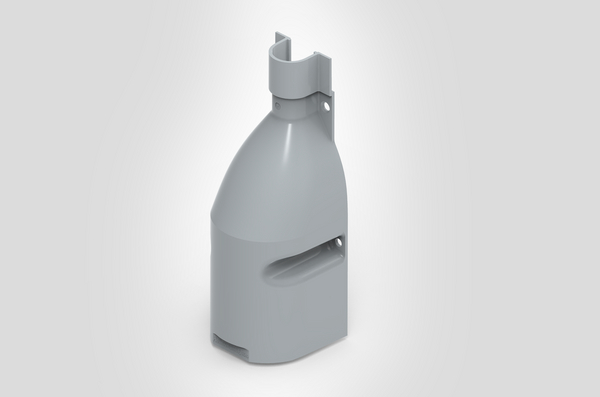

Micro Capping Base (Elephant Foot type)
Art.-No. 857-41116 | CEP-MCAP-BASE-GY |

Copied
Micro Capping in grey.

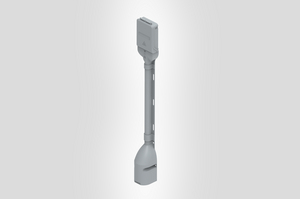

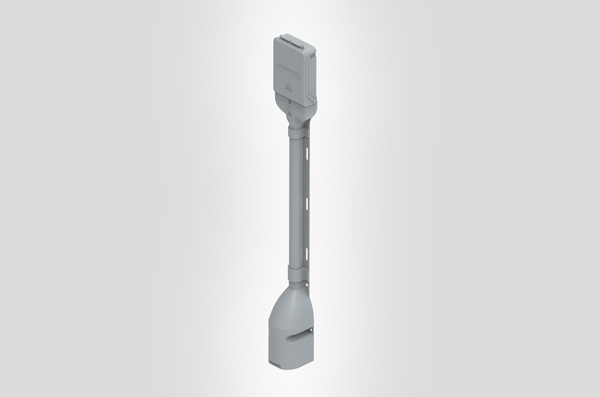

CEP Adaptor in grey (shown with Micro Capping and Micro Capping Base).

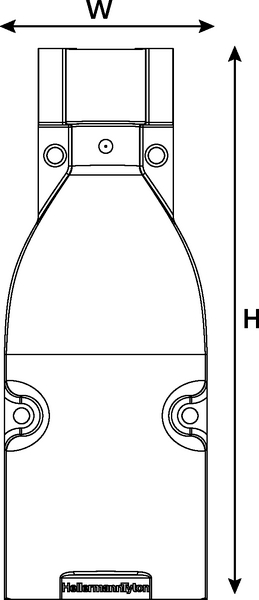

Micro Capping Base (front view)

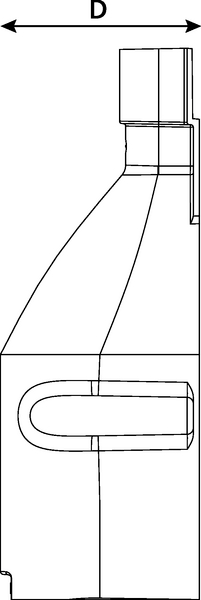

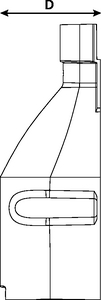

Micro Capping Base (side view)

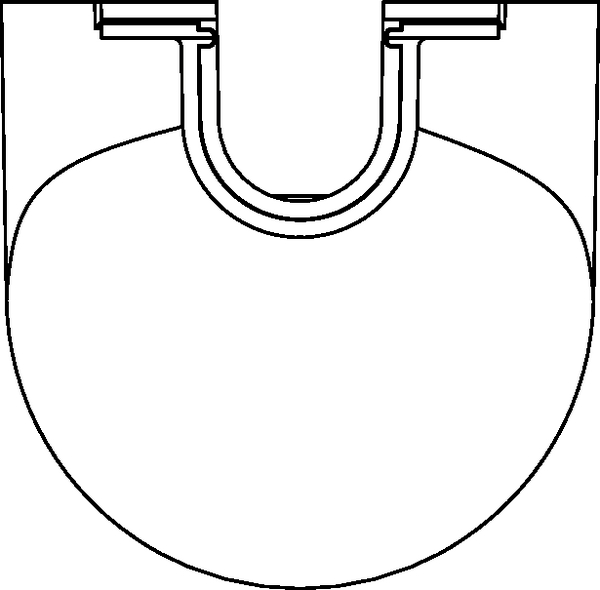

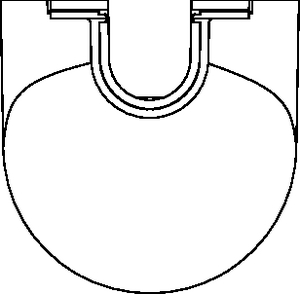

Micro Capping Base (top view)

    • Covers duct 56 access hole
    • Compatible with the CEP Micro Capping Discreet wall-mounted accessory Protection from water ingress
    • UV Stable
    Add to watchlist
    Downloads
    Colour Grey (GY)
    Content 1 x Micro Capping Base
    Material Acrylonitrile Butadiene Styrene alloyed with Polycarbonate (PC/ABS)
    PART DESCRIPTION CEP-MCAP-BASE-GY
    Product Family Building Entry Point Accessories
    Product Group Capping Base Adaptor
    Short Description Micro Capping Base (Elephant Foot type)
    Technical Description The CEP Micro Capping Base can be clipped at the bottom of the CEP Micro Capping and fixed to the wall. The wider shape of the base allows connection to a duct 56 like the connector Bend 4 or 'Elephants foot'.
    Manufactured in grey RAL7040 PC-ABS, the CEP Micro Capping Base is UV stabilised. Other colour options are available (black or brown).
    The CEP Micro Capping Base has been designed by HellermannTyton to be clipped onto the 44mm CEP Micro Capping and is one of the accessories developed for the Customer Entry Point (CEP) Enclosure.
    Type CEP-MCAP-BASE-GY
    Depth (D) 65mm
    Height (H) 180mm
    Width (W) 44mm
    Width (W2) 66mm
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026756066
    Home Connections Home Connections

    Home Connections

    From building entry to internal fibre routing within the property, HellermannTyton have developed a number of products to give home owners and residents increased flexibility with the position of their broadband ONT and Router.
