ENIR-MBU SC SX Adaptor Connection Plate
Art.-No. 857-40402 | ENIR-CP-SCSX/PC |

Copied
Connector Plate with placement for 8 Adaptors

    • 8 x SC Simplex PC Adaptors
    • Maintains positive fibre management for connectorised fibre
    • Simple design, easy to install
    Add to watchlist
    Downloads
    PART DESCRIPTION ENIR-CP-SCSX/PC
    Product Family Fibre Optic Internal Enclosure Accessories
    Product Group Integrated Routing Multi-Business Unit Accessories
    Short Description ENIR-MBU SC SX Adaptor Connection Plate

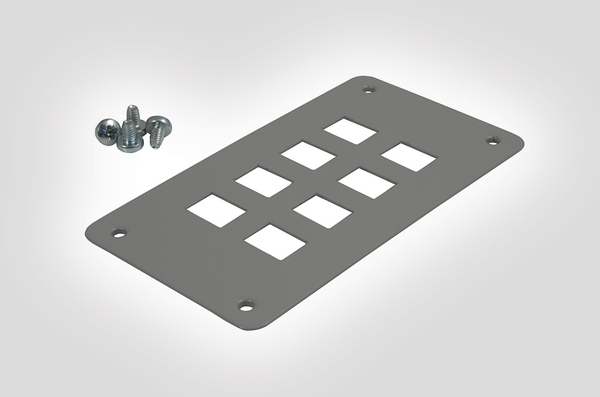

    Technical Description The ENIR-CP-SCSX/PC is an adaptor connection plate designed for use with the ENIR-MBU and ENIR-MBU-CB. The plate is manufactured from powder coated mild steel and and the enclosure accepts a maximum of 6 plates which fit at an angle to allow for ease of installation,testing and cleaning of the adaptors whilst maintaining positive fibre cable management. The connector plate is supplied fully loaded with 8 x SC Simplex PC adaptors and 4 fixing screws.
    Type ENIR-CP-SCSX/PC
    Height (H) 63mm
    Width (W) 114mm
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660146961
    ETIM 7.0 Key EC002609
    ETIM 8.0 Key EC002609
    ETIM 9.0 Key EC002609
