FDN 59 Port Integrated Routing Connectorised Closure
Art.-No. 857-01678
| FDNIR-ABBCWX-CT48-0384
|
Copied
- 48 LC/APC Drops
- 8 x 1:8 Bare End to LC/APC PON Splitters
- Maximum 120 fibre splice capacity when using SE-R tray
- 58 round ports and 1 oval port
- Positive fibre management to ensure consistent 30mm minimum fibre bend radii throughout
- Fibre storage basket for loop through applications
- Bi-directional fibre routing
- Cablelok compatible for all port sizes
- Quick release cover
- Optional pressure release valve
More products in this product group:
| Colour | Black (BK) |
| Content |
FDN 59 Port IR Base AB-Length Cover 6 x 1:8 Bare End to LC/APC Splitters 12 x LC/APC Quad Adaptors Quick Release Clamp Sealing ‘O’ Ring Fibre Storage Basket Fibre Optic Routing Module Fibre Optic Storage Unit Fibre Optic Storage Unit Lid Fibre Slot Entry Module Fibre Slot Retaining Block Reusable Cable Ties 6 x SE-IR Trays Tray Lid Tray Tool Anchor Fixing Kit (3) Spiral Binding Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 – 25 Green Marker 1 – 25 |
| Method of Sealing | Cablelok, Heatshrink |
| PART DESCRIPTION | FDNIR-ABBCWX-CT48-0384 |
| Port | L, T, S, B, R |
| Port count | 59 |
| Product Family | AB Length with Basket |
| Product Group | FDN 59 Port Integrated Routing Connectorised Closure |
| Technical Description |

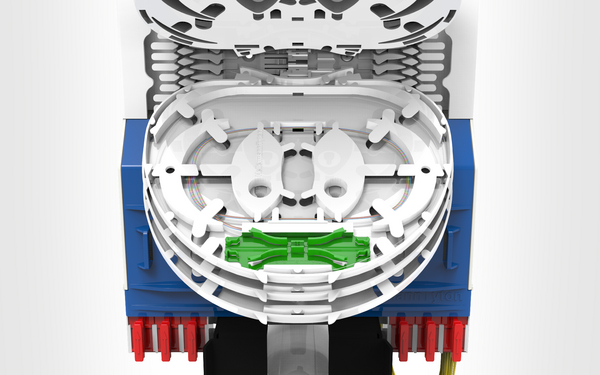

The FDNIR AB Length 48 Drop Connectorised Clsoure is supplied with a loop storage basket and polypropylene base. The base configuration is 58 round ports and 1 oval port for loop through applications with a cable range of 1.7mm to 29mm when using Cablelok mechanical seals or 6mm to 35mm when using heatshrink. The mounting system is manufactured from powder coated Grade 304 stainless steel and is supplied with 6 SE-IR trays and 12 LC/APC Quad adaptors. Six 1:8 bare end to LC/APC PON (Passive Optical Network) splitters are fitted onto an SE-IR tray and the outputs are connected to the LC/APC adaptors. The connectorised closure and the position of the mounting system allows for easy access for routing fibre on to the trays and the basket is positioned at the front on the IR mounting system to provide storage for fibre loops. |
| Type | FDNIR-ABBCWX-CT48-0384 |
| Type of Tray | Integrated Routing SE, 250µm |
