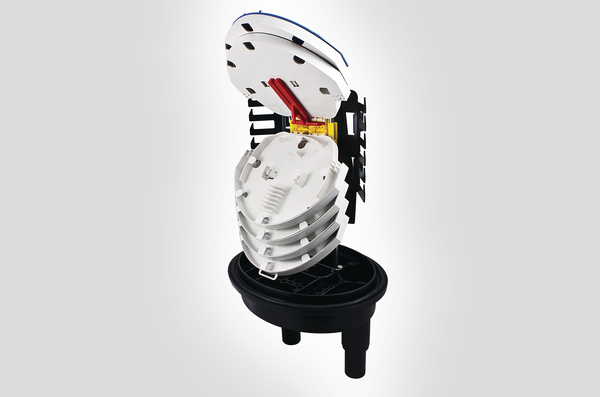

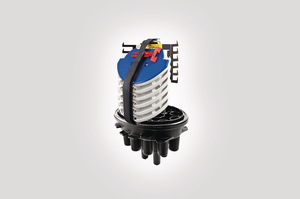

FDN 59 port A length tubed closure with basket and 6 x multi-ribbon moulded splice holder trays
Art.-No. 857-00974 | FDNTB-AXRCR27 Details

  • Maximum 72 (8 or 12 fibre) ribbon cable splice capacity
  • 58 round ports and 1 oval port
  • Supplied with 6 x Multi-Ribbon Moulded Splice Holder Trays
  • Maximum of 12 (8 or 12 fibre) ribbon cable splices per tray
  • Fibre storage basket for loop through applications supplied as standard
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional flash test valve and/or grounding feed-through
Show more
Colour Black (BK)
Content FDN 59 Port Base
A-Length Cover (Dome)
Quick Release Clamp
Sealing ‘O’ Ring
Fibre Storage Basket
Tray Support Frame
Anchor Fixing Kit (3)
6 x Multi-Ribbon Trays
Tray Tool
Hook and Loop Securing Straps
Isopropyl Alcohol Wipes
Desiccant
Installation Guide
Cover Type A
Method of Sealing Cablelok, Heatshrink
PART DESCRIPTION FDNTB-AXRCR27
Package Content packed in kit
Port L, T, S, B, R
Port count 1, 2, 4, 2, 52
Product Family A Length with Multi-Ribbon Tray with Basket
Product Group FDN 59 Port Tubed Closure
Qty Trays 6
Short Description FDN 59 port A length tubed closure with basket and 6 x multi-ribbon moulded splice holder trays
Splice Capacity 72
Technical Description The FDN 59 Port A Length single stack closure is supplied with a Polypropylene base. The base configuration of 58 round ports and 1 oval port covers a cable diameter range of 1.7 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 6 Multi-Ribbon cable trays giving a maximum splice capacity of 72 (8 or 12 fibre) ribbon cables based on 12 ribbon cable splices per tray. The tubed closure and position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white with a clear cover which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays. The Multi-Ribbon tray can also accommodate 3A splices when used with the appopriate tubefix connectors and transport tubing (See Chapter 13 – Accessories).
Type FDNTB-AXRCR27
Type of Tray Multi-Ribbon

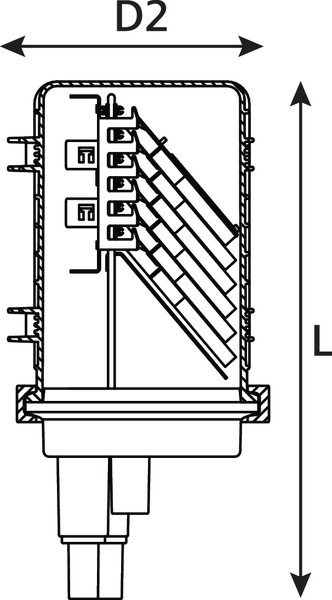

Length (L) 455mm
Length (mm) 455mm
Width D1 312mm
Width D2 222mm
Country of Origin GB
GTIN-13 / EAN 5022660133541
