FRBU Connectorised
Art.-No. 857-02594 | FRBCT-MXXSA21-M2 Details

  • 8 LC/APC Connections
  • Maximum splice capacity 38 3A (double stacked)
  • 16 round ports and 1 oval port
  • Fibre storage basket for mid-span applications
  • 2 x Hellapon Small trays
  • Positive fibre management to ensure consistent 30mm bend radius throughout
  • Cablelok compatible for all port sizes
Show more
Colour Black (BK)
Content LC/APC Quad Adaptors (2)
1:8 Bare End to LC/APC PLC Splitter (1)
FRBU 16 Port Base
M Length Cover
Quick Release Clamp
Sealing 'O' Ring
Adaptor Shield
Tray Support Frame
Anchor Fixing Kit (2)
Hellapon Small Tray 3A (2)
Isopropyl Alcohol Wipes (2)
Dessicant
Marker Kit
Material Polypropylene (PP)
Method of Sealing Cablelok
PART DESCRIPTION FRBCT-MXXSA21-M2
Package Content packed in box
Port R, LM
Port count 16
Product Family M Length with 2 LC Quad Adaptors
Product Group FRBU Connectorised
Qty Trays 2
Splice Capacity 38

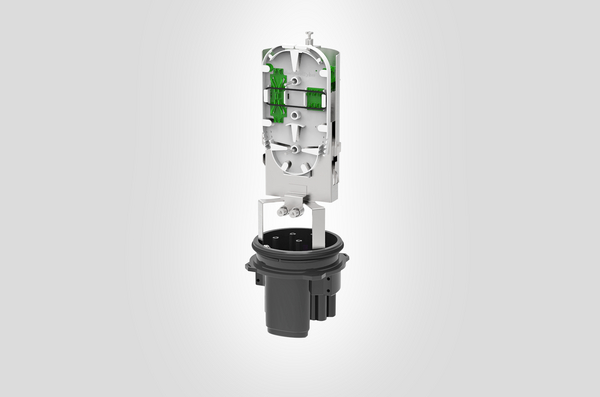

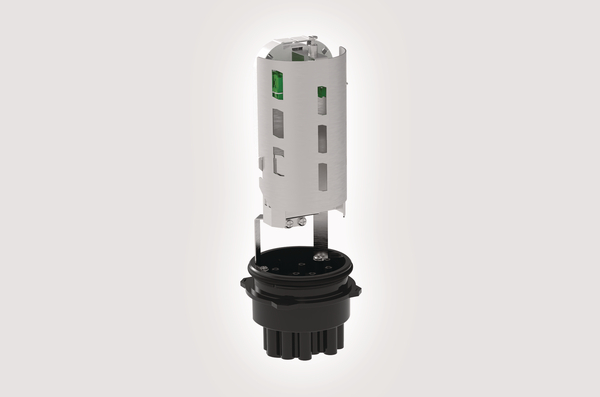

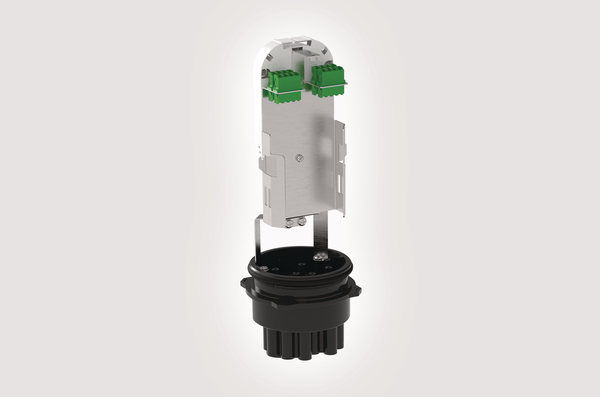

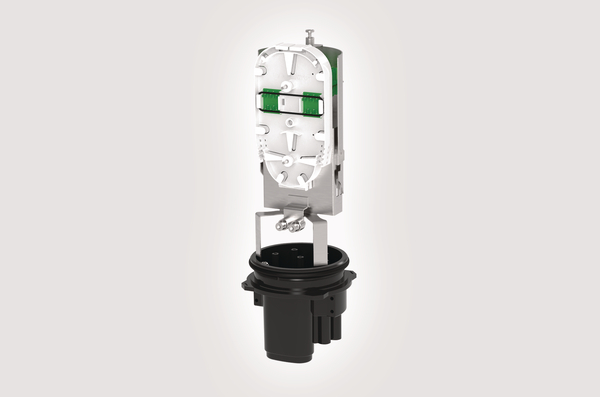

Technical Description The FRBU 16 port connectorised M length closure is an IP68 dome closure manufactured from UV stable polypropylene with a base configuration of 16 round ports and 1 oval port which accommodates cable diameter ranges of 1.7 – 9.5mm (R Ports) and 4.0 – 15.0mm (LM port) when using Cablelok mechanical seals. The closure mounting system is manufactured from Grade 304 stainless steel and supports 2 x Hellapon Small splice trays, the adaptor management plate, a fibre storage basket and adaptor shield. The lower Hellapon Small splice tray is fitted with a single 3A splice bridge and a PLC splitter bridge which houses 1 x 1:8 bare end to LC/APC PLC splitter, the top Hellapon Small tray is fitted with 2 x 3A splice bridges. The adaptor plate and shield houses 2 x LC/APC quad adaptors and the outputs of the 1:8 PLC splitter is routed and fitted into the adaptors. The base has an integrated closure mounting point which can be used with the FRBU moulded mounting brackets for mounting on a wall, pole or Mobra arm and allows the cover to be removed and the closure to stay in place during installation or maintenance.
Type FRBCT-MXXSA21-M2
Variant Outdoor Enclosure
Length (L) 360mm
Length (mm) 360mm
Width D1 130mm
Width D2 130mm
Country of Origin GB
GTIN-13 / EAN 5022660197468
Packaging 1 - Height (m) 0.14m
Packaging 1 - Length (m) 0.54m
Packaging 1 - Qty 1
Packaging 1 - Type box
Packaging 1 - Volume (m³) 0.01058
Packaging 1 - Weight (kg) 1.6kg
Packaging 1 - Width (m) 0.14m
ETIM 7.0 Key EC002067
ETIM 8.0 Key EC002067
ETIM 9.0 Key EC002067
