25/06/2021

FRBU 16 Port Closure : FRBTB-BXXSC61

B LengthArticle number: 857-02060

Features

  • Maximum 144 fibre splice capacity
  • 16 round ports and 1 oval port
  • 6 Hellapon Medium side hinged trays
  • Maximum 24 splices per tray (double stacked)
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional flash test valve and/or grounding feed-through
Colour Black (BK)
Content FRBU 16 Port Base
B-Length Cover (Dome)
Quick Release Clamp
Sealing ’O’ Ring
6 Hellapon Medium Side HInged Trays
Tray Support Frame
Anchor Fixing Kit (6)
Transportation Tubing
Hook and Loop Management Ties
Cable Ties
Isopropyl Alcohol Wipes
Desiccant
Installation Guide
Marker Kit
Red Marker 1 - 12
Green Marker 1 – 12
Cover Type B
Method of Sealing Cablelok, Heatshrink
Package Quantity per box
PART DESCRIPTION FRBTB-BXXSC61
Port LM, R
Port count 1, 16
Product Family B Length
Product Group FRBU 16 Port Closure
Qty Trays 6

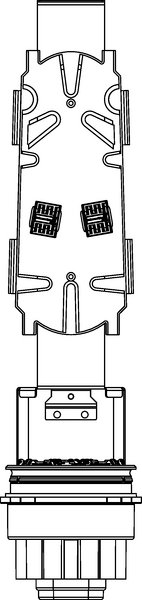

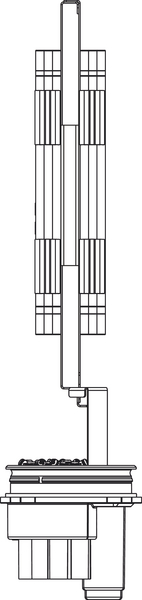

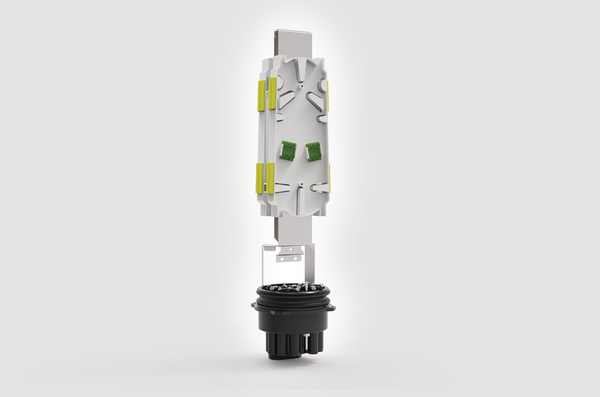

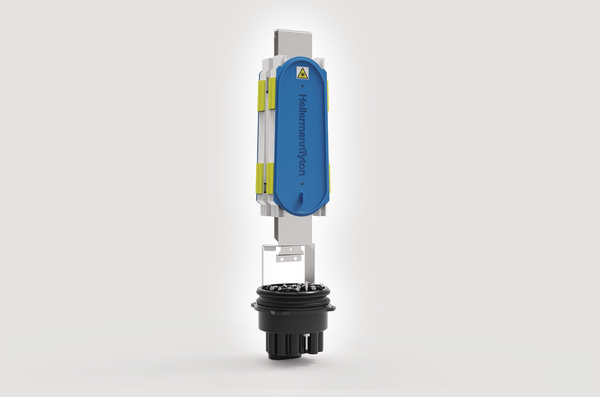

Technical Description The FRBU 16 Port B Length closure is supplied with a Polypropylene base. The base configuration of 16 round ports and 1 oval port which accommodate covers a cable diameter range of 1.7 – 9.5mm (R Ports) and 4.0 – 15.0mm (LM port) when using Cablelok mechanical seals. The mounting system is manufactured from Grade 304 stainless steel and is fitted with 6 Hellapon Medium side hinged trays fitted with 3A splice bridges giving a maximum of 144 fibre splices based on 24 fibres per tray. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.

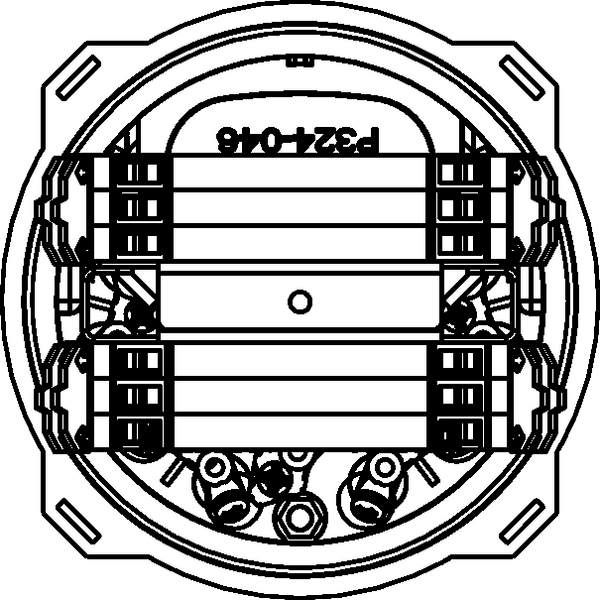

Type of Tray Hellapon Medium Side Hinged

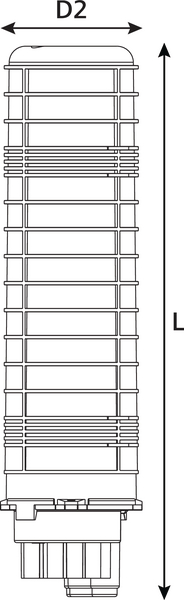

Length (mm) 505mm

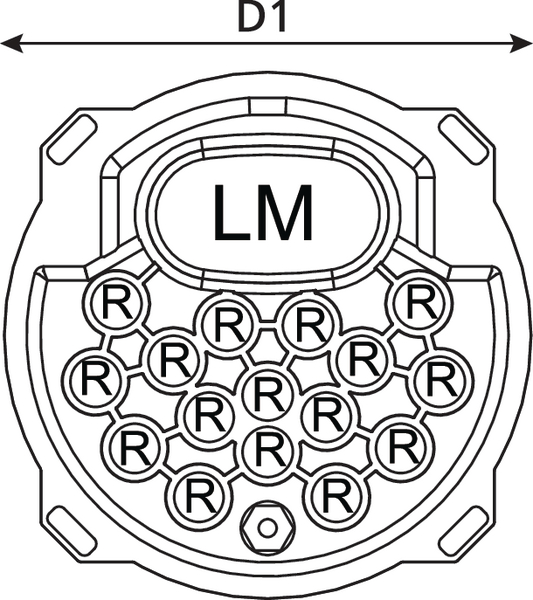

Width D1 130mm
Width D2 130mm
GTIN-13 / EAN 5022660174841
ETIM 6.0 EC001124
ETIM 7.0 Key EC001124
