09/12/2024

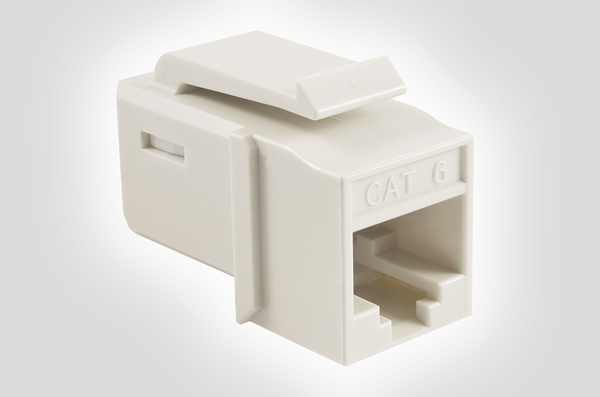

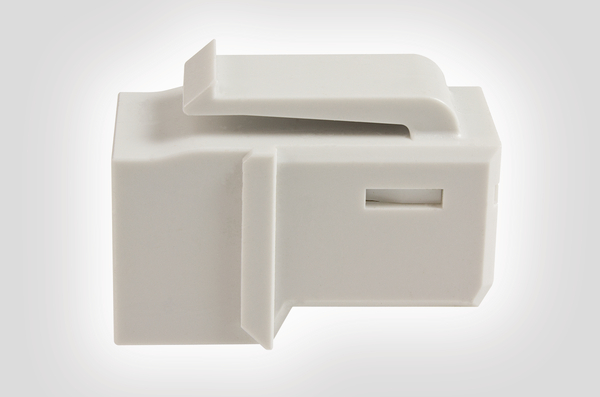

CAT6 Unshielded Keystone Jack
Art.-No. 852-25125 | GSTJC6U-WH |  Details

Category 6 UTP Jack in White

    • Compact keystone design
    • Exceeds Category 6 performance standards
    • Patented contact technology
    • Integral Strain Relief
    • Suitable for high density patching fields
    • 568A and 568B wiring options
    • Uses a comfort termination tool
    • Available in 12 colour options
    Show more
    Add to watchlist
    Downloads
    Colour White (WH)
    PART DESCRIPTION GSTJC6U-WH
    Pack Cont. 1pc.
    Package Content packed in bag
    Performance Category Category 6 (Class E)
    Product Description The HellermannTyton Modular Keystone Jack provides a common termination method across Category 6A, Category 6 and Category 5e performance standards. Its patented contact design uses innovative alien crosstalk cancellation technology, ensuring industry leading performance. The compact dimensions of the jack allows for high density patching in 19" frames (1U 48 ports, 2U 72 ports) as well as standard (1U 24 ports, 2U 48 ports). In addition, the reduced depth allows for more space at the rear of the module accommodating the higher bend radius required for large diameter cables, making installations where shallow trunking is being used possible. Available in 12 colours. Requires HellermannTyton's Comfort Termination Tool.
    Product Family Modular RJ45 – White
    Product Group CAT6 Unshielded Keystone Jack
    Technical Description The design of the HellermanTyton Keystone Jack has an integrated wire manifold, lid and cable management which provides integral strain relief for the cable and which enables the use of the confort termination tool for quick and easy installation on site. Part of HellermannTyton's Modular system which includes modular patch panels, euro, LJ6C Keystone adaptors, faceplates and The Category 5e6 Keystone Jacks are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 6 and offers backward compatibility with Cat5e and voice applications
    Type GSTJC6U-WH

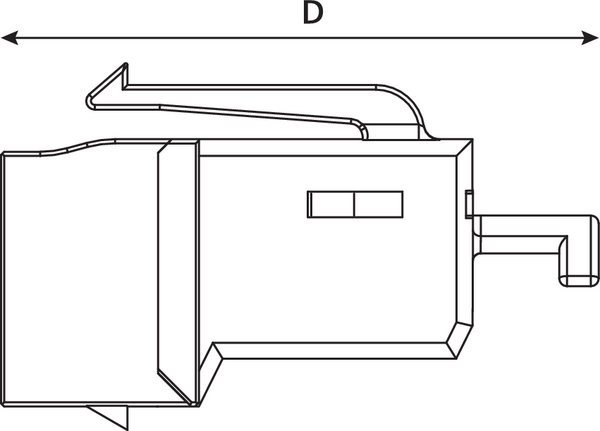

    Depth (D) 38.0mm

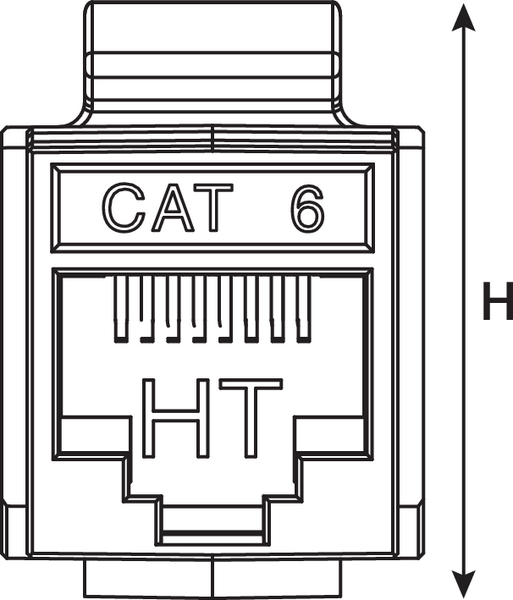

    Height (H) 23.3mm
    Length (L) 16.5mm

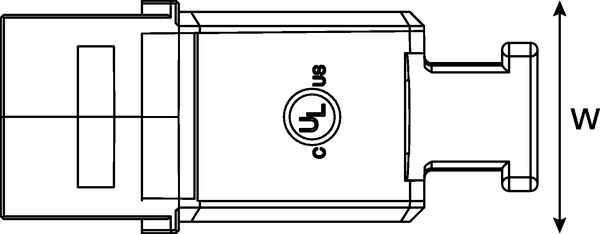

    Width (W) 16.5mm
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E216789
    Country of Origin GB
    Dimensions W x H x D 16.5 mm x 23.3 mm x 38.0 mm
    GTIN-13 / EAN 5022660120466
    Packaging 1 - Weight (kg) 0.006kg
    ETIM 7.0 Key EC001121
    ETIM 8.0 Key EC001121
    ETIM 9.0 Key EC001121
    UNSPSC Key 39121444
    Cat6A & Cat6 Connectivity Cat6A & Cat6 Connectivity

    Cat6A & Cat6 Connectivity

    HellermannTyton offer an extensive range of connectivity solutions to meet the demands of any installation project. HellermannTyton provide a full end to end solution in Category 6A and Category 6 formats.

    Cat6A & Cat6 Connectivity >
