16mm Recov. ⌀ d max. Heatshrink Sleeving
Art.-No. 857-40317 | HS1909* |

Copied

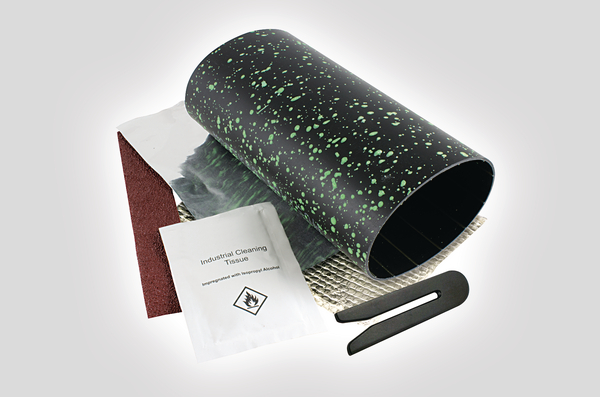

Heatshrink Tubing (Kit shown)
Heatshrink Tubing with adhesive

    • Available in a 3 diameters and lengths to suit all port sizes
    • Internal lining of hot melt adhesive provides environmental seal
    • Visual correct shrinkage indication
    • Branch sealing clips for installation of fibre loops included
    Add to watchlist
    Downloads
    Cable ⌀ max 60mm
    Cable ⌀ min 16mm
    Colour Black (BK)
    Content Heatshrink (x10)
    Abrasive Strips (x10)
    Aluminum Foil (100 x 130mm)(x10)
    Tis Wipes (x20)
    Branch Sealing Clips
    Material Polyolefin, cross-linked (PO-X), Aluminium (AL)
    PART DESCRIPTION HS1909*
    Package Content 10pcs.
    Package Content packed in bag
    Port L, LM
    Product Description Heatshrink Sleeving
    Product Family Heatshrink Sleeving
    Product Group 16mm Recov. ⌀ d max. Heatshrink Sleeving
    Technical Description The HellermannTyton range of heatshink kits are crosslinked polyolefin with an internal lining of hot melt adhesive. The heatshrink sleeve has a coating of thermochromatic paint, which changes colour when the optimum temperature for shrinkage is achieved. The hot melt adhesive lining provides an environmental seal around the cable and port entry.
    Type HS1909*

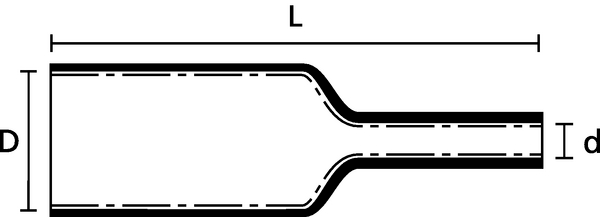

    Length (L) 180.0mm
    Recov. ⌀ d max. 16mm
    Supplied ⌀ D min. 60mm
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 85472000
    GTIN-13 / EAN 5022660118197
    ETIM 7.0 Key EC000217
    ETIM 8.0 Key EC000217
    ETIM 9.0 Key EC000217
    UNSPSC Key 40183006
    Home Connections Home Connections

    Home Connections

    From building entry to internal fibre routing within the property, HellermannTyton have developed a number of products to give home owners and residents increased flexibility with the position of their broadband ONT and Router.
