Modular 1U 48 Port Panel
Art.-No. 853-55011 | HTC-XXS-PPF481U/CH |

Copied
HTC Series 1U 48 Port Modular Patch Panel
HTC Series 1U 48 Port Modular Patch Panel
HTC Series 1U 48 Port Modular Patch Panel

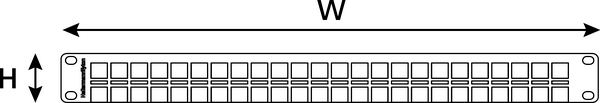

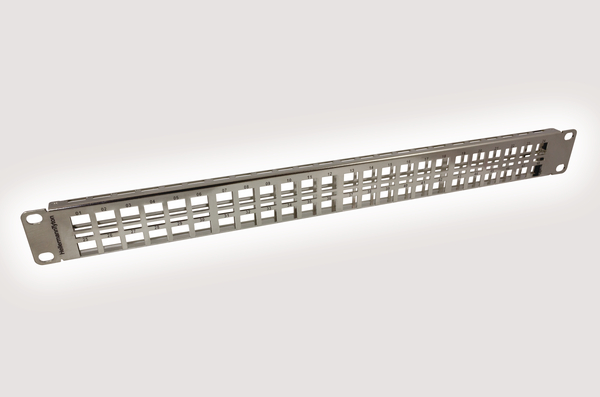

HTC Series 1U 48 Port Modular Patch Panel (front view)
HTC Series 1U 48 Port Modular Patch Panel (top view)

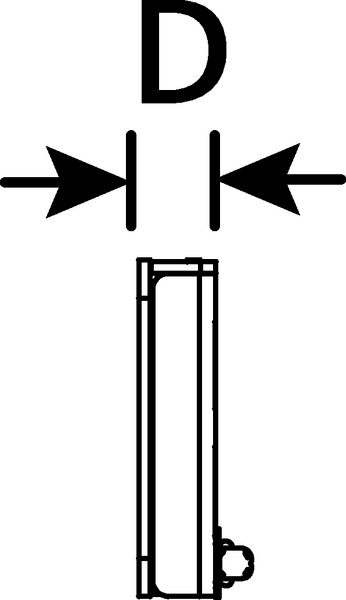

HTC Series 1U 48 Port Modular Patch Panel (side view)

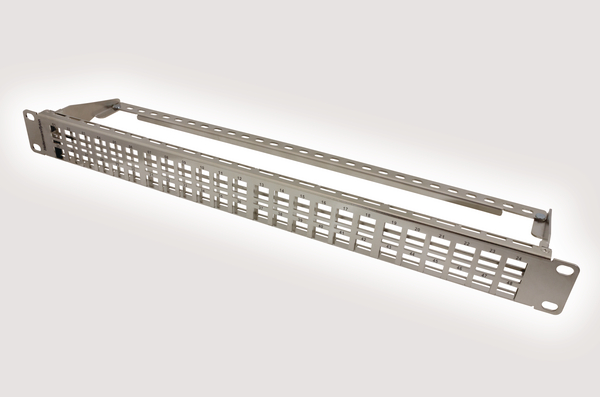

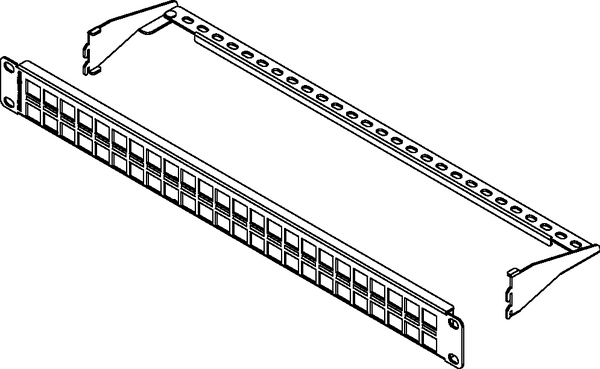

HTC Series 1U 48 Port Modular Patch Panel (perspective view)

    • For High Density Applications
    • Plastic Free Packaging
    • Detachable, Folding Cable Manager
    • Ideal for Shielded or Unshielded Requirements
    • 1U 48 Ports
    • Compatible with 19 Inch Mounting Profiles
    Add to watchlist
    Downloads
    Colour Silver (SR)
    PART DESCRIPTION HTC-XXS-PPF481U/CH
    Port count 48
    Product Description The HTC Series 1U 48 Port Modular patch panel has been developed
    to allow for simplistic installation of high density copper connectivity. It
    accepts HTC compatible keystone jacks. It features a folding rear cable
    manager with cable tie points that simply snaps into place without the
    need for extra tools or manpower.
    Short Description Modular 1U 48 Port Panel
    Type HTC-XXS-PPF481U/CH
    Depth (D) 10.0mm
    Height (H) 44.0mm
    Width (W) 482.5mm
    ROHS compliant Yes
    Specifications
    Country of Origin TW
    Dimensions W x H x D 482.5 mm x 44.0 mm x 10.0 mm
    GTIN-13 / EAN 4031026772035
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
    Cat6A & Cat6 Connectivity Cat6A & Cat6 Connectivity

    Cat6A & Cat6 Connectivity

    HellermannTyton offer an extensive range of connectivity solutions to meet the demands of any installation project. HellermannTyton provide a full end to end solution in Category 6A and Category 6 formats.
