GigaDuct Elbow, Vertical Inside, 90⁰, No Cover
Art.-No. 855-05059 | LG-BVIB90-YL-N |

Copied

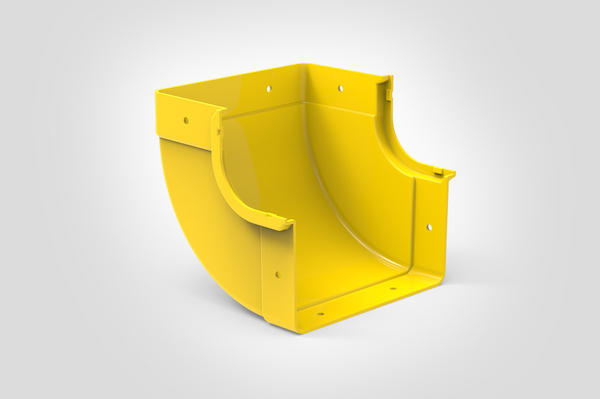

90° Vertical Inside Elbow without cover.
Vertical Inside Elbow.
Vertical Inside Elbow.

    • 200mm wide
    • 90⁰ Bend
    • Supplied without cover
    • For creating vertical upward routing transitions from horizontal routes
    • Fully encloses cables to keep out dirt and dust as the fibre is routed through different areas of the data centre
    • Protects cables by maintaining proper bend radius, preventing micro bends and macro bends that degrade performance
    • Maintains attractive aesthetics by enclosing cables throughout the facility
    Add to watchlist
    Downloads
    Application Vertical inside elbows are used for creating a vertical upward transition from GigaDuct horizontal routes. This model offers a 90⁰ bend and is supplied without cover.
    Colour Yellow (YE)
    PART DESCRIPTION LG-BVIB90-YL-N
    Product Family Elbow - Vertical Inside
    Product Group Fittings
    Short Description GigaDuct Elbow, Vertical Inside, 90⁰, No Cover
    Technical Description GigaDuct is a robust, scalable cable management system engineered specifically for organising and protecting optical fibre cables in the data centre environment. Constructed with precision, it provides a dedicated pathway that prevents cable congestion, minimises physical stress on fibres, and facilitates efficient cable management. Whether you are setting up a new data centre or upgrading an existing one, HellermannTyton’s GigaDuct offers unmatched versatility and reliability.
    Type LG-BVIB90-YL-N
    Angle 90
    Halogen-free Yes
    Limited Fire Hazard Yes
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660242083
