MDU S5 with 900µm trays and LC APC Adaptors
Art.-No. 857-01497 | MDU-S5-BLMX02CP024B96A1 |

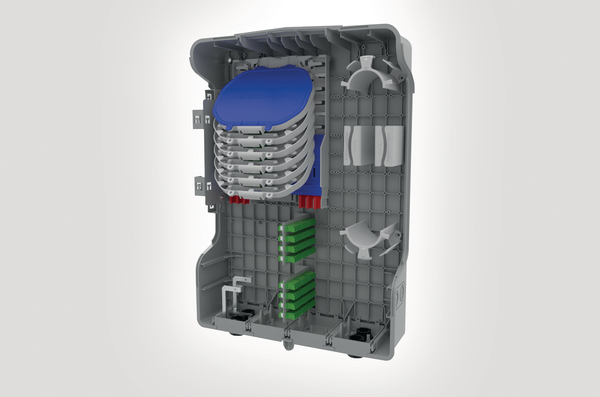

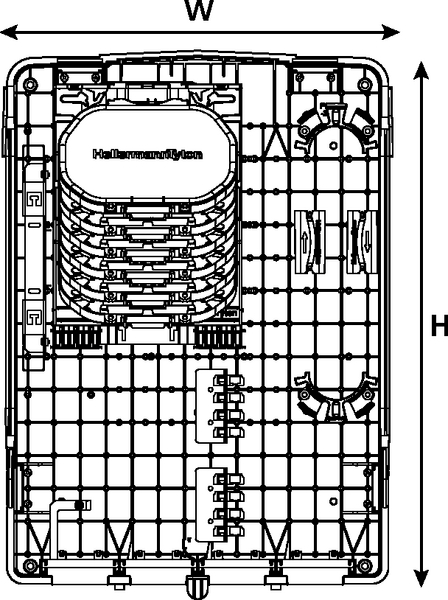

Internal view of the MDU - S5 Connectorised Enclosure.

MDU - S5 shown with lid and optional lock.

This product is not available anymore.

Please contact our sales team.

96 LC APC Customer Connection Points
Maximum 144 900µm Fibre Splices
900µm IR Fibre Management System
96 LC APC Pigtails
6 900µm IR Trays
Loop Storage Basket
Loop Storage Manager
4 x Entry/Exit Port Blanks
Strength Member Anchor
In-built spirit level
IP54/IK08
UV Stable
V0 Rating

Add to watchlist

Distributors near you

Downloads CAD-Download

More products in this product group:

S5 Series MDU/MBU Enclosures >

Base Data

Application	Designed for deployment within the last mile of the FTTx network. This enclosure can be used within a Point to Point (P2P) or Point to Multi Point (P2MP) with the addition of PLC splitters, connectorised or bare end, pigtails and adaptors.
Adapter Capacity	96
Colour	Grey RAL 7035 (RAL7035)
Connector Colour	Green (GN)
Connector Type	LC-APC
Content	S5 Enclosure 900µm IR Fibre Management System 6 900µm IR Trays 24 LC APC Quad Adaptors 2 48 Way Quad Adaptor Connection Plates 96 LC APC Pigtails Loop Storage Basket Loop Storage Manager 4 x Entry/Exit Port Blanks Strength Member Anchor In-built spirit level Fibre Picker Wall Mounting Kit Red and Green Polyspiral Tubing(2M) Red and Green Velcro Ties(5)
Installed Adapters	24
Material	Acrylonitrile Butadiene Styrene (ABS)
PART DESCRIPTION	MDU-S5-BLMX02CP024B96A1
Package Content	1pc.
Package Content packed in	EA
Port count	8
Product Family	Fibre Optic External/Internal Enclosure
Product Group	S5 Series MDU/MBU Enclosures
Qty Trays	6
Short Description	MDU S5 with 900µm trays and LC APC Adaptors
Splice Capacity	96
Technical Description	The S5 enclosure is configured with the HellermannTyton 900µm IR Management System. The management system is mounted on an aluminium backplane which accommodates 6 900µm trays giving a maximum of 72 900µm 3A fibre splices. The position of the fibre management system allows for easy access for the routing of fibre on to the trays. The trays and fibre optic routing modules are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide the fibre elements on to the IR system; the foam pad on the retainer is partially cut through to accommodate a range of fibre counts. All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre retaining block and tray retaining clips are coloured red to aid in identification if they are dropped. 2 LC Quad adaptor connection plates are fitted with 24 LC APC quad adaptors and pigtails to provide 96 customer connection points. The LC APC pigtails are routed on to the fibre management trays to be spliced to the incoming fibre. A loop storage basket and loop storage manager are fitted for management of both incoming and outgoing cables and are located on either side of the fibre management trays. The enclosure is 568 x 375 x 165mm (H x W x D) and manufactured in light grey (RAL 7035), UV stable ABS (Acrylonitrile Butadiene Styrene) and has an IP54, IK08 and V0 rating. Designed with 8 dual input/output ports, 4 across the bottom, 2 on the top and 2 on each side, each port will accommodate a 20 or 25mm cable gland. A 100 x 25mm inset position on the front cover allows for a customer logo to be moulded in to the enclosure.
Type	MDU-S5-BLMX02CP024B96A1
Type of Tray	Versatile Routing ME
Variant	Indoor/Outdoor FTTx Enclosures
