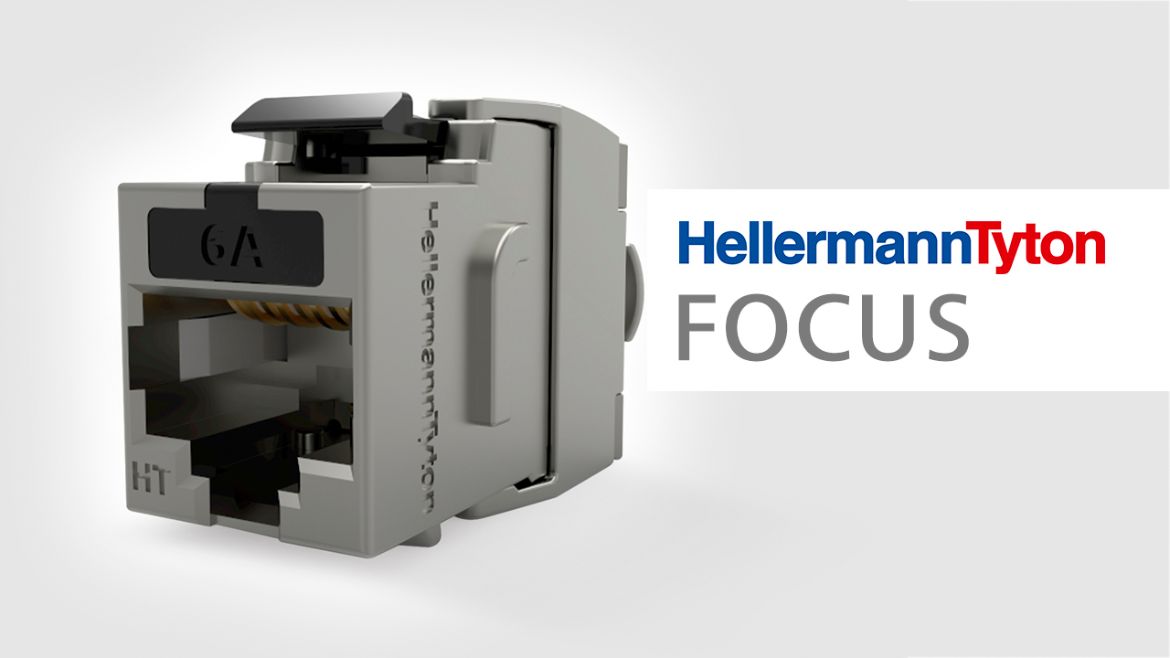

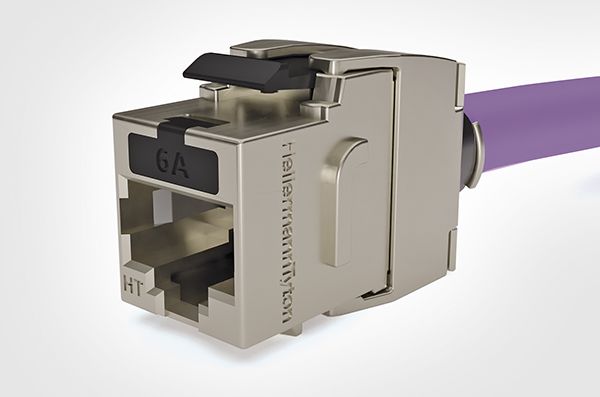

Tool-free C6A HTC Keystone Jack

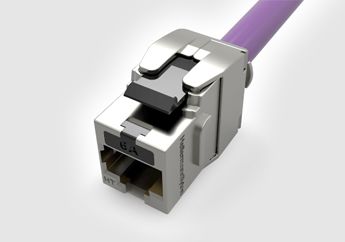

The 'HTC Series' Category 6A Shielded Keystone Jack is a precise component engineered for robust network infrastructure, reliably facilitating high-speed data transmission up to the 10 Gigabit standard at 500MHz. It adheres completely to advanced powering requirements, offering full support for PoE++ Type 4.

The comprehensive 360° Shielding mitigates interference and is designed to manage thermal loads associated with high-power PoE applications, ensuring sustained performance.

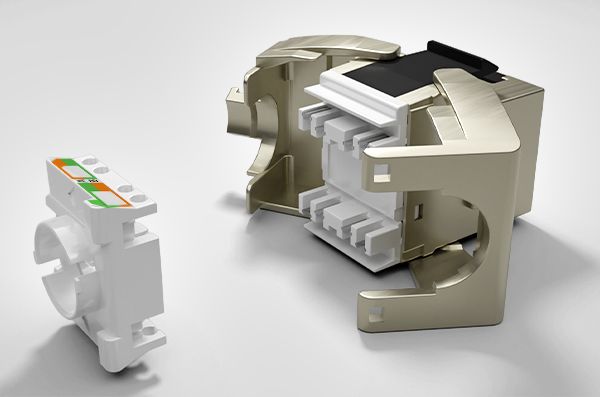

Thoughtful design features include a shortened body for adaptability in restrictive installation environments, and a tool-free termination mechanism to ensure efficient on-site deployment without requiring specialised tools.

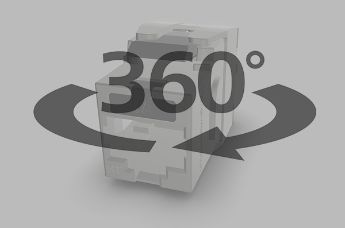

View in 3D

You can spin around (swipe or click and hold left hand mouse button) , zoom in (pinch fingers or rollerball on your mouse) and open the lid and tray by clicking on the top navigation buttons.

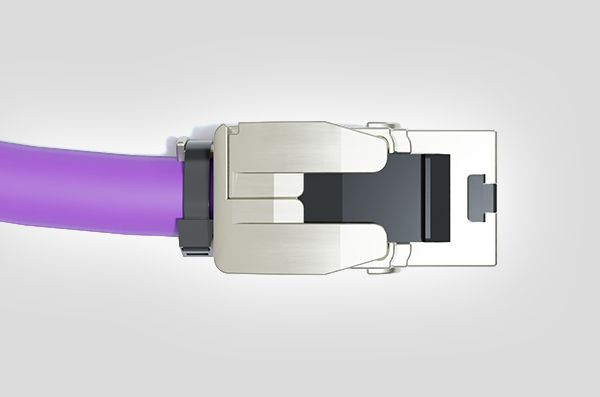

Features and benefits:

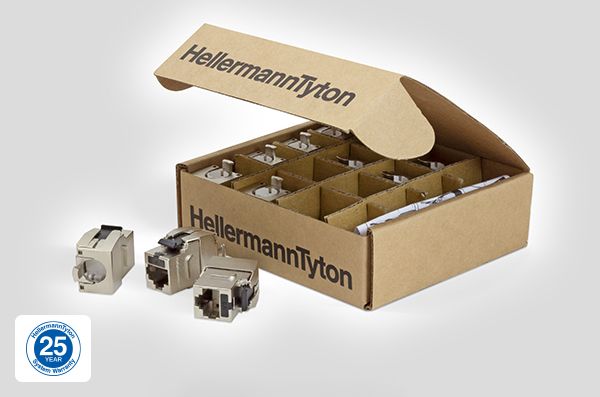

• Plastic Free Packaging

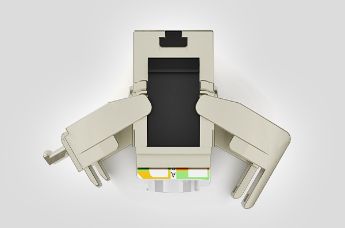

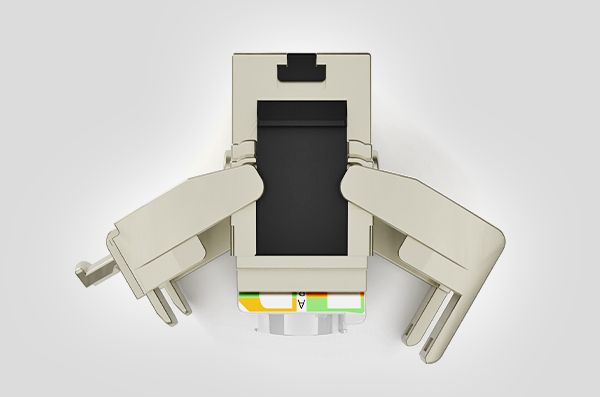

• Tool-Free Design
• Supports CAT6A 10G 500Mhz

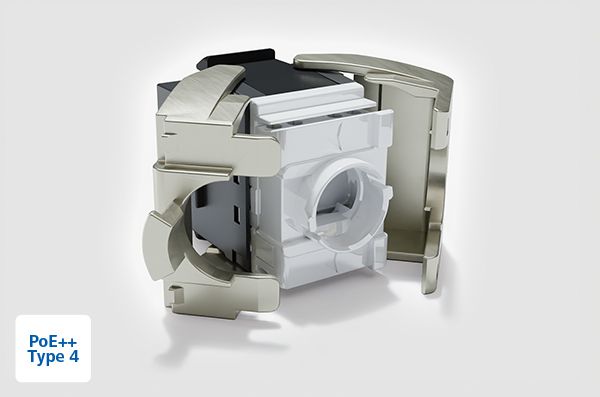

• Supports PoE++ Type 4
• Shielded to prevent Alien Crosstalk
• 3rd party tested

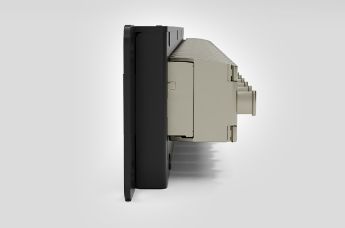

• Short Jack length to support restrictive spaces

Power. Performance. Reliability. Future-Ready.

The keystone jack is a fundamental part of a modular permanent link, especially where PoE applications are required. Category 6A keystones jacks must be able to safely and efficiently handle the high current required to deliver up to 90w of power to modern, demanding devices.

The importance of having a C6A jack as part of a full end to end Category 6A cabling solution that supports PoE++ Type 4 comes down to performance, safety, and future-proofing.

Here is a breakdown of the key reasons:

• Power Delivery Requirements:

  • PoE++ Type 4 (IEEE 802.3bt) can deliver up to 90–100 watts of power over Ethernet. This is essential for powering high-demand devices like: Pan-Tilt-Zoom (PTZ) cameras, Wireless access points (Wi-Fi 6/6E), LED lighting systems and Building automation devices

  • A component compliant C6A jack designed, tested and verified with PoE++ in mind ensures the contacts and internal design can handle the higher current without overheating or degrading

• Heat Dissipation and Safety

  • A Higher wattage means more current flowing through the cable and connectors

  • If a C6A keystone jack is not designed and tested to support PoE++ Type 4 effectively, it can lead to: Excessive heat buildup and potential failure or fire hazards

  • C6A jacks supporting PoE++ are engineered with materials and designed to minimize heat rise and maintain performance under load

• Maintaining Network Performance

  • PoE++ Type 4 uses all four pairs in the cable for power delivery

  • A compliant C6A jack ensures: Low contact resistance for efficient power transfer and stable signal integrity for 10G Ethernet speeds

  • This prevents issues like signal loss or intermittent connectivity when power and data run simultaneously

• Future-Proofing Your Infrastructure

  • Many modern enterprise applications (smart buildings, IoT, AV systems) rely on high-power PoE. InstallingC6A jacks rated for PoE++ now avoids costly upgrades later as power demands increase
