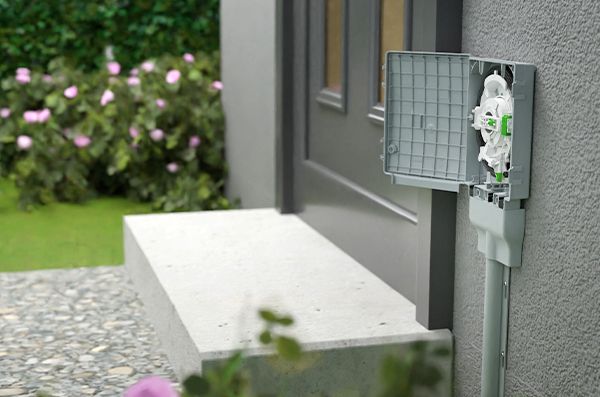

Connectorised Customer Wall Box (CCWB)

Introduction

The Connectorised Customer Wall Box (CCWB) is ideal for residential fibre-to-the-premises (FTTP) installations and offers flexible ONT placement within the property while ensuring neat and protected fibre management outside the building.

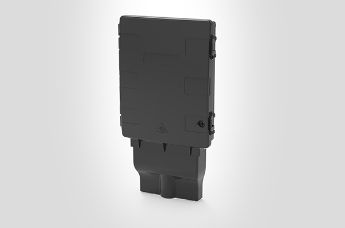

The CCWB is a compact, IP-rated Building Entry Point (BEP) that provides a secure fibre termination and demarcation location external to the premises in Fibre to the Home (FTTH) deployments. Designed to support a connectorised approach, the CCWB offers flexibility, speed, and ease of installation for service providers and installers.

External Fibre Demarcation & Transition Point
- Seamlessly manages the interface between the external fibre network and internal fibre routing, allowing for clean handover and flexible in-property ONT placement.

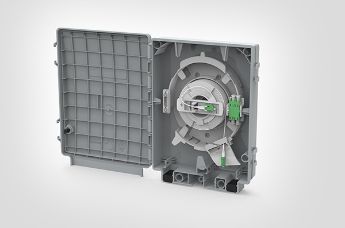

Integrated Fibre Storage Module
- Base stores up to 30m of 1.2mm blowable fibre or 10m of 3mm aerial drop cable
- Upper section includes 15m of 1.5mm G657.A2 B2ca fibre cable, pre-terminated with an LC/APC connector and designed to be de-spooled internally.
Detachable Fibre Components
- LC Duplex or SC Simplex adaptor housed on a removable adaptor plate
- Splice holder accommodates both 3A and ANT splice protectors
- Adaptor plate also assists with fibre winding during installation
Flexible Cable Management
- 8 entry/exit ports (6 bottom, 2 rear) support cables or ducts up to 8mm diameter
- Mechanical fixings ensure cable retention and strain relief
Rugged Outdoor Enclosure
- IP54 / IK07 rated for weather and impact protection
- Constructed from UV-stable polycarbonate
- Fitted with a tamper-proof lock for added security
- Customisable front panel with 55mm x 15mm inset for logo branding
Optional Aesthetic Cover

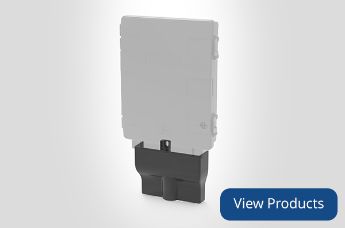

- The optional CCWB Cable Entry Cover provides a neat and professional finish to cable entries at the base of the enclosure.

View in 3D

You can spin around (swipe or click and hold left hand mouse button), zoom in (pinch fingers or rollerball on your mouse) and change various features by clicking on the top navigation buttons.

Features at a glance

Optional Aesthetic Cover
Compatible for various capping sizes

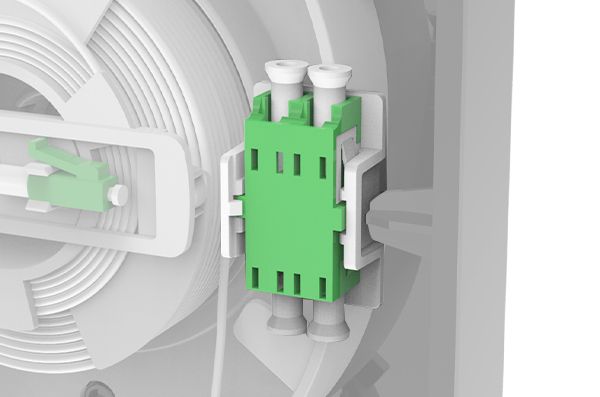

Adaptor Holder LCDX or SCSX

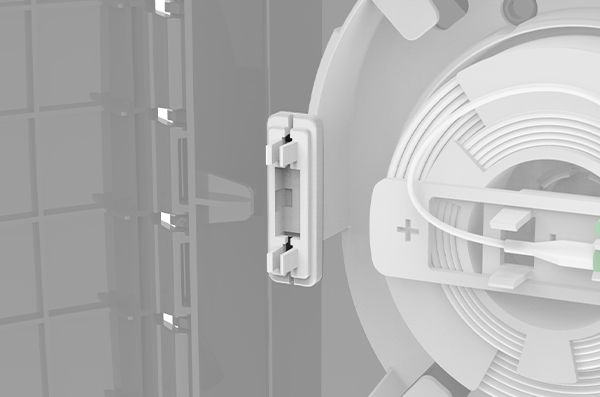

Splice Holder - 3A/ANT

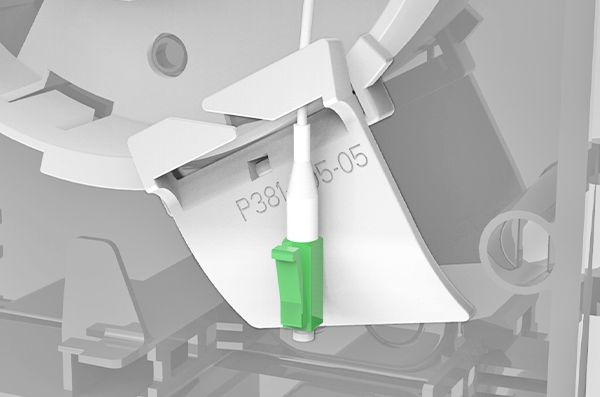

Connection Cable Bend Manager

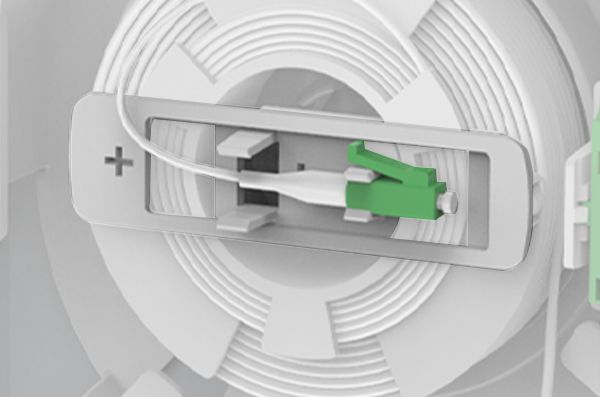

Unwind Key + Connector Holder

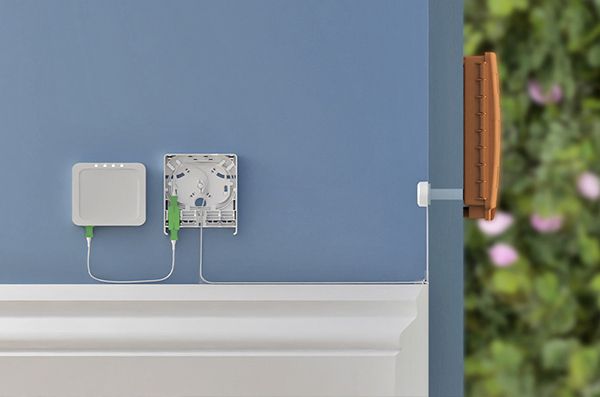

Fibre Spool 15m Pre-Terminated
