Customer Wall Box (CWB)

View in 3D

View this product in our interactive viewer

You can spin around (swipe or click and hold left hand mouse button), zoom in (pinch fingers or rollerball on your mouse) and open the lid/tray by clicking on the top navigation buttons.

Introduction

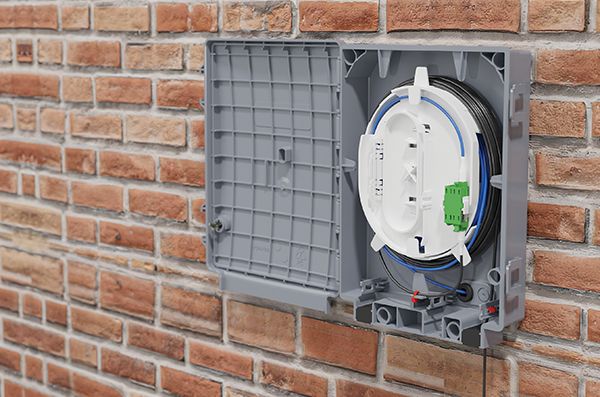

Customer Wall Box CWB

The CWB has been designed as a Building Entry Point (BEP) to provide a fibre termination and demarcation point external to the connected premise in a Fibre to the Home (FTTH) network.

The CWB is an IP54/IK07 rated enclosure manufactured from UV stable polycarbonate. The enclosure is fitted with a tamper-proof lock and a 55 x 15mm inset position on the front cover that allows for a customer logo to be moulded.

The closure has a total of 8 entry points, 6 in the bottom and 2 in the rear, which will manage cable/ducts up to a maximum diameter of 8mm. Mechanical fixing is provided to secure all incoming/outgoing cables/blown fibre ducts and to provide strain relief where necessary. A fibre storage module allows for the management and storage of up to 30m of a blowable fibre unit (nominal diameter 1.2mm) or 10m of aerial drop cable (nominal diameter 3mm).

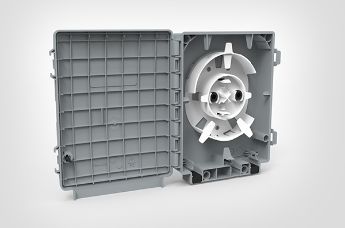

A dedicated customer drop tray houses a maximum of 2 x LC Duplex or SC Simplex adaptors (1 x LC/APC DX Adaptor provided as standard) and has been specifically moulded to secure 3A splices.

Two types of seals are available for different cable OD (3.0-8.0mm seal and 10.0mm seal).

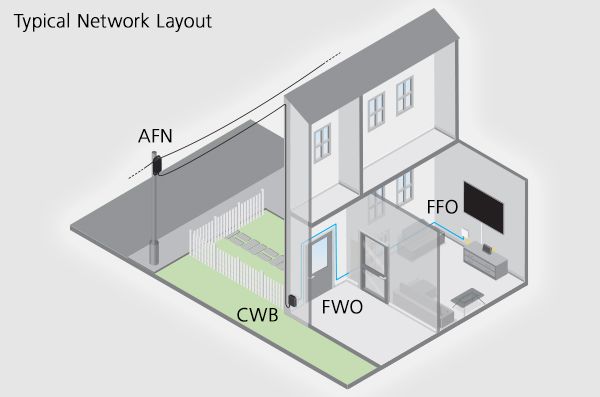

Typical Network Setup

Features and benefits

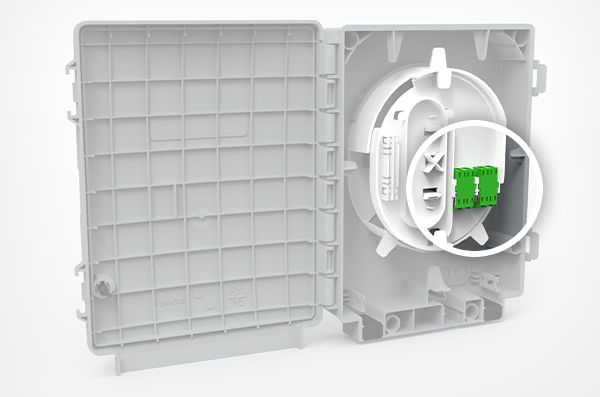

  • Maximum 4 Customer Connections
  • 6 Entry/Exit Ports at the base max. 8mm
  • 2 Entry/Exit Ports at the rear max. 6.4mm
  • Accommodation for 2 LC Duplex/SC Simplex Adaptors
  • Maximum 4 x 3A splices
  • IP54

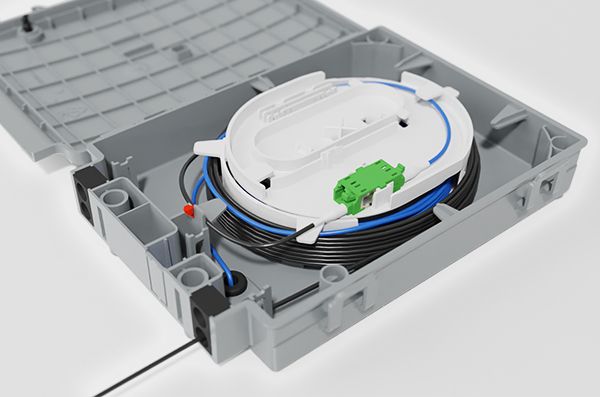

  • Storage for excess fibre
  • Tamperproof
  • Low profile design 198 x 154 x 44mm (H x W x D)

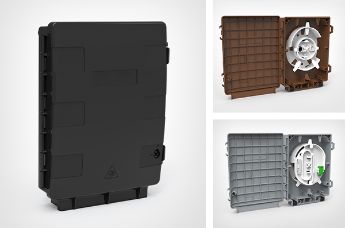

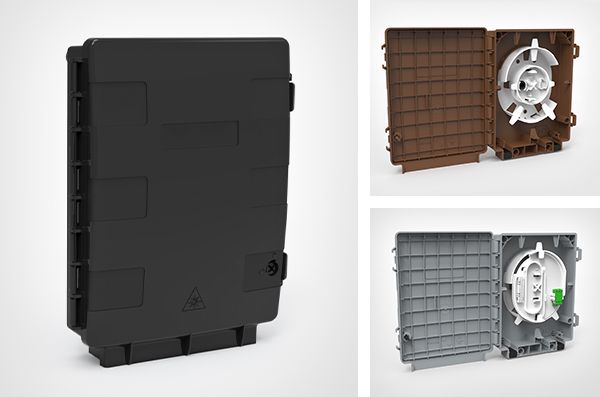

  • Housing colour: Light Grey (RAL 7040) or Black (other colours available subject to MOQ)

Features at a glance

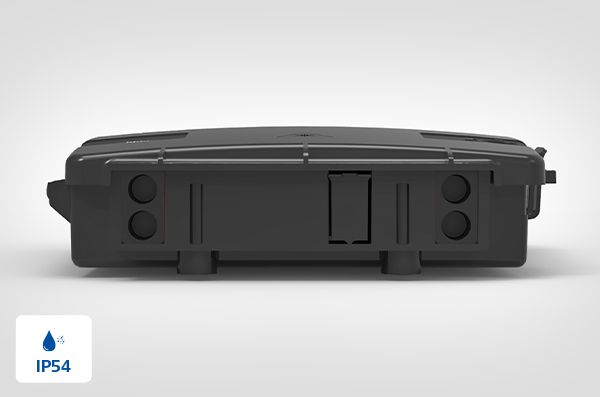

IP54 / IK07 / UV Stable

IP54 / IK07 / UV Stable

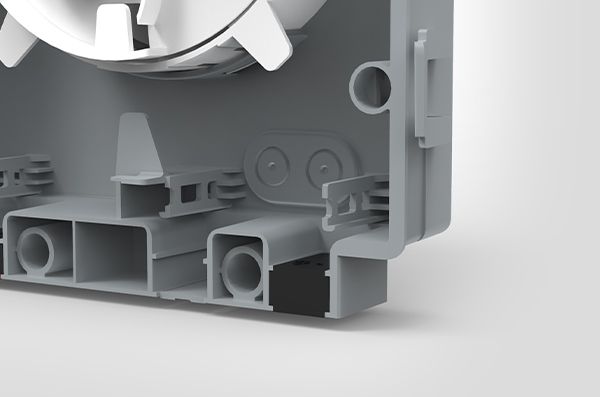

6 Entry/Exit base ports (max. 8mm)

6 Entry/Exit base ports (max. 8mm)

Max. 4 customer connections

Max. 4 customer connections

Choice of colours (black/grey)

Choice of colours (black/grey)

Storage for excess fibre

Storage for excess fibre

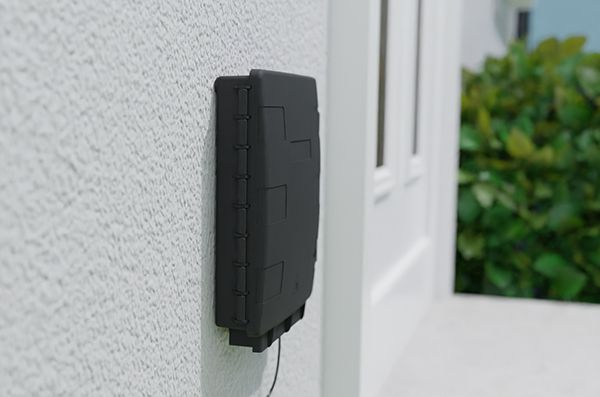

Low profile

Low profile
