Fibre Facade Enclosure (FFE) 12 Drops

View in 3D

View this product in our interactive viewer

You can spin around (swipe or click and hold left hand mouse button), zoom in (pinch fingers or rollerball on your mouse) and open the lid/tray by clicking on the top navigation buttons.

Introduction

New Fibre Facade Enclosure (FFE) 12 Way from HellermannTyton

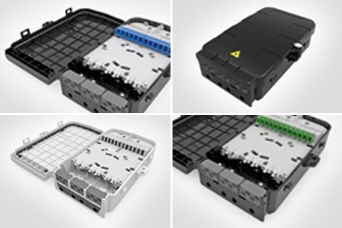

Flexibility with the Fibre Facade Enclosure (FFE)

The Fibre Facade Enclosure (FFE) provides a cost effective secure solution for installing pre-terminated drop cables in Fibre to the Home (FTTH) applications. The fibre enclosure has been designed to physically separate the feeder cable 250μm fibres, which will be spliced by a skilled technician at the initial install, from the pre-terminated connectorised drop cables which may be installed at a later date and are likely to be completed by a lower skilled installer. It can be mounted aerially or at ground level to deliver up to 12 drop cable customer connections.

The Fibre Facade Enclosure is an IP55/IK09 rated enclosure manufactured from UV stabilised polymer. Features are included to provide for mounting on a pole or building facade. The fibre enclosure is supplied in black or grey as standard (other colours are available MOQ dependent) and has provision for a moulded customer logo if required. The enclosure consists of 3 separate fibre management areas:

  • Inbound Cable Management
  • Fibre Splice Management Area
  • Drop Cable Management

Features and Benefits

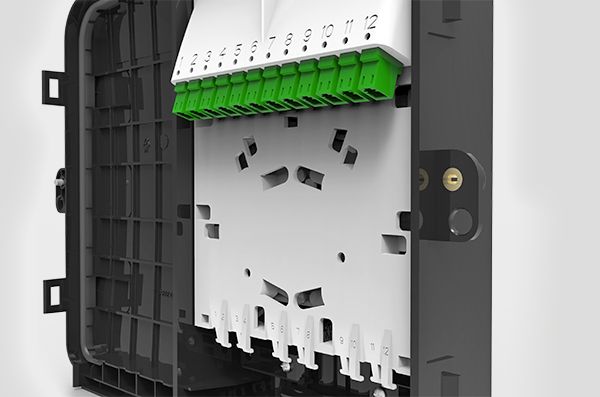

Features and Benefits of the FFE
  • Separation of spliced feeder cable from connectorised drop cables
  • 12 LC or SC customer connections
  • Accommodates 1 x Mid-Span and 2 Spur Cables
  • 12 outbound ports
  • Positive fibre management (30mm min bend radius)
  • IP55 and IK09 rating
  • Tamper-proof
  • Pole or building facade mounting features
  • Low profile
  • Range of colours

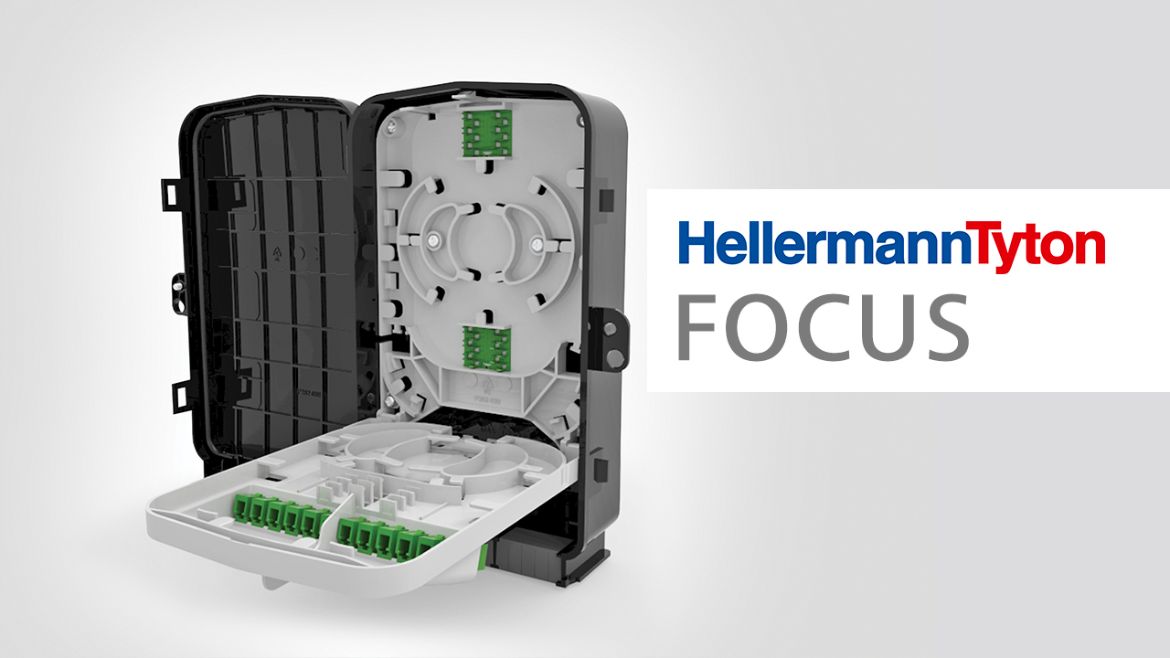

Video of features and benefits

Fibre Facade Enclosure 12 Way
