Versatile Routing Management System for Street Cabinets
Versatile Routing Management System

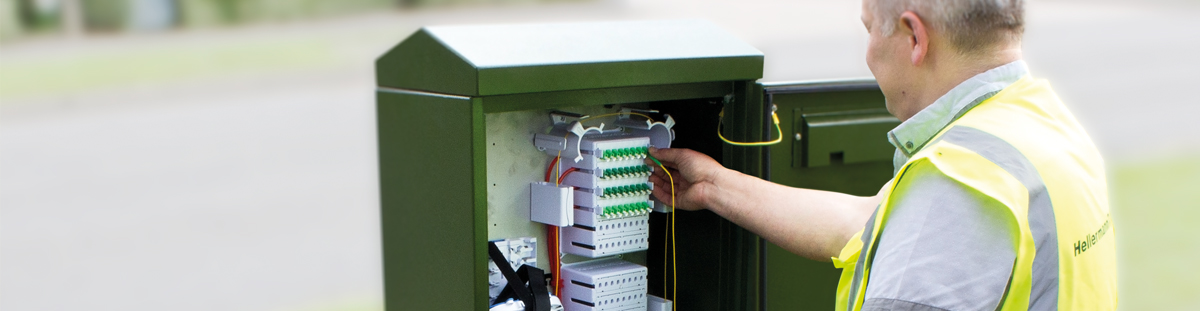

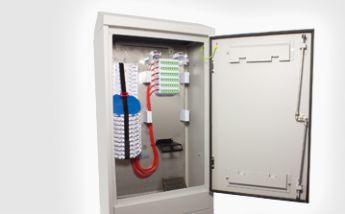

The connectorised fibre PoC and PoP are flexible fibre management systems, designed to be configured in an extensive range of cabinets. The two standard systems offer either 48 LC Simplex connections (expandable up to 96) in a Stainless Steel cabinet or 96 LC Simplex connections in a Polycarbonate cabinet. Other configurations may be available to meet more exacting requirements - please contact HellermannTyton for further information.
The systems are presented in a point to multipoint design with positive fibre management for both 250μm and 900μm fibre. Additional loop storage is provided for installations with loop through applications. The cabinets are supplied with 1 x 8 splitter assemblies, fibre splice trays, drop patch modules, drop patch module holders, drop cable managers and customer drop management brackets to accommodate 8mm blown duct tubes.
Each splitter assembly consists of a pre-assembled fibre splice tray with a single pre-installed 1 x 8 splitter and 1 3A splice bridge. The splitter is pre-connectorised with 8 LC Simplex 900μm output fibres. These are routed to an 8 port LC Simplex drop patch module and connected to 8 LC Simplex adaptors. The additional trays are fitted with 2 splice bridges to accommodate a maximum of 16 3A splices.
Features and Benefits
- Stainless Steel Cabinet
- 48 Port Point of Connection (expandable to 96)
- Duct support bracket for 48 drops (expandable to 96)
- Polycarbonate Cabinet
- 96 Port Point of Connection
- Duct support bracket for 98 drops
- LC Simplex (UPC/APC) presentation
- Positive fibre management throughout
- Support for 250μm and 900μm fibre routing and management
- Modular construction allows for build and grow network
- Quick and easy installation of additional trays/drop patch modules
- Fibre storage basket for loop through applications
View in 3D
Versatile Routing Management System
Connectorised PON Street Cabinet Accessories
The Versatile Routing Management System has a modular construction that allows for expansion. The following products can be used for this.

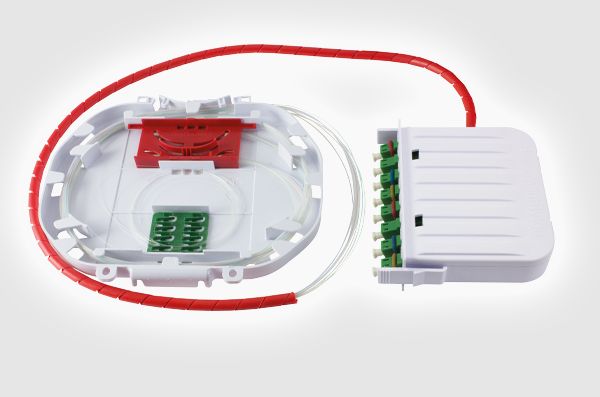

The splitter assembly consists of a pre-assembled fibre splice tray with a single pre-installed 1 x 8 splitter and 1 3A splice bridge. The splitter is pre-connectorised with 8 LC Simplex 900μm output fibres. These are routed to an 8 port LC Simplex drop patch module and connected to 8 LC Simplex adaptors.
Customer Drop Management Bracket

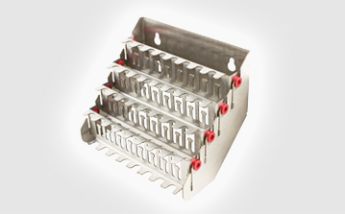

The Customer Drop Support Brackets are manufactured from stainless steel and provide individual support and anchoring for the customer drops from the Drop Patch Module Holder. The brackets are available in 3 sizes
32, 48 or 64 drops and can accommodate 5, 7 or 8mm diameter drops. The brackets can be retrospectively fitted allowing the system to expand as customer uptake increases.

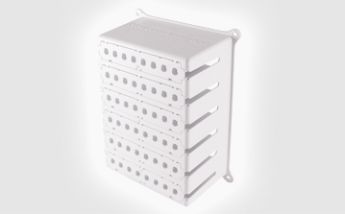

Drop Patch Management Holder
The Drop Patch Module Holder has been designed to be retrospectively fitted allowing a pre-existing installation to be expanded. Each Drop Patch Module Holder accommodates a maximum of 6 Drop Patch Modules, each of which accommodates 8 LC Simplex connections, which can be added to the system retrospectively.
