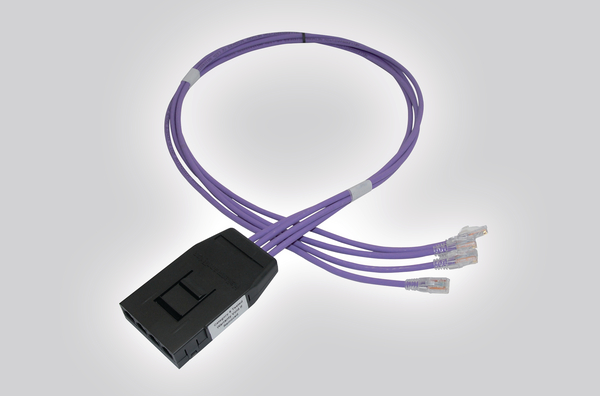

RapidNet 4 Port Category 6 Cassette to RJ45 Plug
Art.-No. 859-40084 | RN04UC6-CAPLXX-10.0M Details

  • Exceeds Category 6 performance standards
  • 24 Ports in 1U
  • Factory pre-terminated and tested
  • Reduce installation times by up to 85%
  • Ideal solution when connecting with active equipment
  • Backward compatible with Category 5e, Category 5 and voice
Show more
Application The RapidNet Cat6 solutions are designed to support any voice and data cabling system that is capable of running over their respective systems and are backwards compatible with existing Cat5E and Cat5 and voice network infrastructure. The 4 port RapidNet cassette to RJ45 plug presents 4 RJ45 ports in one cassette and 4 RJ45 moulded plugs at the other. The 4 port RapidNet cassette to RJ45 plug solution presents 4 RJ45 ports in one cassette with 6 cassettes fitting into the panel. A fully loaded panel presents 24 ports in 1U of space. RapidNet can reduce installation time by up to 85% and is designed to meet the exacting standardss of mission critical installations where network down time and poor performance is not an option. The 4 core bundled cables have been specially designed to eliminate potential alien cross talk issues and used a clear tape to reduce the bundle ensuring a hign quality, well managed installation.
Colour Violet (VT)
Connector Type RJ45 UTP
Local order number RN04UC6-CAPLXX-10.0M
Pack Cont. 10.0m
PART DESCRIPTION RN04UC6-CAPLXX-10.0M
Performance Category Category 6 (Class E)
Port count 4
Product Description The RapidNet 4 Port Cassette to RJ45 Plug is pre- terminated with 4 RJ45 ports in the cassette at one end and RJ45 plugs at the other end, with 6 cassettes fitting into a standard 4 Port RapidNet Patch Panel. A fully loaded panel presents 24 ports in 1U of space. The cassette to RJ45 plug cross-connect solution reduces the risk of damage to the ports on expensive active equipment. When used for server connectivity it simplifies the management of connections to each unit without accessing the rear of the data cabinets.
Product Family Cassette to RJ45 Plug
Product Group RapidNet 4 Port Category 6
Short Description RapidNet 4 Port Category 6 Cassette to RJ45 Plug
Technical Description The RapidNet Cassette has been designed to provide a jack life of a minimum of 1000 insertions. The 4 RJ45 plugs are manufactured to a uniform length (staggered lengths are available on request to allow effective cable management). The cassette is manufactured with a simple push clip mechanism and polarising clips to prevent incorrect insertion. Rear cable management is provided within the RapidNet Cassette with integral strain relief which provides protection to all the cables and their terminations. All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C Category 6 standards. All RapidNet Category 6 cables are made with LS0H material, complying with the latest European fire ratings. NB. Part Number is given for a 10m loom as an example. Lengths are available from 1m to 90m.
Depth (D) 116mm
Height (H) 28mm
Length (L) 10.0m
Width (W) 70mm
Country of Origin GB
Dimensions W x H x D 70 mm x 28 mm x 116 mm
GTIN-13 / EAN 5022660936388
