17/08/2022

Cassette to Keystone Jack
Art.-No. 859-35448 | RN06UC6-CAKJXX-10.0M Details

  • Exceeds Category 6 performance standards
  • 24 Ports in 1U
  • Factory pre-terminated and tested
  • Ideal solution for 'to the desk' installations
  • Compatible with Euro or LJ6C Modules
  • Can fit in both floor boxes and wall boxes
  • Backward compatible with Category 5e, Categroy 5 and voice
Show more
Application RapidNet can reduce installation time by up to 85% and is designed to meet the exacting standards of mission critical installations where network down time and poor systems performance is not an option. The RapidNet cassette to keystone jack option gives the installer and end users added flexibility at the desk or 'work area' end. The keystone jack can be easily clipped into a selection of modules that can be fitted into floor boxes or wall mounted face plates. The 6 core bundled cable have been specially designed to eliminate potential alien cross talk issues and uses a clear tape to reduce the bundle, ensuring a high quality, well managed installation.
Application 2 The RapidNet CAT6 solutions are designed to support any voice and data cabling system that is capable of running over their respective systems and are backwards compatible with existing CAT5E, CAT5 and voice network infrastructure.
Colour Violet (VT)
Connector Type RJ45 UTP
Local order number RN06UC6-CAKJXX-10.0M
Pack Cont. 10.0m
PART DESCRIPTION RN06UC6-CAKJXX-10.0M
Performance Category Category 6 (Class E)
Port count 6

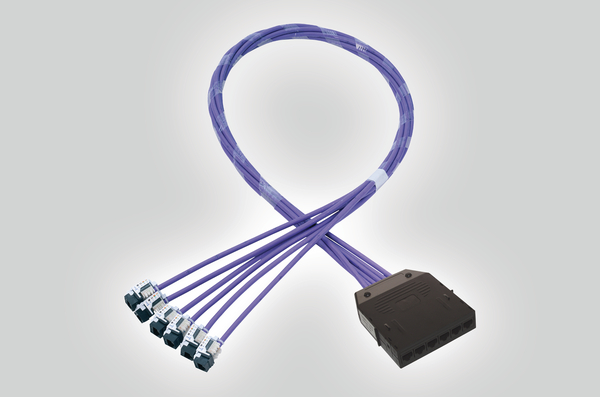

Product Description The RapidNet 6 Port Cassette to Keystone Jack is pre- terminated with 6 RJ45 ports in the cassette at one end and keystone jacks at the other end. The RapidNet 6 Port Cassette to Keystone Jack option presents 6 RJ45 ports in the cassette at one end and 6 Keystone Jacks at the other end, with 4 cassettes fitting in to a standard RapidNet Patch Panel. A fully loaded panel presents 24 ports in 1U of space. The cassette to Keystone Jack option is designed to support ‘to the desk’ installations, with the Keystone Jack fitting being easily clipped into a selection of modules that can be fitted into floor boxes or wall mounted in face plates.
Product Family Cassette to Keystone Jack
Product Group RapidNet 6 Port Category 6
Technical Description The RapidNet Cassette has been designed to provide a jack life of a minimum of 1000 insertions. The cassette is manufactured with a simple push clip mechanism and polarising clips to prevent incorrect insertion. The Keystone Jacks are available in a range of colours and can be packaged with a heat-shrink pull sock to protect the jacks during installation. The Keystone Jacks are manufactured to a uniform length or a staggered length is available on request to allow effective cable management. Rear cable management is provided within the RapidNet Cassette with integral strain relief which provides protection to all the cables and their terminations. All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C Category 6 standards. All RapidNet Category 6 cables are made with LS0H material, complying with the latest European fire ratings. NB. Part Number is given for a 10m loom as an example. Lengths are available from 5m to 90m. 
Depth (D) 130mm
Height (H) 27mm
Length (L) 10.0m
Width (W) 103mm
Country of Origin GB
Dimensions W x H x D 103 mm x 27 mm x 130 mm
GTIN-13 / EAN 5022660946141
