Hellipse NZDF SE-A Splice Trays with ANT/Splitter Bridges
Art.-No. 857-40423 | TRAY-NZDF-SE-B-SP/ANT-06 Details

PART DESCRIPTION TRAY-NZDF-SE-B-SP/ANT-06
Product Family Hellipse NZDF SE-B
Product Group Tubed Fibre Optic Splice Tray
Short Description Hellipse NZDF SE-A Splice Trays with ANT/Splitter Bridges

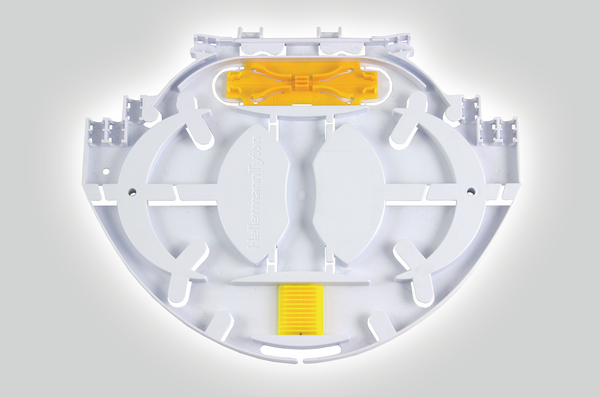

Technical Description The Hellipse NZDF SE-B is an elliptical tray designed for single element and single circuit applications which is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 184 x 148 x 7mm and the maximum splice capacity of 24 fibres is based on 24 double stacked heatshrink 3A splice protectors up to 60mm long. The Hellipse NZDF SE-B tray accepts a wide range of splice protectors and can accommodate 2 x 60 x 70 x 4mm optical splitters when using the optional splitter/3A or ANT splice bridge. A single optical splitter up to a maximum of 70 x 20 x 6mm can be fitted into the tray in place of a splice bridge. The tray has 2 pivot points to allow for mounting into a 6 tray module and is suitable for use in the FML tubed closures.
Type TRAY-NZDF-SE-B-SP/ANT-06
Type of Tray Hellipse NZDF SE-B
Depth (D) 7mm
Height (H) 148mm

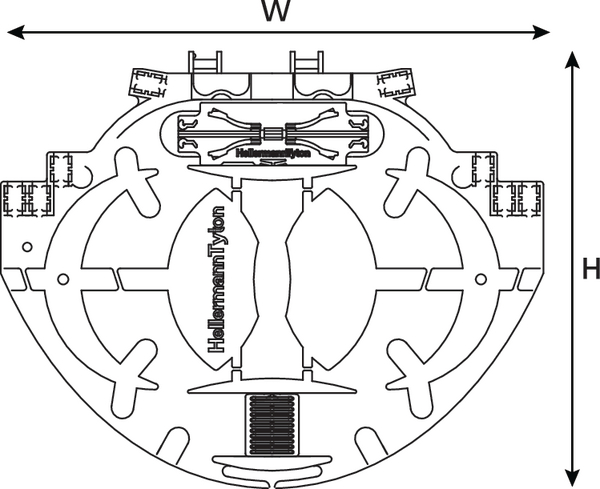

Width (W) 184mm
Country of Origin GB
GTIN-13 / EAN 5022660148996
ETIM 7.0 Key EC000762
ETIM 8.0 Key EC000762
ETIM 9.0 Key EC000762
