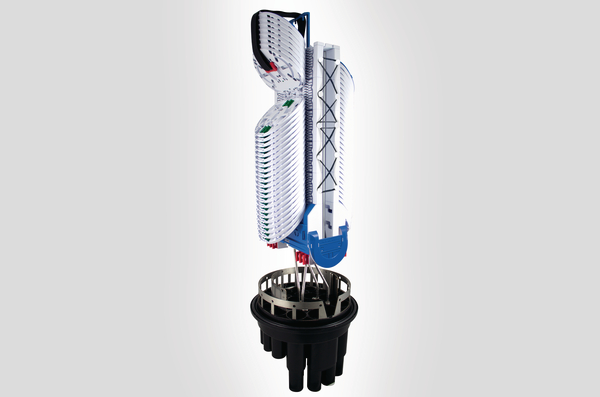

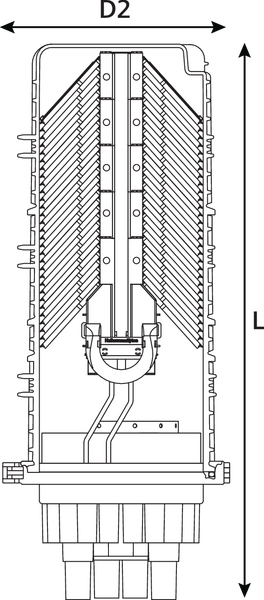

UFC IR C length double stack closure
Art.-No. 857-00535
| UFCIR-CXDCXX
|
Copied
- Maximum 1440 fibre splice capacity when using SC-B tray
- 28 round ports and 2 oval ports
- Positive fibre management to ensure consistent 30mm minimum fibre bend radii throughout
- Fibre storage area
- Bi-directional fibre routing
- Accommodates SC, SC-B and SE trays
- Maximum 12 splices per tray without double stacking
- Splitter accommodation
- Cablelok compatible for all port sizes
- Quick release cover
- Optional pressure release valve
Show more
Show less
More products in this product group:
| Colour | Black (BK) |
| Content |
UFC IR Base Anchor Rings (Inner and Outer) C-Length Cover (Dome) Quick Release Clamp Sealing ‘O’ Ring Fibre Optic Routing Module Fibre Optic Storage Unit Fibre Optic Storage Unit Lid Fibre Slot Entry Module Fibre Slot Retaining Block Reusable Cable Ties Tray Lid Tray Tool Anchor Fixing Kit (3) Spiral Binding Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 – 144 Green Marker 1 – 144 |
| Cover Type | C |
| Material | Acrylonitrile Butadiene Styrene (ABS), Polyamide (PA) |
| Method of Sealing | Cablelok, Heatshrink |
| PART DESCRIPTION | UFCIR-CXDCXX |
| Package Content | 1 |
| Package Content packed in | box |
| Port | L, LM, T, S, B |
| Port count | 1, 1, 2, 10, 16 |
| Product Family | C Length Double Stack |
| Product Group | UFC Integrated Routing Closure |
| Short Description | UFC IR C length double stack closure |
| Technical Description |
The UFC Integrated Routing (IR) C Length Double Stacked closure is available with a Cablelok (Polypropylene) or Heatshrink (Flame Retardant Polypropylene) base. The base configuration of 28 round ports and 2 oval ports covers a cable diameter range of 4.0 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and the backplanes are aluminium extrusions which can accommodate up to 60 IR SE trays or 120 IR SC/SC-B trays or a combination of SE, SC and SC-B trays. The position of the mounting system allows easy access for the routing of the fibre on to the trays and provides storage space between the two backplanes for the storage of fibre loops. The trays and fibre optic routing module are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide fibre elements in to the IR system, the foam pad on the retainer is partially cut through to accommodate a range of fibre counts. All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre and the fibre slot retaining block and tray retaining clips are coloured red to aid in identification if they are dropped. |
| Type | UFCIR-CXDCXX |
| Type of Tray | Not supplied |
| Variant | Outdoor FTTx Enclosures |
