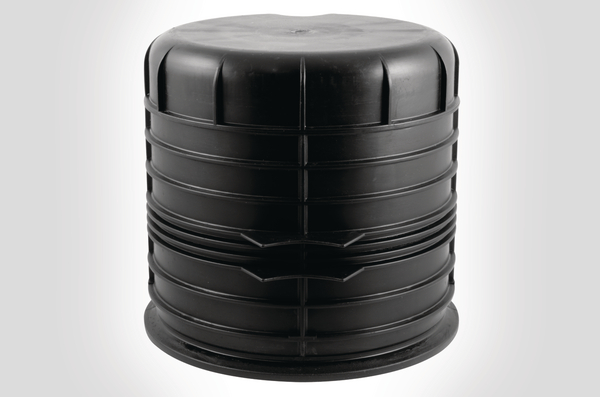

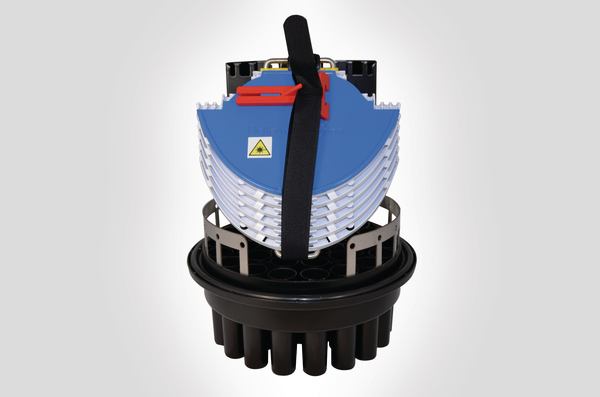

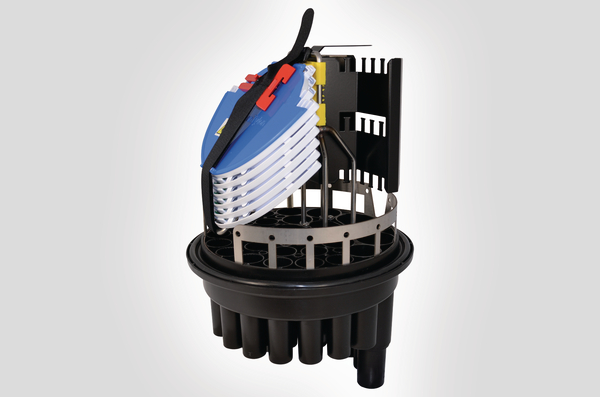

UFC A length tubed closure with heatshrink base, basket, 6 x NZDF SE-A Trays each with 2 x 3A splice protectors
Art.-No. 857-00692 | UFCTB-AXBHD11 Details

  • Maximum 72 fibre splice capacity when using NZDF SE-A trays
  • 28 round ports and 2 oval ports
  • Supplied with 6 x NZDF SE-A Trays fitted with 2 x 3A (Green) splice protectors
  • Fibre storage basket for loop through applications
  • Maximum 12 splices per tray
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional flash test valve and/or grounding feed-through
Show more
Colour Black (BK)
Content UFC Base
Anchor Rings (Inner and Outer)
A-Length Cover (Dome)
Quick Release Clamp
Sealing ‘O’ Ring
Fibre Storage Basket
Tray Support Frame
Anchor Fixing Kit (3)
6 x NZDF SE-A Trays
Tray Tool
Hook and Loop Tray Securing Straps
Transportation Tubing
Tubefix – Tube to Tray Securing Blocks
Hook and Loop Management Ties
Isopropyl Alcohol Wipes
Desiccant
Installation Guide
Marker Kit
Red Marker 1 – 12
Green Marker 1 – 12
Cover Type A
Method of Sealing Heatshrink
PART DESCRIPTION UFCTB-AXBHD11
Package Content packed in kit
Port L, LM, T, S, B
Port count 1, 1, 2, 10, 16
Product Family A Length Single Stack with Basket
Product Group UFC Tubed Closure
Qty Trays 6
Short Description UFC A length tubed closure with heatshrink base, basket, 6 x NZDF SE-A Trays each with 2 x 3A splice protectors
Splice Capacity 72
Technical Description The UFC A Length Single Stack closure with Basket is available with a Cablelok (Polypropylene) or Heatshrink (ABS/PA) base. The base configuration of 28 round ports and 2 oval ports covers a cable diameter range of 4.0 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting and support system is manufactured from Grade 304 stainless steel and is supplied 6 x NZDF SE-A trays giving a maximum of 72 fibre splices. The tubed closure and position of the mounting system allows for ease of access and traceability of the fibre into the trays and the basket provides storage space for the storage of fibre loops. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and into the trays.
Type UFCTB-AXBHD11
Type of Tray Hellipse NZDF SE-A

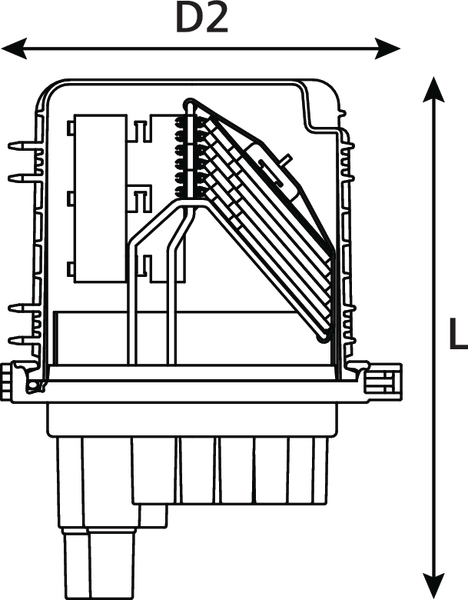

Length (mm) 400mm
Width D1 275mm
Width D2 310mm
Country of Origin GB
GTIN-13 / EAN 5022660111396
Packaging 1 - Height (m) 0.313m
Packaging 1 - Length (m) 0.5m
Packaging 1 - Qty 1
Packaging 1 - Type box
Packaging 1 - Volume (m³) 0.05039
Packaging 1 - Weight (kg) 5.2kg
Packaging 1 - Width (m) 0.322m
ETIM 7.0 Key EC002067
ETIM 8.0 Key EC002067
ETIM 9.0 Key EC002067
