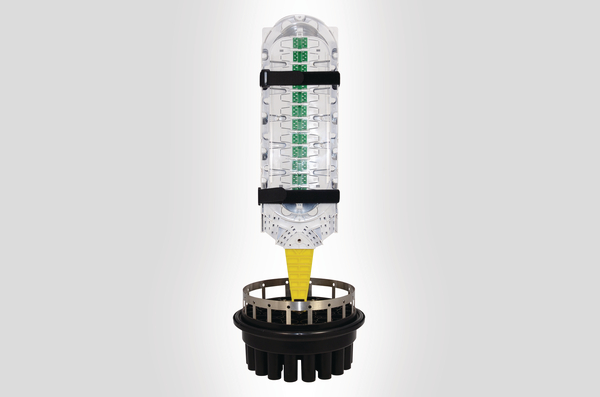

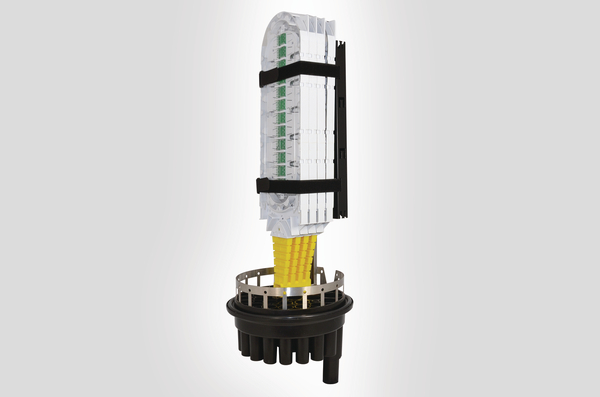

UFC C length with heatshrink base, basket and Hellamass large trays
Art.-No. 857-00768
| UFCTB-CXBHG41
|
Copied
- Maximum 576 fibre splice capacity
- 28 round ports and 2 oval ports
- Supplied with 4 x Hellamass Large 3A Splice Trays fitted with 2 x 3A (Green) splice protectors
- Maximum 72 splices per tray
- Fibre storage basket for loop through applications
- Splitter accommodation
- Cablelok compatible for all port sizes
- Quick release cover
- Optional flash test valve and/or grounding feed-through
Show more
Show less
More products in this product group:
| Colour | Black (BK) |
| Content |
UFC Base Anchor Ring C-Length Cover (Dome) Quick Release Clamp Sealing ‘O’ Ring Fibre Storage Basket (Optional) Tray Support Frame Anchor Fixing Kit (3) 4 x Hellamass Large 3A Splice Trays Hook and Loop Tray Securing Straps Transportation Tubing Cable Ties Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 – 25 Green Marker 1 – 25 |
| Cover Type | C |
| Method of Sealing | Cablelok, Heatshrink |
| PART DESCRIPTION | UFCTB-CXBHG41 |
| Package Content packed in | kit |
| Port | L, LM, T, S, B |
| Port count | 1, 1, 2, 10, 16 |
| Product Family | C Length with Hellamass Large Trays |
| Product Group | UFC Tubed Closure |
| Qty Trays | 4 |
| Short Description | UFC C length with heatshrink base, basket and Hellamass large trays |
| Splice Capacity | 288 |
| Technical Description |
The UFC C Length Single Stack closure is available with a Cablelok (Polypropylene) or Heatshrink (Flame Retardant Polypropylene) base. The base configuration of 28 round ports and 2 oval ports covers a cable diameter range of 4.0 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting and support system is manufactured from Grade 304 stainless steel and is supplied 4 x Hellamass Large trays giving a maximum of 288 fibre splices The tubed closure and position of the mounting system allows for ease of access and traceability of the fibre in to the trays and the basket provides storage space for the storage of fibre loops. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and in to the trays. The rear of the trays provides storage space for managing excess fibre. |
| Type | UFCTB-CXBHG41 |
| Type of Tray | Hellamas Large |
