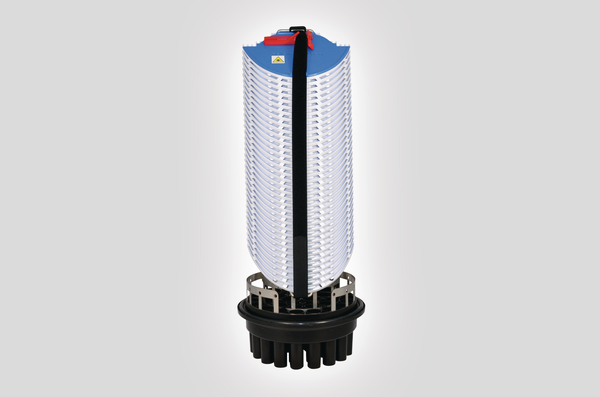

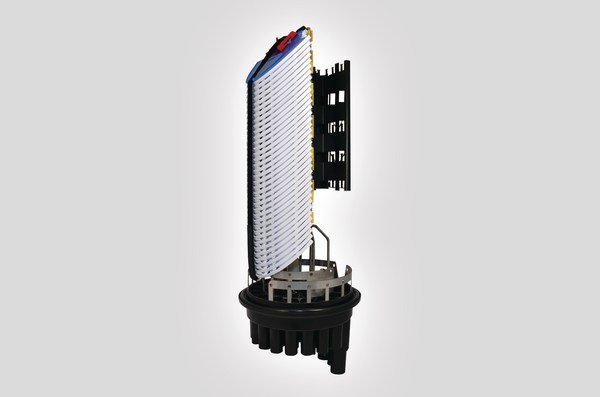

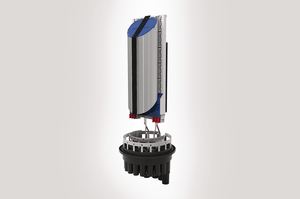

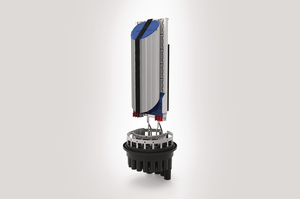

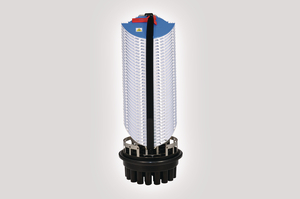

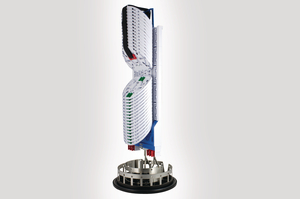

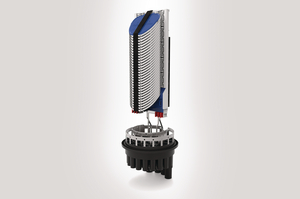

UFC C length tubed closure with heatshrink base, basket and 36 x SMF SE-A 3A splice trays
Art.-No. 857-00738 | UFCTB-CXBHH6X Details

  • Maximum 864 fibre splice capacity
  • 28 round ports and 2 oval ports
  • Supplied with 36 x SMF SE-A 3A Splice Trays
  • Fibre storage basket for loop through applications
  • Maximum 24 splices per tray
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional flash test valve and/or grounding feed-through
Show more
Colour Black (BK)
Content UFC Base
Anchor Rings (Inner and Outer)
C-Length Cover (Dome)
Quick Release Clamp
Sealing ‘O’ Ring
Fibre Storage Basket
Tray Support Frame
Anchor Fixing Kit (3)
36 x SMF SE-A 3A Splice Trays
Tray Tool
Hook and Loop Tray Securing Strap
Transportation Tubing
Tubefix – Tube to Tray Securing Blocks
Hook and Loop Management Ties
Isopropyl Alcohol Wipes
Desiccant
Installation Guide
Marker Kit
Red Marker 1 – 48
Green Marker 1 – 48
Cover Type C
Method of Sealing Cablelok, Heatshrink
PART DESCRIPTION UFCTB-CXBHH6X
Package Content packed in kit
Port L, LM, T, S, B
Port count 1, 1, 2, 10, 16
Product Family C Length Single Stack with Basket
Product Group UFC Tubed Closure
Qty Trays 36
Short Description UFC C length tubed closure with heatshrink base, basket and 36 x SMF SE-A 3A splice trays
Splice Capacity 864
Technical Description The UFC C Length Single Stack closure with basket is available with a Cablelok (Polypropylene) or Heatshrink (Flame Retardant Polypropylene) base. The base configuration of 28 round ports and 2 oval ports covers a cable diameter range of 4.0 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting and support system is manufactured from Grade 304 stainless steel and is supplied 36 x SMF SE-A trays giving a maximum of 864 fibre splices. The tubed closure and position of the mounting system allows for ease of access and traceability of the fibre on to the trays and the basket provides storage space for the storage of fibre loops. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
Type UFCTB-CXBHH6X
Type of Tray Hellipse SMF SE-A

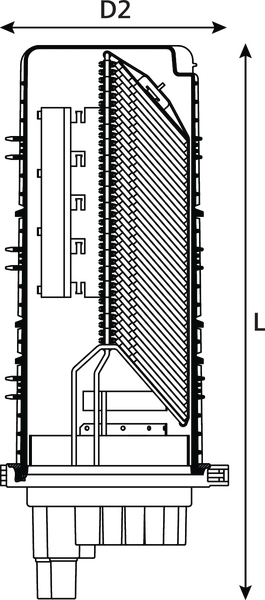

Length (mm) 749mm
Width D1 275mm
Width D2 310mm
Country of Origin GB
GTIN-13 / EAN 5022660111990
Packaging 1 - Height (m) 0.318m
Packaging 1 - Length (m) 0.858m
Packaging 1 - Qty 1
Packaging 1 - Type box
Packaging 1 - Volume (m³) 0.09031
Packaging 1 - Weight (kg) 8.2kg
Packaging 1 - Width (m) 0.331m
ETIM 7.0 Key EC002067
ETIM 8.0 Key EC002067
ETIM 9.0 Key EC002067
