GigaDuct fibre raceway system

What is GigaDuct?

GigaDuct fibre raceway system

GigaDuct is a robust, scalable cable management system engineered specifically for organising and protecting optical fibre cables in the data centre environment. Co nstructed with precision using halogen-free, flame-retardant materials, it provides a dedicated pathway that prevents cable congestion, minimises physical stress on fibres, and facilitates efficient cable management. Its tool-free, click-fit design ensures rapid installation and easy modifications, while the integrated bend radius contr ol consistently protects your critical fibre infrastructure.

Whether you are setting up a new data centre or upgrading an existing one, HellermannTyton’s GigaDuct fibre raceway system offers unmatched versatility and reliability, ensuring optimal network performance and longevity.

GigaDuct fibre raceway system

Standards and requirements:

  • ISO 9001 Certified Quality Management System by BSI
  • Halogen Free, fire retardant thermoplastic
    • UL94V-0 for 100, 200 and 300mm ducting
    • UL94V-1 for 50mm ducting
  • UL2024A standard compliance
  • EU RoHS compliant (100% lead-free)
  • GR-63 Core Earthquake test compliance (as part of NEBS compliance for physical protection)

Key benefits of using a fibre raceway system:

  • Quick and easy installation: Once cut to size, installation is tool free and can be easily assembled, disassembled and reused.
  • Protects and secures: Fibre optic cables are delicate and can easily be damaged if they are not properly protected. Fiibre raceway system provides a safe and secure environment for these cables, preventing them from being damaged by physical stress, such as being crushed or snagged.
  • Reduces cable clutter: Fibre raceway system helps to organise cables neatly and tidily, improving cable management and reducing clutter.
  • Enhances aesthetics: By hiding cables and keeping them organised, it can create a more professional and polished look.
  • Simplifies maintenance and upgrades: Access to cables is simplified, and new cables can be easily added or removed without disturbing the existing ductwork.
  • Provides scalability: Allows for the addition of more cables or the expansion of the network without the need to replace the entire ductwork system.

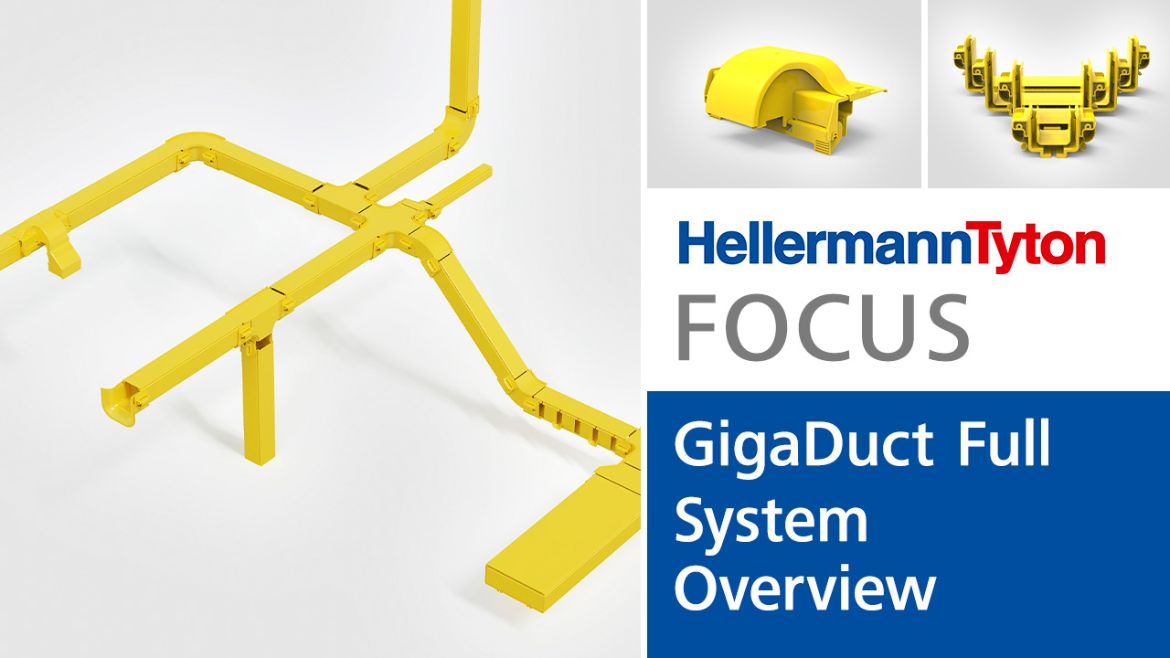

GigaDuct - Full system overview

Why use GigaDuct?

Why use GigaDuct?

Why use GigaDuct?

Superior Fibre Protection

  • Fully Enclosed System: GigaDuct is designed to completely enclose fibre optic cables, shielding them from dirt, dust, and physical damage. This is crucial for maintaining optimal fibre performance and lifespan, especially in demanding data centre or industrial environments.
  • Flame-Retardant Material: Manufactured from UL94/V0 flame-retardant plastic, the system provides enhanced safety in case of fire, meeting stringent material specifications.
  • Robust Construction: The ducting is strong enough to protect cables against rigorous conditions, ensuring the integrity of your fibre infrastructure.

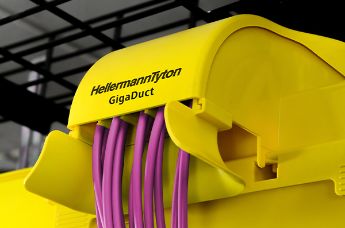

  • Bend Radius Protection: The system is designed to maintain proper bend radius for fibre optic cabling, which is critical for preventing microbend and macrobend losses that can significantly impact system performance. This is achieved through features like trumpets and carefully designed fittings.

Ease of Installation and Management

  • Easy Assembly: The GigaDuct system is designed for quick and easy assembly, requiring minimal tools (drill, screwdriver, saw for cutting channels). This speeds up installation and reduces labour costs.
  • Easy Access Covers: Unlike some systems that require disassembling the entire pathway, GigaDuct features easy-access covers. This allows for simple installation or removal of fibre optic cables at any time without disrupting the entire system, making moves, adds, and changes (MACs) much more efficient.
  • Tool-free Coupler: The GigaDuct system boasts innovative tool-free coupler which significantly reduce installation time compared to systems requiring nuts, bolts, or drilling for connections.
  • Flexible and Adaptable: The system is highly adaptable, offering various sizes (e.g., 50x50mm, 100x100mm, 200x100mm, 300x100mm) and a wide range of fittings (elbows, t-junctions, intersections, reducers, outlets) to suit diverse deployment needs and evolve with demanding market requirements.

Long-Term Reliability and Performance

  • Future-Proofing: By protecting critical fibre infrastructure and offering adaptable solutions, GigaDuct helps to future-proof network installations, accommodating growth and technological advancements.

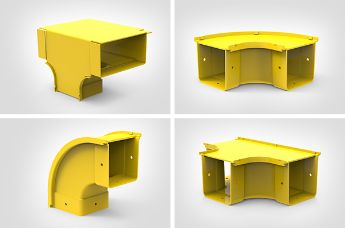

System at a glance

GigaDuct offers a robust, scalable solution designed to safeguard your fibre optic cables from damage and ensure optimal signal integrity. Its smooth, snag-free channels prevent micro-bends and macro-bends, which are common causes of signal loss.

The system's flexible design and comprehensive range of components, including various bends, t-junctions, intersections and reducers, allow for customised routing and easy expansion as your network grows. This ensures your data centre runs at peak performance with maximum uptime.

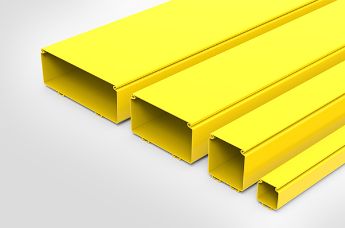

Straight Duct Lengths

Straight Duct Lengths
Solid straight duct lengths in 50, 100, 200 & 300mm

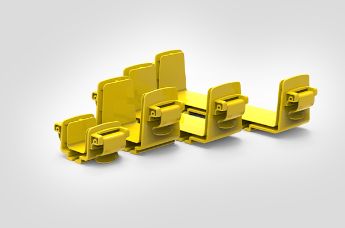

Tool-free Coupler

Tool-free Coupler
Easy, tool free connection to duct

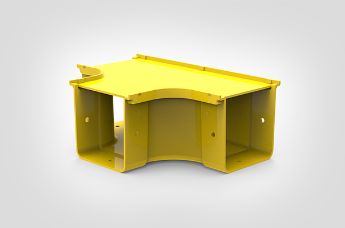

T-Junctions

T-Junctions
Horizontal or vertical

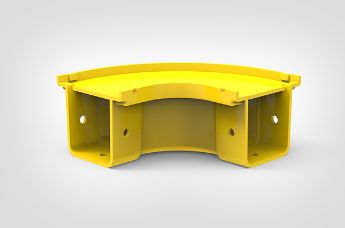

Horizontal Elbows

Horizontal Elbows
90° or 45° angles

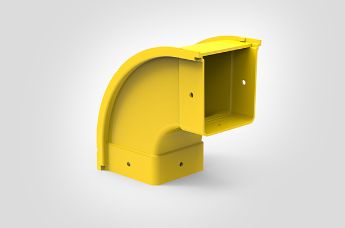

Vertical Elbows

Vertical Elbows
90° or 45° angles

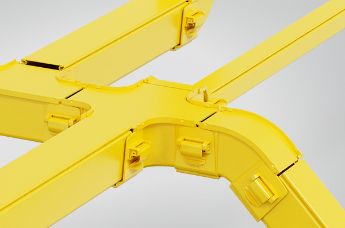

Intersections

Intersections
Straight and reducer

Interactive Product Selector

The interactive diagram below showcases some of the GigaDuct products and their potential installation locations.  If you can't find the exact product to meet your needs, don't worry our extensive range will have the right solution for you. Drop us a message and we will work with you to configure what you're looking for.

Click on the dots to learn more.
