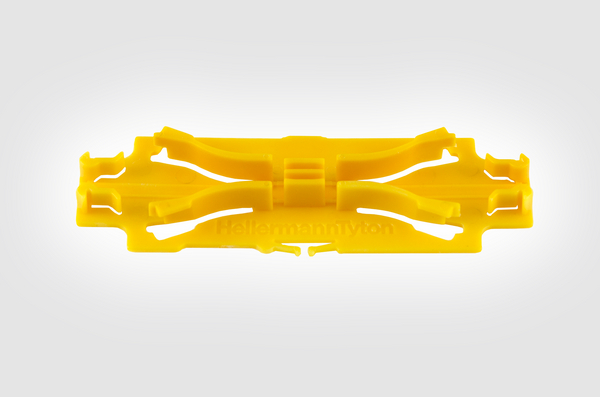

ANT Splitter/Splice Protector Holders
Art.-No. 857-40427 | BRIDGE-SP/ANT |

ANT Splitter Holder

ANT Splitter/Splice Protector Holder

ANT Splitter/Splice Protector Holder

ANT Splitter/Splice Protector Holder

Holds a maximum of 2 PLC Splitters (60 x 7 x 4mm)
Manages 2 x ANT Splice Protectors (double stacked)
Maximum splice protector length 60mm
Compatible with HellermannTyton Single Element and Hellamass Large Splice Trays

Add to watchlist

Distributors near you

More products in this product group:

ANT Splitter/Splice Protector Holders >

Base Data

Colour	Yellow (YE)
Material	Polyamide 6.6 (PA66)
PART DESCRIPTION	BRIDGE-SP/ANT
Package Content packed in	bag
Product Family	Fibre Splice Tray Accessories
Product Group	ANT Splitter/Splice Protector Holders
Short Description	ANT Splitter/Splice Protector Holders
Splice Capacity	2
Technical Description	The HellermannTyton ANT/PLC holder is suitable for use in the HellermannTyton single element and Hellamass Large splice trays. The PLC holder manages a maximum of 2 PLCs (60 x 7 x 4mm) and 2 x ANT splices (double stacked). All HellermannTyton single element splice trays accept 2 x splice protector holders excluding the Hellamass Large which holds a maximum of 24.
Type	BRIDGE-SP/ANT

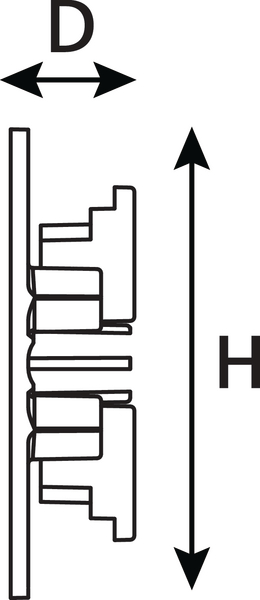

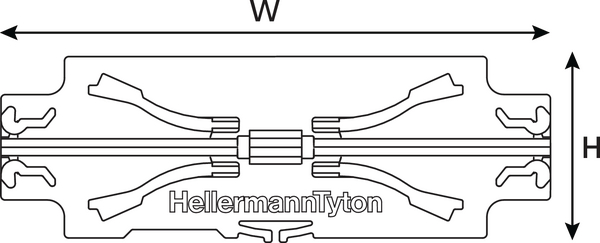

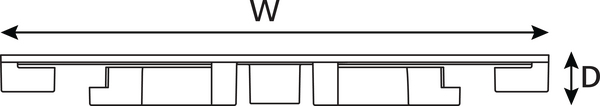

Product Dimensions

Depth (D)	6mm
Height (H)	22.5mm
Width (W)	65mm

Downloads

Specifications

ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660149030
Packaging 1 - Height (m)	0.01m
Packaging 1 - Qty	10
Packaging 1 - Type	bag
Packaging 1 - Weight (kg)	0.01kg
Packaging 1 - Width (m)	0.02m

More Information

ETIM 7.0 Key	EC000759
ETIM 8.0 Key	EC000759
ETIM 9.0 Key	EC000759
