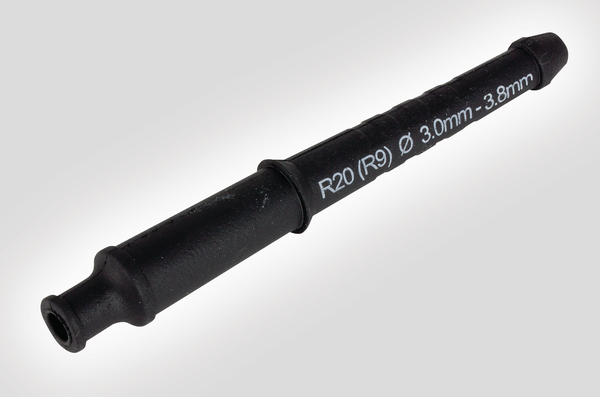

Cablelok R port
Art.-No. 857-50166 | CABLELOK-R20-10 Details

  • Cable range coverage from 1.7mm to 9.5mm
  • Multi-hole versions available to allow 2 cable drops from the same port
  • Multi-hole cable range coverage from 1.7mm – 2.0mm (R10D), 2.0mm - 3.0mm (R15D) and 3.8mm – 4.8mm (R30D)
  • Port closure plug available
  • Supplied in multiples of 1 and 10
  • Supplied with installation lubricant sachets
Show more
Cable ∅ max 3.8mm
Cable ∅ min 3.0mm
Colour Black (BK)
Content 10 x CABLELOK-R20(R9), 10 x Lubricating Wipes
Material Chloroprene Rubber (CR)
Pack Cont. 10pcs.
Package Content packed in bag
PART DESCRIPTION CABLELOK-R20-10
Port R
Port count 1
Product Family R Port Series
Product Group R Port Cablelok
Short Description Cablelok R port
Technical Description The R Port Cablelok is a mechanical seal manufactured from external grade flexible polychloroprene. There are 11 Cablelok's which cover a cable range of 1.7mm – 9.5mm including three multi-hole versions to allow two cable drops from the same port and a port plug for blocking unused R sized drop ports.
Variant Round - R
ELV compliant (Article 4 - 2) YES
Country of Origin GB
Customs Number 40169300
GTIN-13 / EAN 5022660102189
Order Unit pcs.
Packaging 1 - Height (m) 0.381m
Packaging 1 - Length (m) 0.254m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0
Packaging 1 - Weight (kg) 0.1kg
EFO Norway block number 100600
ETIM 7.0 Key EC002609
UNSPSC Key 43202218
