R Port Cablelok
Art.-No. 857-50168 | CABLELOK-R70-10 Details

  • Cable range coverage from 6.0mm to 8.5mm
  • Seals to in excess of 6m head of water
  • Highly repeatable installation - the quality of the seal is not dependant on the skill of the engineer
  • Ideal for use in hazardous areas as no heat or gas is required for installation
  • Supplied in multiples of 10
  • Supplied with installation lubricant sachets
Show more

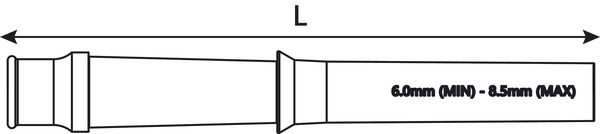

Cable ∅ max 8.5mm
Cable ∅ min 6.0mm
Colour Black (BK)
Content 10 x CABLELOK-R70(R10), 10 x Lubricating Wipes
Material Chloroprene Rubber (CR)
PART DESCRIPTION CABLELOK-R70-10
Pack Cont. 10pcs.
Package Content packed in bag
Port R
Port count 1
Product Description HellermannTyton’s patented Cablelok mechanical seal enables fast safe cable installation, providing a highly repeatable and consistent seal between the cable and the closure port with excellent non-leak performance. Tested to in excess of 6m head of water, the Cablelok does not rely on the skill and experience of the engineer to achieve the required seal, whilst installation times are typically reduced by up to 90%.
Product Family R Port Series
Product Group R Port Cablelok
Technical Description The R70 Port Cablelok is a mechanical seal manufactured from external grade flexible polychloroprene designed to be used with the range of HellermannTyton dome closures. The R70 cablelok provides a seal for cables within a cable range of 6.0mm – 8.5mm.
Type CABLELOK-R70-10
Variant Round - R
Hazardous Goods No
Country of Origin GB
Customs Number 40169300
GTIN-13 / EAN 5022660102196
Packaging 1 - Height (m) 0.381m
Packaging 1 - Length (m) 0.254m
Packaging 1 - Qty 10
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0
Packaging 1 - Weight (kg) 0.2kg
ETIM 7.0 Key EC000879
ETIM 8.0 Key EC000879
ETIM 9.0 Key EC000879
UNSPSC Key 43202218
