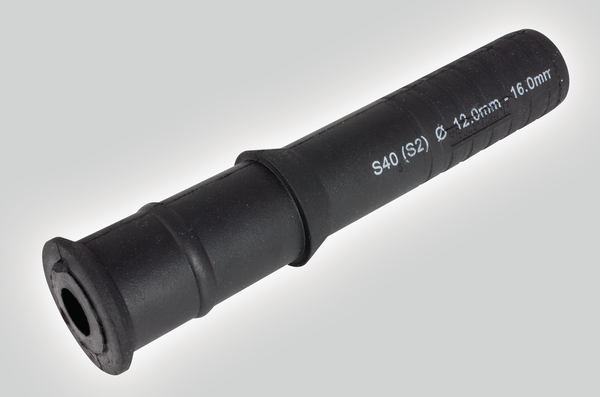

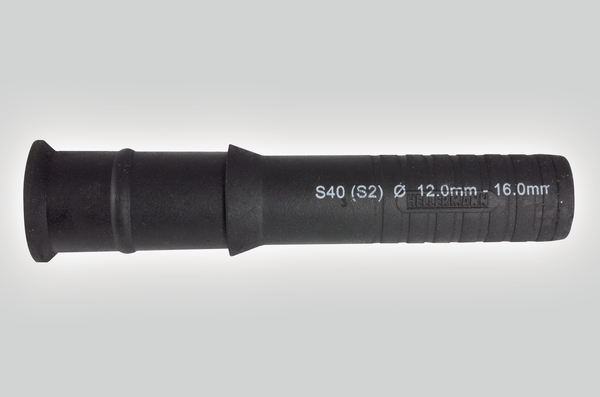

Cablelok S 12.0-16.0mmX1
Art.-No. 857-50171 | CABLELOK-S40-01 Details

  • Cable range coverage from 5.0mm to 20.0mm
  • Multi-hole version available to allow 2 cable drops from the same port
  • Multi-hole cable range coverage from 10.0mm – 11.5mm (S30D)
  • Port closure plug available
  • Supplied in multiples of 1 and 10
  • Supplied with installation lubricant sachets
Show more
Cable ∅ max 16.0mm
Cable ∅ min 12.0mm
Colour Black (BK)
Content 1 x CABLELOK-S40(S2), 1 x Lubricating Wipes
Material Chloroprene Rubber (CR)
Pack Cont. 1pc.
Package Content packed in bag
PART DESCRIPTION CABLELOK-S40-01
Port S
Port count 1
Product Family S Port Series
Product Group S Port Cablelok
Short Description Cablelok S 12.0-16.0mmX1
Technical Description The S Port Cablelok is a mechanical seal manufactured from external grade flexible polychloroprene. There are 6 Cablelok's which cover a cable range of 5.0mm – 20.0mm including one multi-hole version to allow two cable drops from the same port and a port plug for blocking unused S sized drop ports.
Variant Round - S
Country of Origin GB
Customs Number 40169300
GTIN-13 / EAN 5022660102233
Order Unit pcs.
EFO Norway block number 100600
ETIM 7.0 Key EC002609
UNSPSC Key 43202218
