05/10/2024

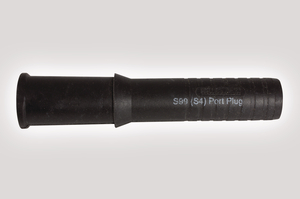

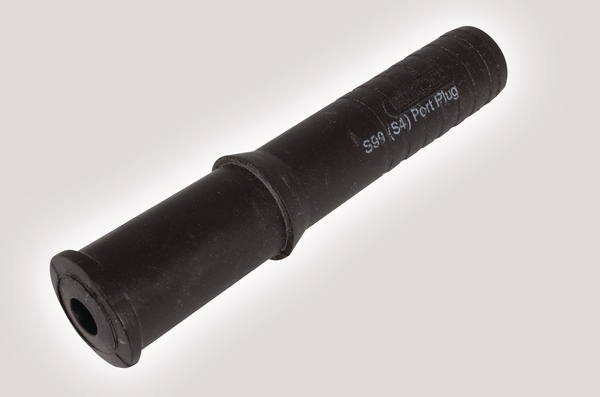

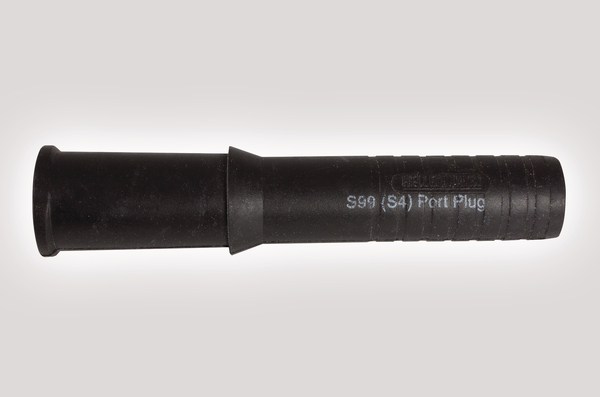

Cablelok S99 Port Plug x10
Art.-No. 857-50176 | CABLELOK-S99-10 Details

  • Cable range coverage from 5.0mm to 20.0mm
  • Multi-hole version available to allow 2 cable drops from the same port
  • Multi-hole cable range coverage from 10.0mm – 11.5mm (S30D)
  • Port closure plug available
  • Supplied in multiples of 1 and 10
  • Supplied with installation lubricant sachets
Show more
Colour Black (BK)
Content 10 x CABLELOK-S99(S4), 10 x Lubricating Wipes
Material Chloroprene Rubber (CR)
PART DESCRIPTION CABLELOK-S99-10
Pack Cont. 10pcs.
Package Content packed in bag
Port S
Product Description HellermannTyton’s patented Cablelok mechanical seal enables fast safe cable installation, providing a highly repeatable and consistent seal between the cable and the closure port with excellent non-leak performance. Tested to in excess of 6m head of water, the Cablelok does not rely on the skill and experience of the engineer to achieve the required seal, whilst installation times are typically reduced by up to 90%.
Product Family S Port Series
Product Group S Port Cablelok
Short Description Cablelok S99 Port Plug x10
Technical Description The S Port Cablelok is a mechanical seal manufactured from external grade flexible polychloroprene. There are 6 Cablelok's which cover a cable range of 5.0mm – 20.0mm including one multi-hole version to allow two cable drops from the same port and a port plug for blocking unused S sized drop ports.
Type CABLELOK-S99-10
Variant Round - S
Hazardous Goods No
Country of Origin GB
Customs Number 40169300
GTIN-13 / EAN 5022660102288
Packaging 1 - Height (m) 0.381m
Packaging 1 - Length (m) 0.254m
Packaging 1 - Qty 10
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0
Packaging 1 - Weight (kg) 0.2kg
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000879
ETIM 9.0 Key EC000879
UNSPSC Key 43202218
