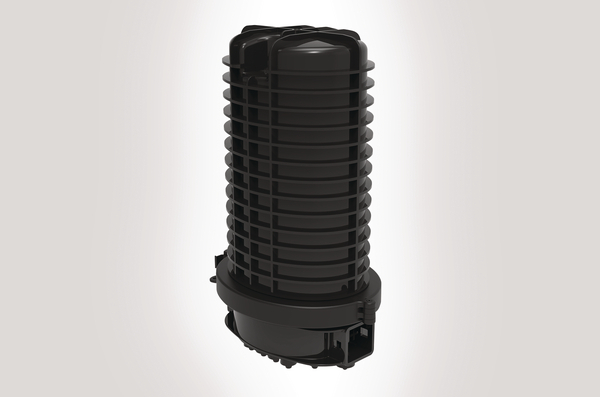

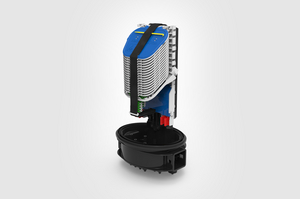

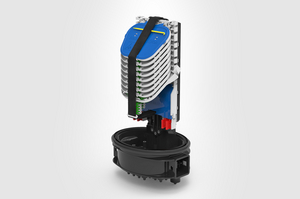

CFNIRS 19 Port M Length Closure with 12 Compact SE-IR ANT Trays
Art.-No. 857-02518 | CFNIRS-MXBDSX Details

  • Maximum 288 fibre splice capacity
  • 18 round ports and 1 oval port
  • Foam Entry Block
  • Positive fibre management to ensure consistent 15mm bend radius throughout
  • Fibre storage basket for loop through applications
  • Bi-directional fibre routing
  • Supplied with 12 SE-IR ANT Splice Trays
  • Maximum 24 splices per tray (double stacked)
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional pressure release valve
Show more
Cable ∅ max 16.5mm
Cable ∅ min 2.5mm
Colour Black (BK)
Content CFN 19 Port Base
M Length Cover
Quick Release Clamp
Sealing 'O' Ring
Fibre Optic Routing Module
Fibre Optic Storage Unit with Foam Entry Block
Fibre Optic Storage Unit Lid
12 x SE-IR ANT Compact Splice Trays
Tray Lid
Anchor Fixing Kit (2)
Fibre Pricker
Hook and Loop Management Ties
Installation Guide
Cover Type M
Material Polypropylene, UV-resistant (PPUV), Polyamide 6.6, glass-fibre reinforced (PA66GF60)
Method of Sealing Cablelok
PART DESCRIPTION CFNIRS-MXBDSX
Package Content packed in box
Port LM, B, D
Port count 1, 2, 16
Product Family M Length
Product Group CFNIRS 19 Port Integrated Routing Closure
Qty Trays 12
Short Description CFNIRS 19 Port M Length Closure with 12 Compact SE-IR ANT Trays
Splice Capacity 288

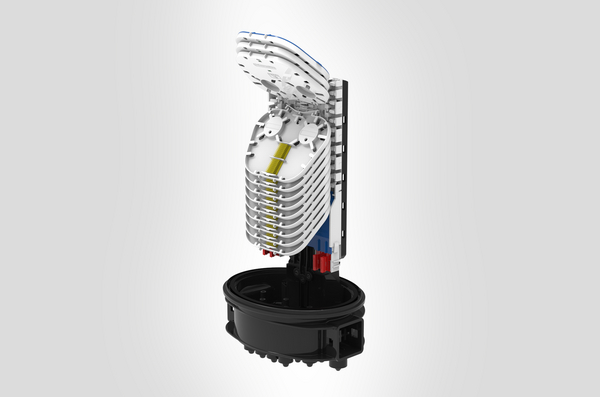

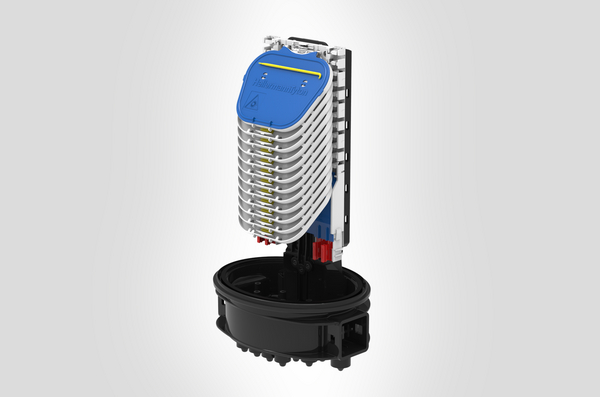

Technical Description The CFNIRS 19 Port Integrated Routing (IR) M length closure is supplied with a foam entry block, a loop storage basket, IR Fibre Management system and splice trays. The base configuration of 18 round ports and 1 oval port covers a cable diameter range of 4.0 – 16.5mm when using Cablelok mechanical seals. The mounting system is manufactured from glass filled nylon and is supplied with 12 SE-IR CFN ANT splice trays. The position of the mounting system allows easy access for the routing of fibre on to the trays and the basket provides storage space for the storage of fibre loops. The trays and fibre routing module are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. The fibre entry block has dedicated PLC splitter accommodation for a maximum of 2 x 250µm bare end PLC splitters and fibre management for fibre direction changes and storage of excess fibre. Fibre retention guides manage the fibre elements into the IR system. All IR system cover parts are coloured blue identifying them as removable parts allowing access to the fibre. The CFN IR single element trays is manufactured from ABS and is fitted with 2 x ANT splice protector inserts which are positioned at the front of the tray providing a maximum splice capacity of 24 double stacked ANT splices.
Type CFNIRS-MXBDSX
Type of Tray Compact SE
Variant Outdoor FTTx Enclosures
Cable Size Max. (Imperial) 0.65
Cable Size Max. (metric) 16.5
Cable Size Min. (Imperial) 0.09
Cable Size Min. (metric) 2.5

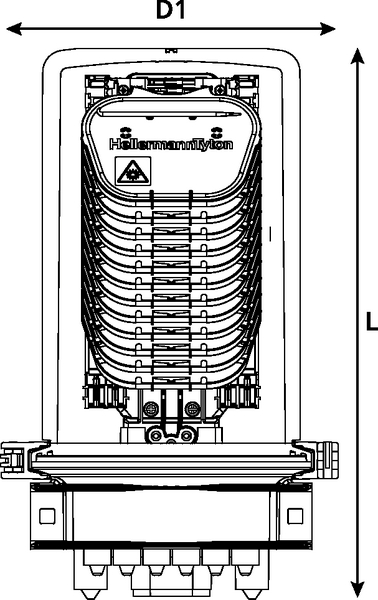

Length (L) 410mm
Length (mm) 410mm
Width D1 250mm
Width D1 9.85"

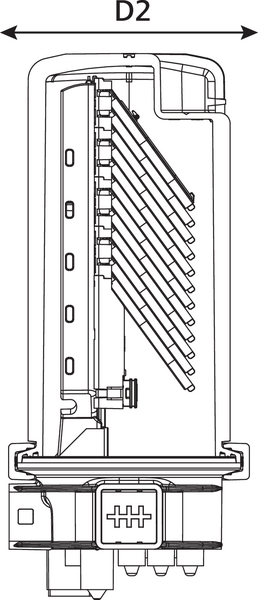

Width D2 7.09"
Width D2 180mm
Country of Origin GB
GTIN-13 / EAN 5022660193910
Packaging 1 - Height (m) 0.25m
Packaging 1 - Length (m) 0.45m
Packaging 1 - Qty 1
Packaging 1 - Type box
Packaging 1 - Volume (m³) 0.02003
Packaging 1 - Weight (kg) 2.8kg
Packaging 1 - Width (m) 0.178m
