FDN 59 port A length IR closure with 6 SE-IR MKII trays fitted with 2 x 3A splice bridges
Art.-No. 857-02036 | FDNIR-AXXCMX |

Copied
FDN IR 59 Port A-Length Closure.
Base port and cable size configurations.
FDN 59 port base showing different ports
FDN A-Length Closure Cover
FDN IR 59 Port A-Length Single Stack Closure.
FDN 59 Port Base Configuration
FDN with cover and clamp (top view)

    • Maximum 72 fibre splice capacity
    • 58 round ports and 1 oval port
    • Positive fibre management to ensure consistent 15mm minimum fibre bend radius throughout
    • Bi-directional fibre routing
    • Supplied with 6 SE-IR MKII Trays fitted with 2 x 3A (Green) splice protector inserts
    • Maximum 12 splices per tray
    • Splitter accommodation
    • Cablelok compatible for all port sizes
    • Quick release cover
    • Optional pressure release valve
    Add to watchlist
    Downloads
    Colour Black (BK)
    Content FDN 59 Port IR Base
    A-Length Cover
    Quick Release Clamp
    Sealing ‘O’ Ring
    Fibre Optic Routing Module
    Fibre Optic Storage Unit
    Fibre Optic Storage Unit Lid
    Fibre Slot Entry Module
    Fibre Slot Retaining Block
    6 x SE-IR MKII 3A Splice Trays
    Reusable Cable Ties
    Tray Lid
    Tray Tool
    Anchor Fixing Kit (3)
    Spiral Binding
    Isopropyl Alcohol Wipes
    Desiccant
    Installation Guide
    Marker Kit
    Red Marker 1 – 12
    Green Marker 1 – 12
    Cover Type A
    Material Polypropylene (PP)
    Method of Sealing Cablelok, Heatshrink
    PART DESCRIPTION FDNIR-AXXCMX
    Package Content packed in box
    Port L, T, S, B, R
    Port count 1, 2, 4, 2, 52
    Product Family A Length
    Product Group FDN 59 Port Integrated Routing Closure
    Qty Trays 6
    Short Description FDN 59 port A length IR closure with 6 SE-IR MKII trays fitted with 2 x 3A splice bridges
    Splice Capacity 72

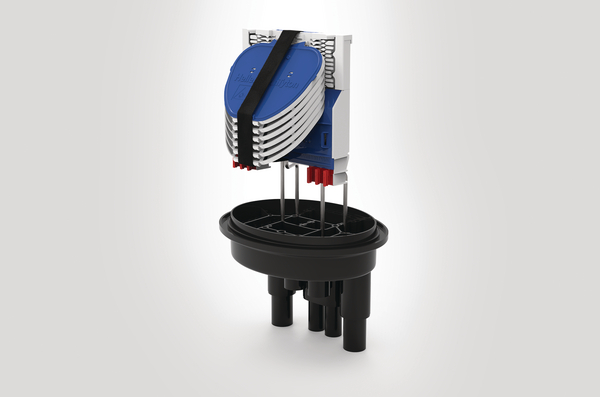

    Technical Description The FDN 59 Port Integrated Routing (IR) A Length closure is supplied with a Polypropylene base. The base configuration of 15 round ports and 1 oval port covers a cable diameter range of 4.8 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 6 SE-IR MKII 3A splice trays. The position of the mounting system allows easy access for the routing of the fibre on to the trays. The trays and fibre optic routing module are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide fibre elements in to the IR system, the foam pad on the retainer is partially cut through to accommodate a range of fibre counts.
    All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre slot retaining block and tray retaining clips are coloured red to aid in identification if they are dropped.
    Type FDNIR-AXXCMX
    Type of Tray Integrated Routing SE MKII
    Variant Outdoor FTTx Enclosures

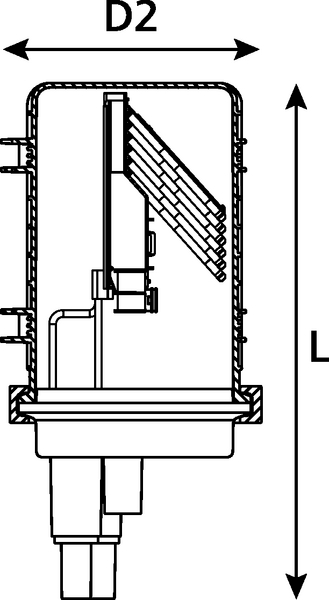

    Length (L) 455mm
    Length (mm) 455mm
    Width D1 312mm
    Width D2 222mm
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 85176200
    GTIN-13 / EAN 5022660174506
    Packaging 1 - Height (m) 0.32m
    Packaging 1 - Length (m) 0.5m
    Packaging 1 - Qty 1
    Packaging 1 - Type box
    Packaging 1 - Volume (m³) 0.0512m³
    Packaging 1 - Weight (kg) 5.2kg
    Packaging 1 - Width (m) 0.32m
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
