26/06/2026

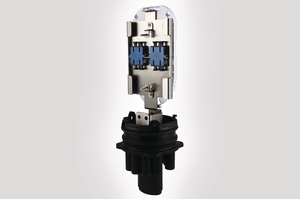

FST connectorised with 13 port base with 2 trays and 12 SC APC simplex adaptors


Art.-No. 857-00969

| FSTCT-AXXTA21-TF

 |

Copied
FST 13 Port Connectorised Closure
FST 13 Port Base Configuration
FST A-Length 13 Port Connectorised Closure
FST 13 Port Connectorised Closure
FST / MRBU Closure Cover
MRBU showing 13 port base
Base port and cable size configurations.

    • Maximum 24 fibre splice capacity
    • 12 round ports and 1 oval port
    • SC Duplex adaptors
    • Maximum 12 3A splices per tray
    • Splitter accommodation
    • Cablelok compatible for all port sizes
    • Quick release cover
    Add to watchlist
    Downloads
    Colour Black (BK)
    Connector Type SC-APC
    Content FST 13 Port Base
    Anchor Ring
    A-Length Cover (Dome)
    Quick Release Clamp
    Sealing ‘O’ Ring
    Connector Plate
    SC Duplex Adaptors
    Hellapon Small Trays
    Tray Support Frame
    Anchor Fixing Kit (2)
    Hook and Loop Securing Strap (3 tray version only)
    Transportation Tubing
    Isopropyl Alcohol Wipes
    Desiccant
    Installation Guide
    Maker Kit
    Red Marker 1 – 12
    Green Marker 1 – 12
    Cover Type A
    Method of Sealing Cablelok, Heatshrink
    PART DESCRIPTION FSTCT-AXXTA21-TF
    Package Content packed in box
    Port LM, B, R
    Port count 1, 2, 10
    Product Family 13 Port with 12 SC Duplex Adaptors
    Product Group FST Connectorised Closure
    Qty Trays 2
    Short Description FST connectorised with 13 port base with 2 trays and 12 SC APC simplex adaptors
    Technical Description The FST 13 port closure is supplied with a Polypropylene base. The base configuration of 12 round ports and 1 oval port covers a cable diameter range of 1.7 – 16.5mm when using Cablelok mechanical seals.
    The mounting system is manufactured from Grade 304 stainless steel and can accommodate a maximum of 2 Hellapon Small trays with a maximum of 2 SC duplex adaptors mounted in the connector plate for a maximum of 4 SC connectors.
    The Connectorised closure and the position of the mounting system allow for ease of access and traceability of the fibre elements on to the trays.
    The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
    Type FSTCT-AXXTA21-TF
    Type of Tray Hellapon Small
    Length (L) 310mm
    Length (mm) 310mm
    Width D1 110mm
    Width D1 4.3"
    Width D2 4.3"
    Width D2 110mm
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 85389099
    GTIN-13 / EAN 5022660132490
    Packaging 1 - Height (m) 0.146m
    Packaging 1 - Length (m) 0.146m
    Packaging 1 - Qty 1
    Packaging 1 - Type box
    Packaging 1 - Volume (m³) 0.011787748m³
    Packaging 1 - Weight (kg) 1.7kg
    Packaging 1 - Width (m) 0.553m
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
