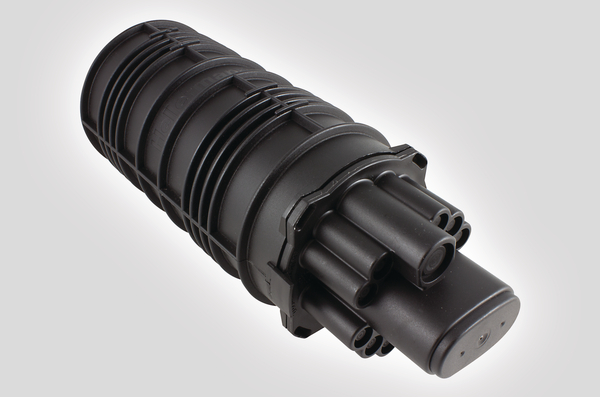

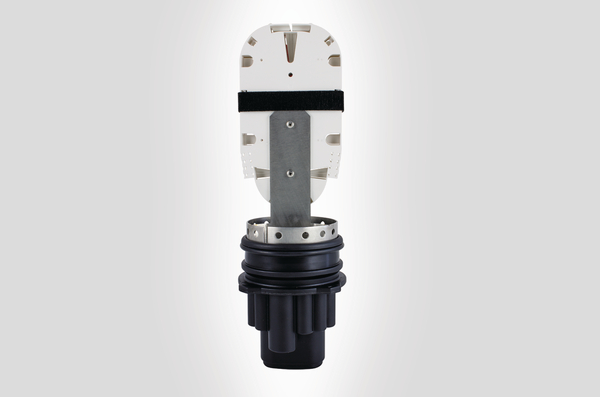

13 port closure with 2 trays
Art.-No. 857-00617 | FSTTB-AXXTA21 Details

  • Maximum 24 fibre splice capacity
  • 12 round ports and 1 oval port
  • Supplied with 2 x Hellapon Small Trays with 3A Splice Bridges
  • Maximm 12 splices per tray
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
Show more
Colour Black (BK)
Content FST 13 Port Base
Anchor Ring

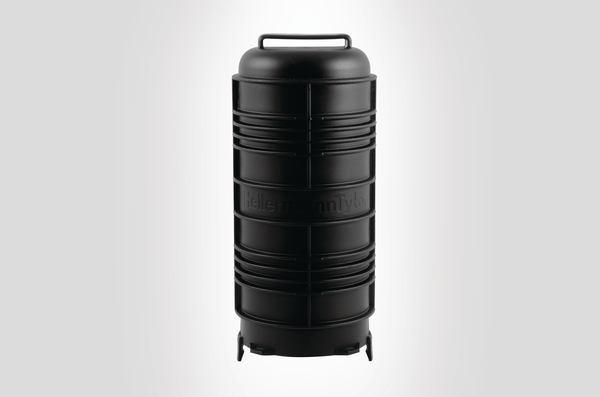

A-Length Cover (Dome)
Quick Release Clamp
Sealing ’O’ Ring
Tray Support Frame
Anchor Fixing Kit (2)
2 x Hellapon Small 3A Splice Trays
Transportation Tubing
Isopropyl Alcohol Wipes
Desiccant
Installation Guide
Marker Kit
Red Marker 1 - 12
Green Marker 1 – 12
Material Polypropylene (PP)
Method of Sealing Cablelok
Pack Cont. 1Set
Package Content packed in kit
PART DESCRIPTION FSTTB-AXXTA21

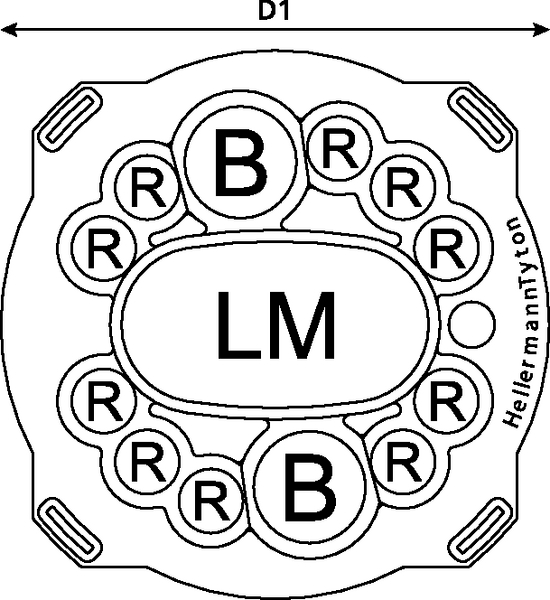

Port LM, B, R
Port count 1, 2, 10
Product Family A Length
Product Group FST 13 Port Closure
Qty Trays 2
Short Description Port closure, 12 round ports + 1 oval port, max. 36 fibre splice capacity
Short Description 13 port closure with 2 trays
Splice Capacity 24

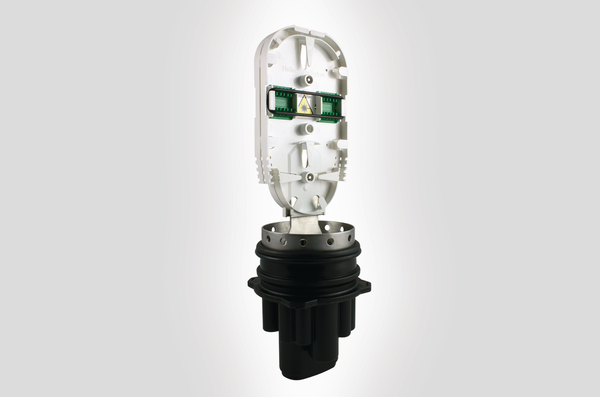

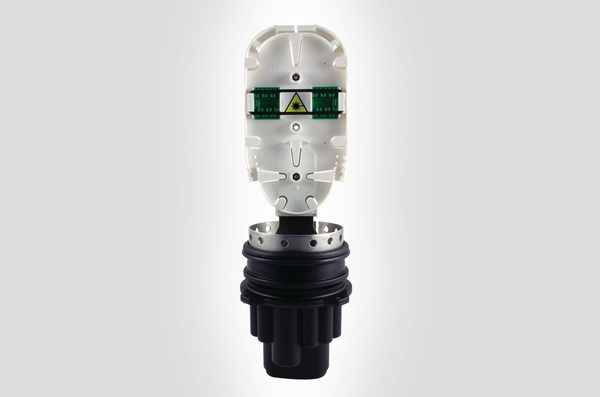

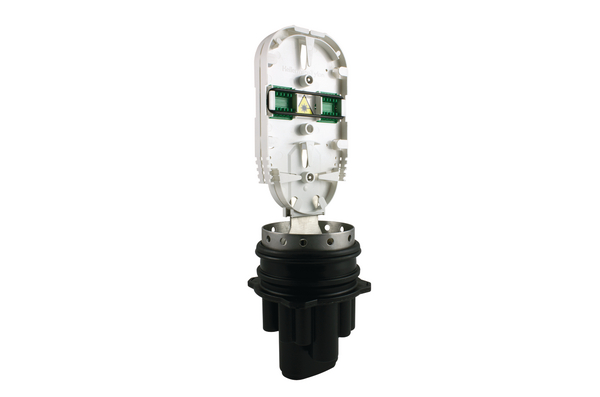

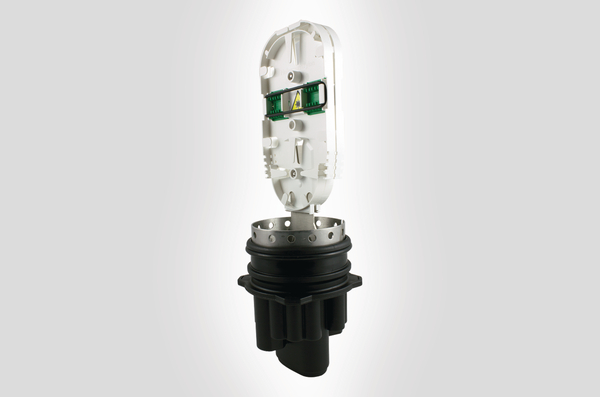

Technical Description The FST 13 Port closure is supplied with a Polypropylene base. The base configuration of 12 round ports and 1 oval port covers a cable diameter range of 1.7 – 16.5mm when using Cablelok mechanical seals. The mounting system is manufactured from Grade 304 stainless steel and is supplied with 2 x Hellapon Small Trays with 3A Splice Bridges giving a maximum of 24 fibre splices. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
Type of Tray Hellapon Small
Variant Outdoor Enclosure

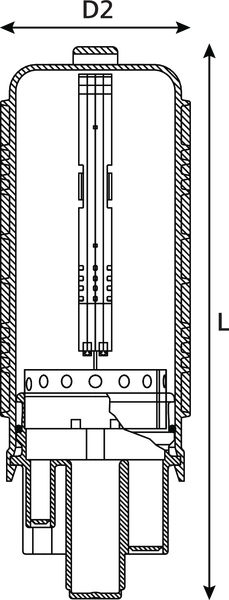

Length (mm) 310mm
Width D1 110mm
Width D1 4.3"
Width D2 110mm
Width D2 4.3"
Country of Origin GB
Customs Number 85176200
GTIN-13 / EAN 5022660112447
Order Unit pcs.
Packaging 1 - Height (m) 0.146m
Packaging 1 - Length (m) 0.146m
Packaging 1 - Qty 1
Packaging 1 - Type box
Packaging 1 - Volume (m³) 0.01179
Packaging 1 - Weight (kg) 1.0kg
Packaging 1 - Width (m) 0.553m
ETIM 7.0 Key EC001124
UNSPSC Key 43223338
