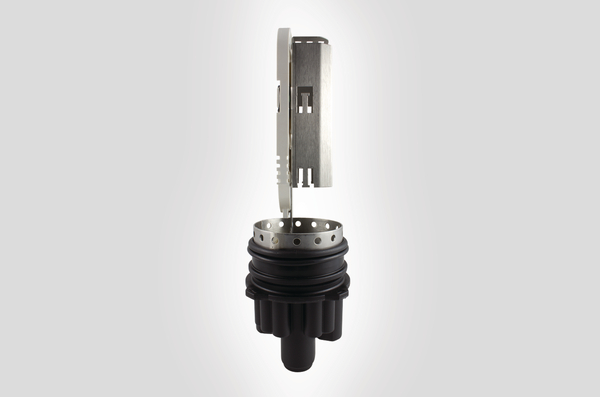

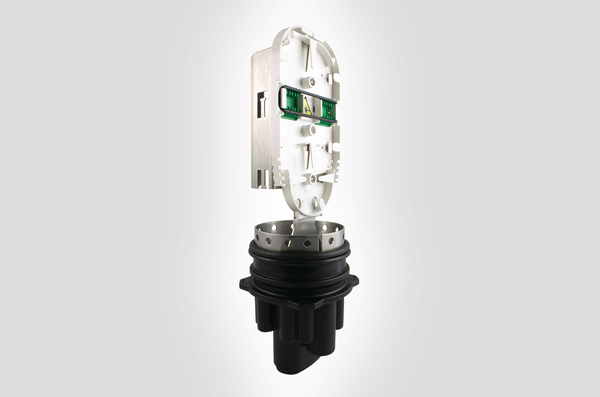

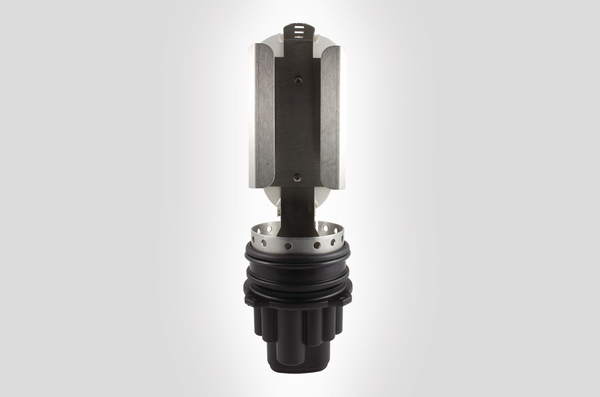

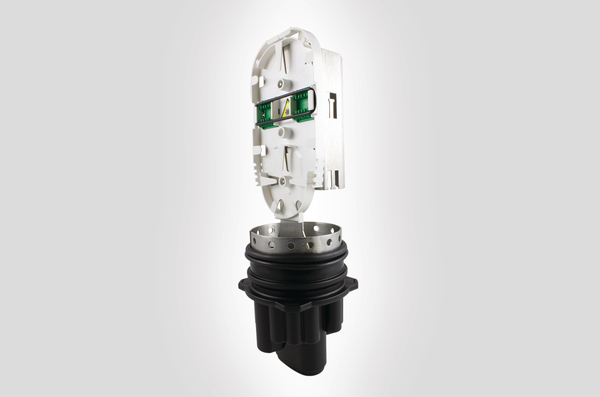

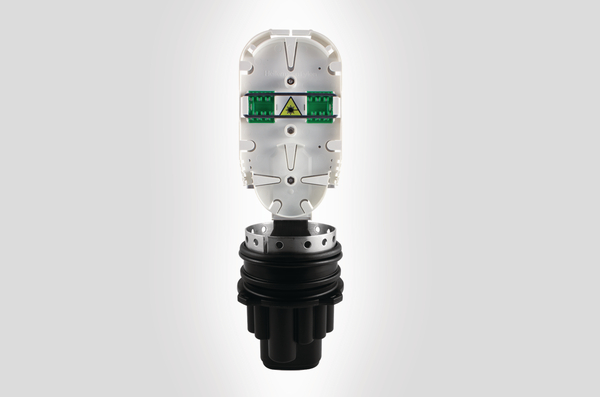

13 port closure with 1 tray and fibre storage basket
Art.-No. 857-00618
| FSTTB-AXBTA11
|
Copied
- Maximum 12 fibre splice capacity
- 12 round ports and 1 oval port
- Fibre storage basket for loop through applications
- Supplied with 1 x Hellapon Small 3A Splice Trays
- Maximum 12 splices per tray
- Splitter accommodation
- Cablelok compatible for all port sizes
- Quick release cover
Show more
Show less
More products in this product group:
| Colour | Black (BK) |
| Content |
FST 13 Port Base Anchor Ring A-Length Cover (Dome) Quick Release Clamp Sealing ’O’ Ring Fibre Storage Basket Tray Support Frame Anchor Fixing Kit (2) 1 x Hellapon Small Trays with 3A Splice Bridges Transportation Tubing Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 - 12 Green Marker 1 – 12 |
| Material | Polypropylene (PP) |
| Method of Sealing | Cablelok |
| PART DESCRIPTION | FSTTB-AXBTA11 |
| Package Content | 1Set |
| Package Content packed in | kit |
| Port | LM, B, R |
| Port count | 1, 2, 10 |
| Product Family | A Length |
| Product Group | FST 13 Port Closure |
| Qty Trays | 1 |
| Short Description | 13 port closure with 1 tray and fibre storage basket |
| Splice Capacity | 12 |
| Technical Description |
The FST 13 Port closure is supplied with a Polypropylene base. The base configuration of 12 round ports and 1 oval port covers a cable diameter range of 1.7 – 16.5mm when using Cablelok mechanical seals. The mounting system is manufactured from Grade 304 stainless steeland is supplied with 1 x Hellapon Small Tray with 3A Splice Bridges giving a maximum of 12 fibre splices. The fibre basket provides storage space for the storage of fibre loops within the closure. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays. |
| Type | FSTTB-AXBTA11 |
| Type of Tray | Hellapon Small |
| Variant | Outdoor Enclosure |
