04/11/2025

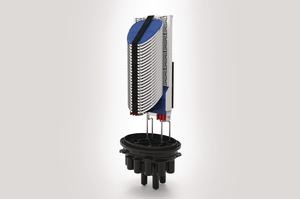

FDN 59 port B length tubed closure with basket
Art.-No. 856-00653 | FDNTB-BXBCXXX |

FDN 59 Port B-Length Closure with basket

Base port and cable size configurations.

FDN 59 port base showing different ports

FDN B-Length Closure Cover

FDN 59 Port Base B-Length Closure with basket

FDN 59 Port Base Configuration

FDN with basket, cover and clamp (top view)

This product is not available anymore.

Please contact our sales team.

Maximum 576 fibre splice capacity when using SMF SE-A trays
58 round ports and 1 oval port
Fibre storage basket for loop through applications
Accommodates Hellipse NZDF SE-A and SMF SE-A trays
Maximum 24 splices per tray (SMF SE-A trays)
Splitter accommodation
Cablelok compatible for all port sizes
Quick release cover
Optional flash test valve and/or grounding feed-through

Add to watchlist

Distributors near you

More products in this product group:

FDN 59 Port Tubed Closure >

Base Data

Colour	Black (BK)
Content	FDN 59 Port Base B-Length Cover (Dome) Quick Release Clamp Sealing ’O’ Ring Fibre Storage Basket Tray Support Frame Anchor Fixing Kit (3) Tray Tool Hook and Loop Tray Securing Straps Transportation Tubing Tubefix – Tube to Tray Securing Blocks Hook and Loop Management Ties Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 – 25 Green Marker 1 – 25
Cover Type	B
Method of Sealing	Cablelok, Heatshrink
PART DESCRIPTION	FDNTB-BXBCXXX
Package Content packed in	kit
Port	L, T, S, B, R
Port count	1, 2, 4, 2, 52
Product Family	B Length with Basket
Product Group	FDN 59 Port Tubed Closure
Qty Trays	0
Short Description	FDN 59 port B length tubed closure with basket
Splice Capacity	0
Technical Description	The FDN 59 Port B Length closure with basket is supplied with a Polypropylene base. The base configuration of 58 round ports and 1 oval port covers a cable diameter range of 1.7 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and can accommodate up to 24 Hellipse NZDF SE-A or SMF SE-A trays giving a maximum of 576 fibre splices based on 24 fibres per tray (when using Hellipse SMF SE-A trays). The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays and the basket provides storage space for the storage of fibre loops. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system.
Type	FDNTB-BXBCXXX
Type of Tray	Not supplied
Variant	Outdoor FTTx Enclosures

Product Dimensions

Length (mm)	663mm
Width D1	312mm
Width D2	222mm

Downloads

Specifications

ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660112676
Packaging 1 - Height (m)	0.72m
Packaging 1 - Length (m)	0.32m
Packaging 1 - Qty	1
Packaging 1 - Type	box
Packaging 1 - Volume (m³)	0.073728m³
Packaging 1 - Weight (kg)	7.20kg
Packaging 1 - Width (m)	0.32m

More Information

ETIM 7.0 Key	EC002067
ETIM 8.0 Key	EC002067
ETIM 9.0 Key	EC002067
