GigaDuct Straight Duct, Solid, Horizontal, 200mm x 1.8m, with Cover
Art.-No. 181-00414 | LG-D1BX18-YL |

Copied

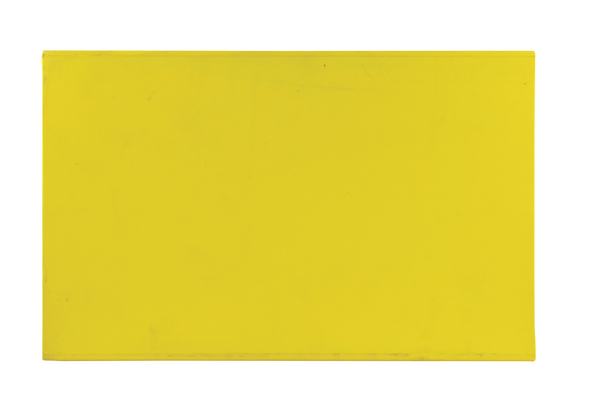

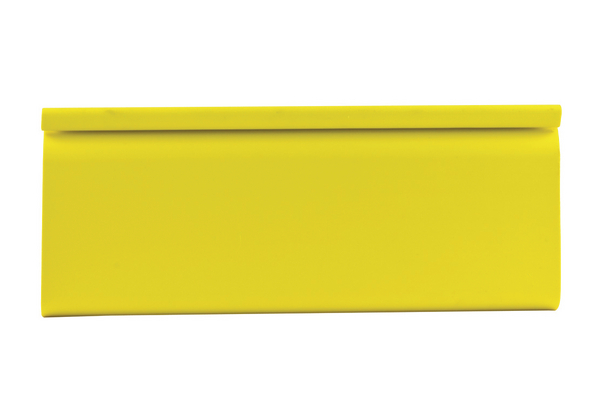

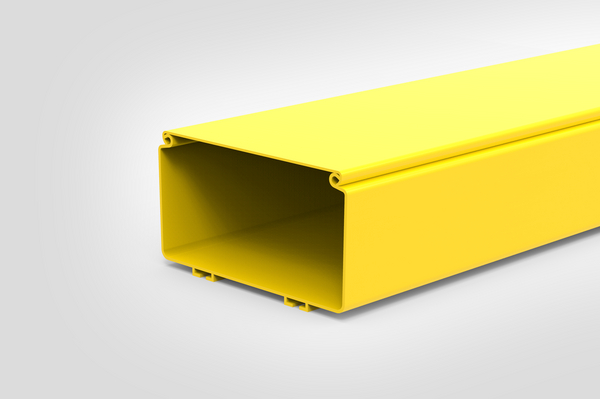

200mm Straight Duct with cover.

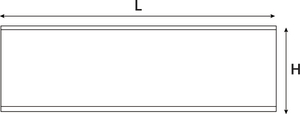

Solid Straight Duct Length.
Solid Straight Duct Length.
Solid Straight Duct Length.

    • Made from LSZH-FR UL94/V0 material
    • Supplied in 1.8m lengths
    • Compatible with 200mm GigaDuct Fibre Raceway accessories
    • Supplied with cover
    • Segregates fibre optic cable from other media to provide flexibility for future additions or changes
    • Fully encloses cables to keep out dirt and dust as the fibre is routed through different areas of the data centre
    • Protects cables by maintaining proper bend radius, preventing micro bends and macro bends that degrade performance
    • Maintains attractive aesthetics by enclosing cables throughout the facility
    Add to watchlist
    Downloads
    Application 200mm Horizontal Straight Duct is used to support straight runs of optical fibre cable. GigaDuct is easily joined together using a combination of elbows, T-junctions, intersections, reducers and couplers. A variety of mounting options are available to support different installation environments. Supplied in 1.8m lengths with cover.
    Colour Yellow (YE)
    PART DESCRIPTION LG-D1BX18-YL
    Package Content packed in box
    Product Family Straight Duct - Solid
    Product Group GigaDuct Fibre Raceway
    Short Description GigaDuct Straight Duct, Solid, Horizontal, 200mm x 1.8m, with Cover
    Technical Description GigaDuct is a robust, scalable cable management system engineered specifically for organising and protecting optical fibre cables in the data centre environment. Constructed with precision, it provides a dedicated pathway that prevents cable congestion, minimises physical stress on fibres, and facilitates efficient cable management. Whether you are setting up a new data centre or upgrading an existing one, HellermannTyton’s GigaDuct offers unmatched versatility and reliability.
    Type LG-D1BX18-YL

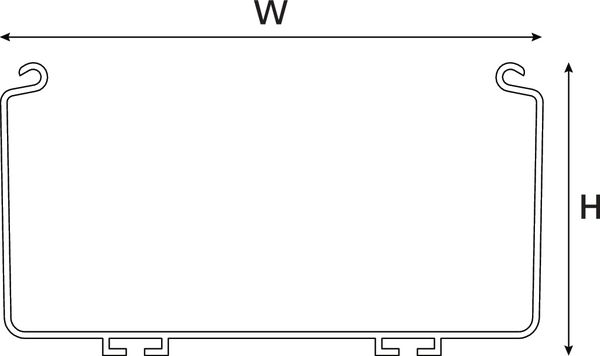

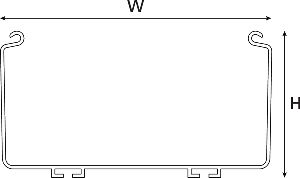

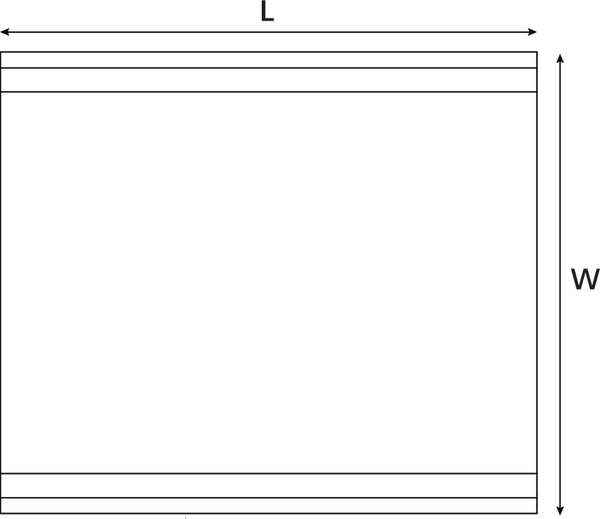

    Height (H) 100mm

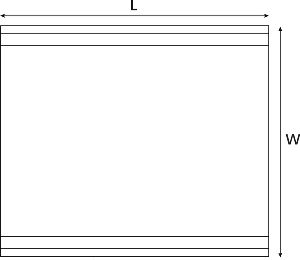

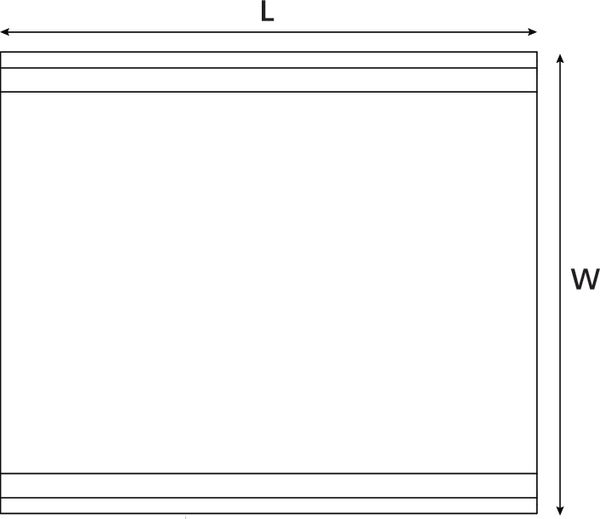

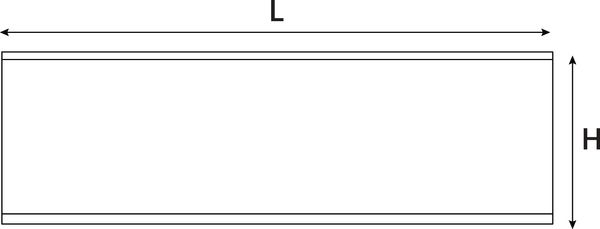

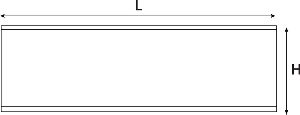

    Length (L) 1800mm
    Width (W) 200mm
    Halogen-free Yes
    Limited Fire Hazard Yes
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 4031026496757
