MDU S2 Rear Mounting Storage Bracket
Art.-No. 857-40701 | MDU-S2-RMSBRKT/GY |

Copied

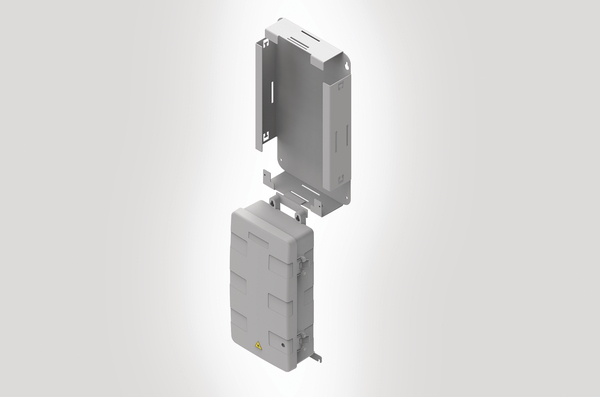

Unloaded MDU S2 Basket.

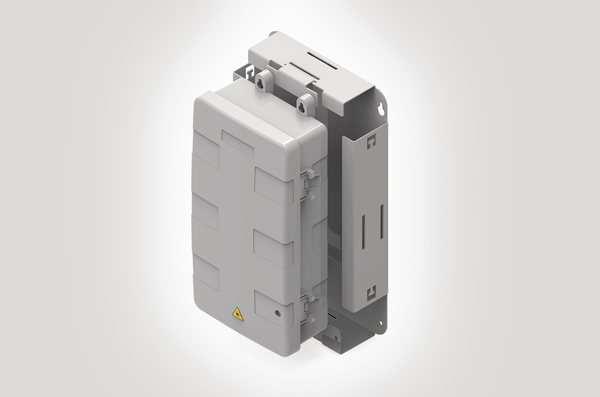

Basket with MDU S2 in-situ.

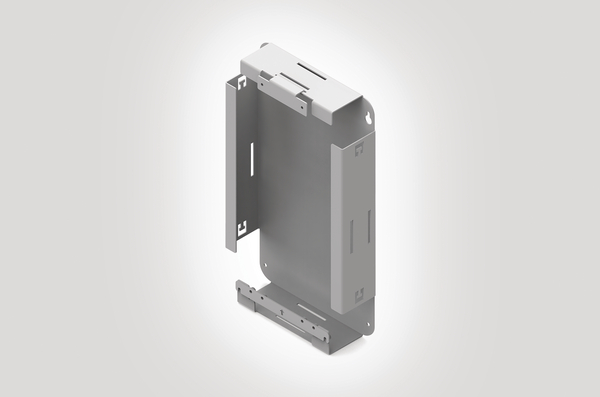

MDU S2 Rear Mounting Storage Bracket.
MDU S2 (front view).
MDU S2 (side view).
MDU S2 (top view).

    • Dual use; MDU mounting and drop cable storage
    • Stores up to 4m of drop cable
    • Allows easy removal of MDU to working level
    • Integrated hook to hang the MDU from
    • Multiple anchor points
    Add to watchlist
    Downloads
    PART DESCRIPTION MDU-S2-RMSBRKT/GY
    Product Family Fibre Optic Enclosure Accessories
    Short Description MDU S2 Rear Mounting Storage Bracket
    Technical Description The rear mounting storage bracket has been designed to allow for effective MDU wall mounting at both low and high levels. The MDU is affixed to a back plate which then secures to the wall mounted storage bracket.
    It allows engineers to safely remove the MDU and bring it down to working level. The back plate also features a hook system that allows engineers to hang the MDU off the storage bracket and offers flexibility in working methods and environments.
    The storage bracket has been designed to hold and store up to 4 metres of drop cable. A number of anchor points are located around the bracket to allow for multiple cable tie points, ensuring stability and security for the stored drop cable.
    Type MDU-S2-RMSBRKT/GY

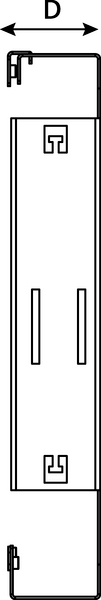

    Depth (D) 62mm

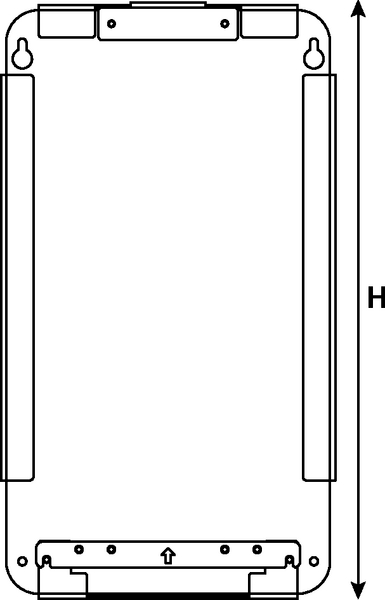

    Height (H) 368mm

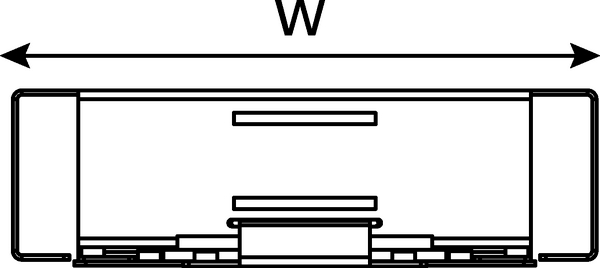

    Width (W) 206mm
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660177699
