MDU S5 with 900µm trays and LC APC Connectivity
Art.-No. 857-01498 | MDU-S5-BXMX06CS048R061:8 Details

  • 48 LC APC Customer Connection Points
  • Maximum 144 900µm Fibre Splices
  • 900µm IR Fibre Management System
  • 6 8 Way LC APC Cassettes
  • Point to Multi Point Configuration
  • 6 900µm IR Trays
  • Loop Storage Basket
  • 4 x Entry/Exit Port Blanks
  • Strength Member Anchor
  • In-built spirit level
  • IP54/IK08
  • UV Stable
  • V0 Rating
Show more
Application Designed for deployment within the last mile of the FTTx network. This enclosure can be used within a Point to Point (P2P) or Point to Multi Point (P2MP) with the addition of PLC splitters, connectorised or bare end, pigtails and adaptors.
Colour Grey RAL 7035 (RAL7035)
Connector Colour Green (GN)
Connector Type LC-APC

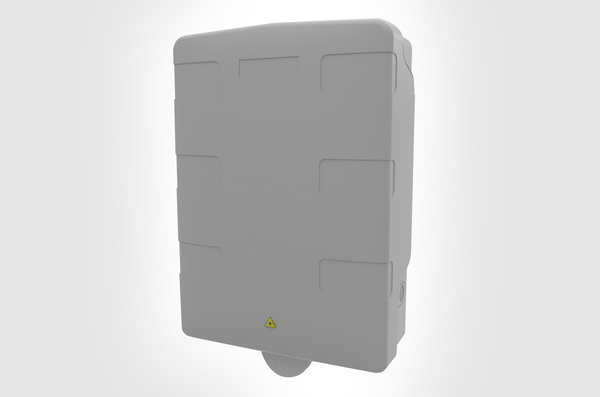

Content S5 Enclosure
900µm IR Fibre Management System
6 900µm IR Trays
6 LC APC Simplex Cassettes
6 1:8 Bare End to LC APC PLC Splitters
Loop Storage Basket
4 x Entry/Exit Port Blanks
Strength Member Anchor
In-built spirit level
Fibre Picker
Wall Mounting Kit
Red and Green Polyspiral Tubing(2M)
Red and Green Velcro Ties(5)
Installed Adapters 48
Material Acrylonitrile Butadiene Styrene (ABS)
PART DESCRIPTION MDU-S5-BXMX06CS048R061:8
Pack Cont. 1pc.
Package Content packed in EA
Port count 8
Product Family Fibre Optic External/Internal Enclosure
Product Group S5 Series MDU/MBU Enclosures
Qty Trays 6
Short Description MDU S5 with 900µm trays and LC APC Connectivity
Splice Capacity 96

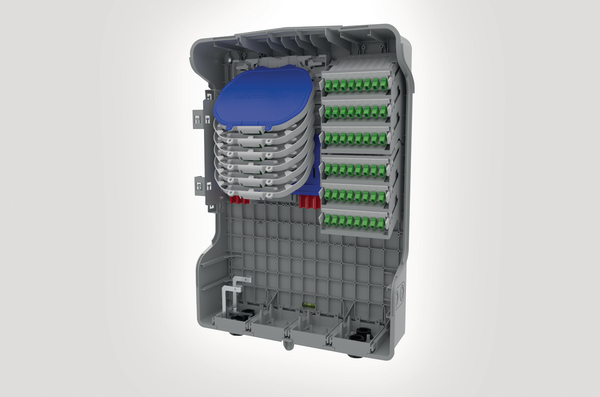

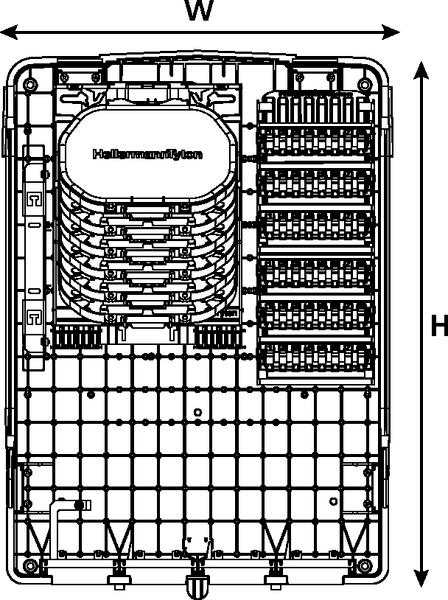

Technical Description The S5 enclosure is configured with the HellermannTyton 900µm IR Management System. The management system is mounted on an aluminium backplane which accommodates 6 900µm trays giving a maximum of 72 900µm 3A fibre splices. The position of the fibre management system allows for easy access for the routing of fibre on to the trays. The trays and fibre optic routing modules are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide the fibre elements on to the IR system; the foam pad on the retainer is partially cut through to accommodate a range of fibre counts. All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre retaining block and tray retaining clips are coloured red to aid in identification if they are dropped. 6 fibre management cassettes are fitted with 1:8 Bare end to LC APC PLC splitters and simplex adaptors to provide 48 customer connection points. The PLC splitter inputs are routed on to the fibre management trays to be spliced to the incoming fibre. A loop storage basket provides space for the storage of fibre loops. The enclosure is 568 x 375 x 165mm (H x W x D) and manufactured in light grey (RAL 7035), UV stable ABS (Acrylonitrile Butadiene Styrene) and has an IP54, IK08 and V0 rating. Designed with 8 dual input/output ports, 4 across the bottom, 2 on the top and 2 on each side, each port will accommodate a 20 or 25mm cable gland. A 100 x 25mm inset position on the front cover allows for a customer logo to be moulded in to the enclosure.
Type MDU-S5-BXMX06CS048R061:8
Type of Tray Versatile Routing ME
Variant Indoor/Outdoor FTTx Enclosures

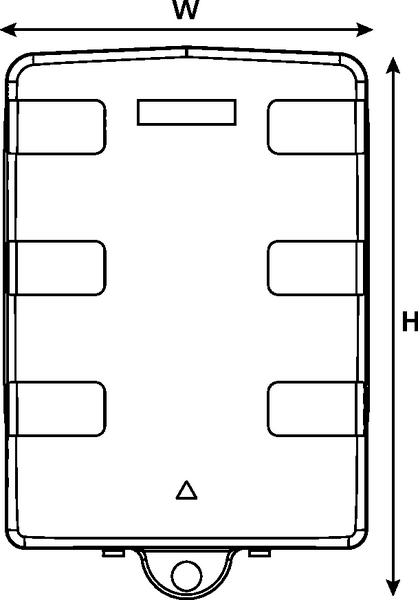

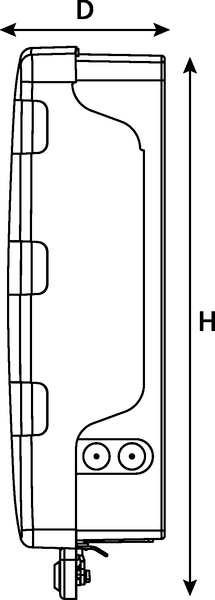

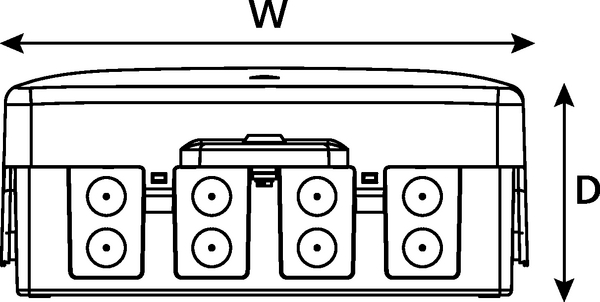

Depth (D) 165mm
Height (H) 568mm
Width (W) 375mm
IP-Rating IP54
Country of Origin GB
GTIN-13 / EAN 5022660164330
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
