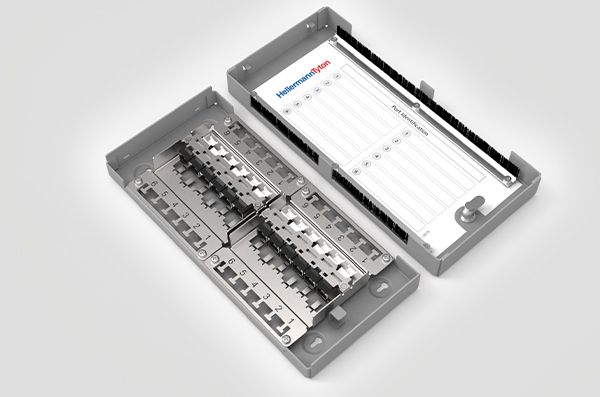

Modular Zone Termination Box

Modular Zone Termination Box

The Zone Termination Box (ZTB) from HellermannTyton Connectivity is a compact and robust internal consolidation point. The ZTB has been designed to work as part of a Zone Cabling topology which allows for more flexibility in regards to MAC’s within a structured cabling network.
This modular version of the ZTB allows for the use of keystone jacks and fibre adaptors, making it easier to configure each box to your bespoke requirements giving even greater flexibility.
Users can choose to have the box loaded with CAT6 UTP keystone jacks in a variety of colours, CAT6A shielded jacks or LC duplex / SC simplex fibre adaptors.

View Products

Features and Benefits

Features and Benefits of the Modular Zone Termination Box

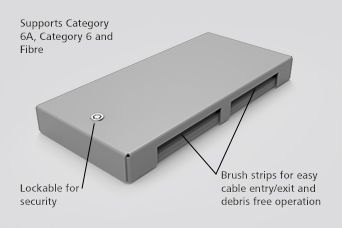

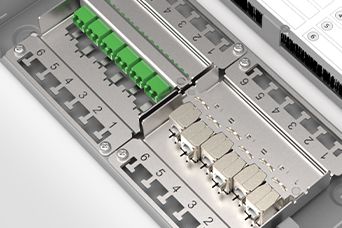

  • Supports Category 6A, Category 6 and Fibre
  • Uses HellermannTyton’s Modular Connectivity
  • Supports PoE when using Cat6A/Cat6 Keystone Jacks

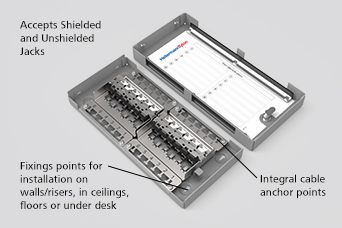

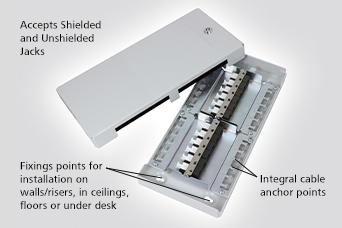

  • Accepts Shielded and Unshielded Jacks
  • Accepts up to 12 cable lines
  • 1.5mm mild steel for added strength

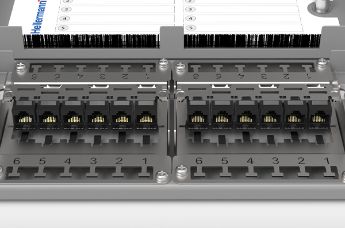

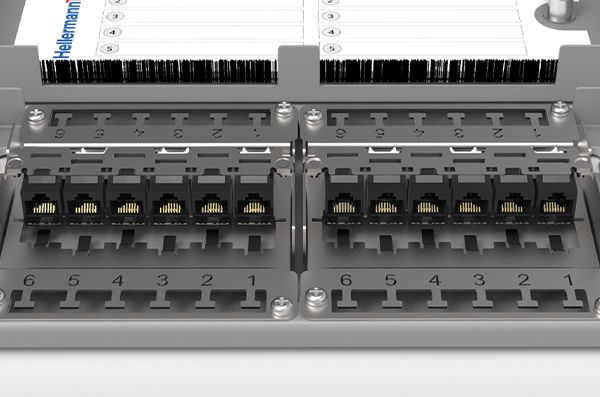

  • Internal steel cross-member supports for increased impact resistance

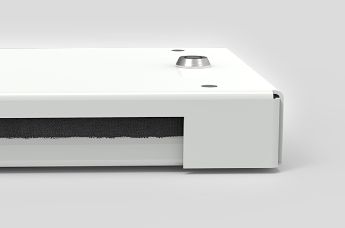

  • Compact size allows for installation in restricted spaces
  • Removable lid for ease of termination/installation

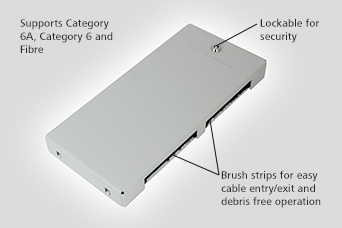

  • Lockable for security
  • Fixing points to allow for installation on walls/risers, in ceilings, floors or under desk
  • Grey powder coated finish for humidity and temperature protection
  • Brush strips for easy cable entry/exit and debris free operation
  • Integral cable anchor points
  • Modular design allows user to mix and match desired connectivity i.e. 6x CAT6A & 6x LC Duplex OM4

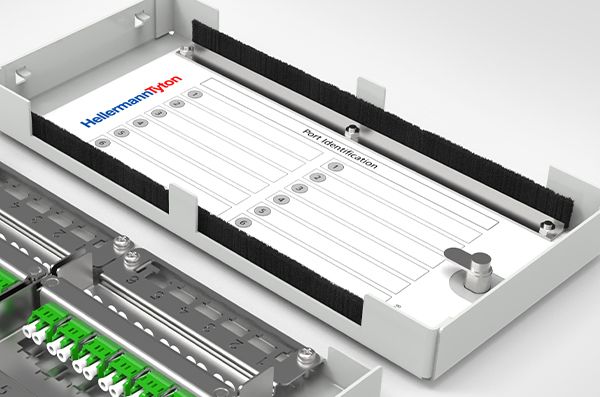

  • Port identification

View in 3D

Modular Zone Termination Box

Video of features and benefits

Downloads and links

To download the HellermannTyton product brochures available specific to the Zone Termination Box, please follow the links below:
