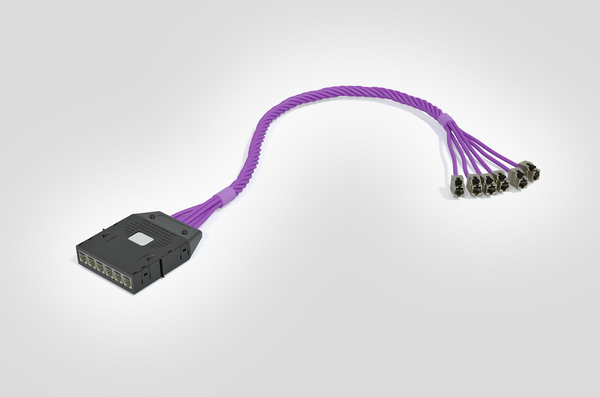

RapidNet 6 Port Category 6A FTP Cassette to Keystone Jack
Art.-No. 859-35541 | RN06G6A-CAKJXX-10.0M |

Copied
RapidNet 6 Port Category 6A FTP Cassette to Keystone Jack
RapidNet 6 Port Category 6A FTP Cassette to Keystone Jack
HTC Series C6A Keystone Jack (front view).
HTC Series C6A Keystone Jack (side view).
HTC Series C6A Keystone Jack (top view).

    • Exceeds Category 6A performance standards
    • 24 Ports in 1U
    • Factory pre-terminated and tested
    • Ideal solution for 'to the desk' installations
    • Compatible with angled Euro and LJ6C Modules
    • Can fit in both floor boxes and wall boxes
    • Backward compatible with Category 6, Category 5e, Category 5 and Voice
    Package size
    Add to watchlist
    Downloads
    Application CAT6A Factory Terminated Network Cabling Solution
    Colour Violet (VT)
    Local order number RN06G6A-CAKJXX-10.0M
    PART DESCRIPTION RN06G6A-CAKJXX-10.0M
    Package Content 10.0m
    Performance Category Category 6A (Class EA)
    Port count 6
    Product Description The FTP Cassette to Keystone Jack is pre-terminated with 6 FTP Keystone Jacks earthed to a plate within the cassette at one end and 6 Keystone Jacks at the other.
    The 6 port FTP Cassette presents 6 RJ45 ports in one cassette, with 4 cassettes fitting into the standard FTP RapidNet Patch Panel. The cassettes simply push into the panel, snapping in with a releasable clip and a fully loaded panel presents the standard 24 ports in 1U of space.
    The 6 Port RapidNet Cassette to Keystone Jack option gives installers and end users added flexibility at the desk or 'work area' end.
    The Keystone Jack can be easily clipped into a selection of modules that can be fitted into floor boxes or wall mounted in face plates.
    Product Family Cassette to Keystone Jack
    Product Group RapidNet 6 Port Category 6A FTP
    Short Description RapidNet 6 Port Category 6A FTP Cassette to Keystone Jack
    Technical Description The shielded copper solution is designed using F/FTP Category 6A cable which provides 360° shielding and eliminates alien crosstalk. An integral earthing plate grounds each Keystone Jack helping to guarantee 10G performance by giving continuity of the 360° shielding, the earth plate in the cassette then makes contact with the earth points on the RapidNet panel.
    The cassette is manufactured with a simple push clip mechanism and polarising pips to prevent incorrect insertion. Rear cable management is provided within the RapidNet Cassette with integral strain relief which provides protection to all the cables and their terminations.
    All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C Category 6A standards. All RapidNet Category 6A cables are made with LS0H material, complying with the latest European fire ratings.
    NB. Part Number is given for a 10m loom as an example. Lengths are available from 5m to 90m.
    Type RN06G6A-CAKJXX-10.0M
    Depth (D) 130mm
    Height (H) 27mm
    Length (L) 10.0m
    Width (W) 107mm
    Dimensions W x H x D 107 mm x 27 mm x 130 mm
    GTIN-13 / EAN 5022660950377
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
    Pre-terminated Copper and Fibre Cabling RapidNet System Pre-terminated Copper and Fibre Cabling RapidNet System

    RapidNet - Pre-terminated Copper and Fibre Systems

    RapidNet is HellermannTyton’s innovative and fully patented pre‑terminated, pre-tested and pre-labelled ‘plug and play’ cabling system which does not require on-site termination.

    RapidNet ULTRA >
    Pre-terminated Copper and Fibre Cabling RapidNet System Pre-terminated Copper and Fibre Cabling RapidNet System

    RapidNet - Pre-terminated Copper and Fibre Systems

    RapidNet is HellermannTyton’s innovative and fully patented pre‑terminated, pre-tested and pre-labelled ‘plug and play’ cabling system which does not require on-site termination.

    RapidNet CLASSIC >
