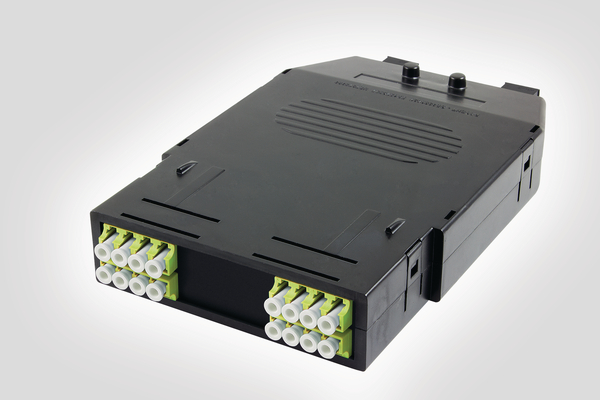

OM5 RapidNet Fibre LC Cassette with 16 Ports and 2 Rear MTP Connectors


Art.-No. 859-23199

| RNFTQ16-LCMMM5-XX.XX

 |

Copied
RapidNet 8 Fibre LC Cassette with 2 MTP Connector on Rear
RapidNet LC 16 port fibre cassette with 2 rear MTP connectors
RapidNet LC 16 port fibre cassette with 2 rear MTP connectors
RapidNet LC 16 port fibre cassette with 2 rear MTP connectors
RapidNet LC 16 Fibre Cassette

    • 64 fibres in 1U of Space
    • Significantly reduced installation times
    • Available in OM4 and OM5
    • Interchangeable with other RapidNet Cassettes
    • MTP rear connector ideal for installations in areas of limited space
    • Pre-tested with test results supplied
    • Male MTP Connectors
    Add to watchlist
    Colour Light Green (LTGN)
    Connector Colour Light Green (LTGN)
    Connector Type LC
    PART DESCRIPTION RNFTQ16-LCMMM5-XX.XX
    Performance Category OM5 Multimode
    Port count 16
    Product Description The RapidNet 8 Fibre LC Cassette with MTP connectivity is pre-terminated offering 16 ports in one cassette and has 2 MTP connectors on the rear of the case for use with MTP back bone cables or fibre fan outs. The RapidNet LC Cassette with MTP connectivity solution has been designed to make installation quicker and easier, especially where space is limited, by providing reduced installation times, efficient use of space, flexible configurations and high performance.
    Product Family Cassette with 2 Rear MTP Connectors
    Product Group RapidNet Fibre LC
    Short Description OM5 RapidNet Fibre LC Cassette with 16 Ports and 2 Rear MTP Connectors
    Type RNFTQ16-LCMMM5-XX.XX

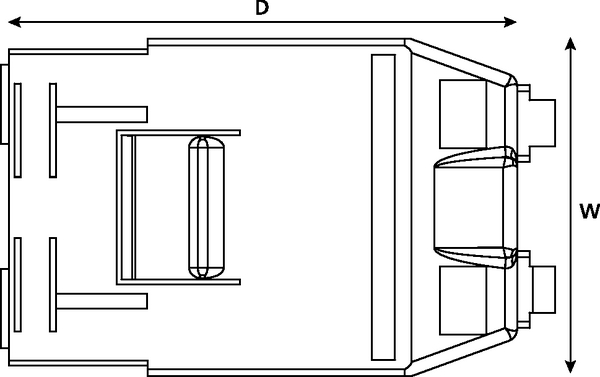

    Depth (D) 130mm

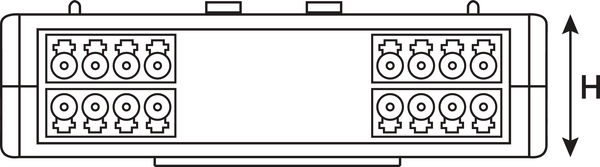

    Height (H) 27mm
    Width (W) 102mm
    Optical Performance Multimode
    Country of Origin GB
    Dimensions W x H x D 102 mm x 27 mm x 130 mm
    GTIN-13 / EAN 5022660160455
    ETIM 7.0 Key EC000034
    ETIM 8.0 Key EC000034
    ETIM 9.0 Key EC000034
